ID
1351319
$ 35.93
1-2 weeks delivery time
Type:
- 240–33 Ohm
- 0–190 Ohm
- 240-33/0-190 Ohm Selectable
Item:
- Black Dial & Black Bezel
- White Dial & Glossy Bezel
The Osculati Fresh Water Level Gauges are marine dashboard instruments designed to monitor fresh water tank levels using 240–33 Ohm, 0–190 Ohm, or selectable 240–33 / 0–190 Ohm senders. The gauges operate on 12V or 24V electrical systems and feature red and yellow backlit dials for clear visibility. The series includes variants with black or white dial options combined with black or glossy bezel finishes. All instruments have standard marine installation dimensions with a 57 mm outer diameter, 51 mm panel cut-out, and 45 mm installation depth.
- Description
- Ask a Question
-

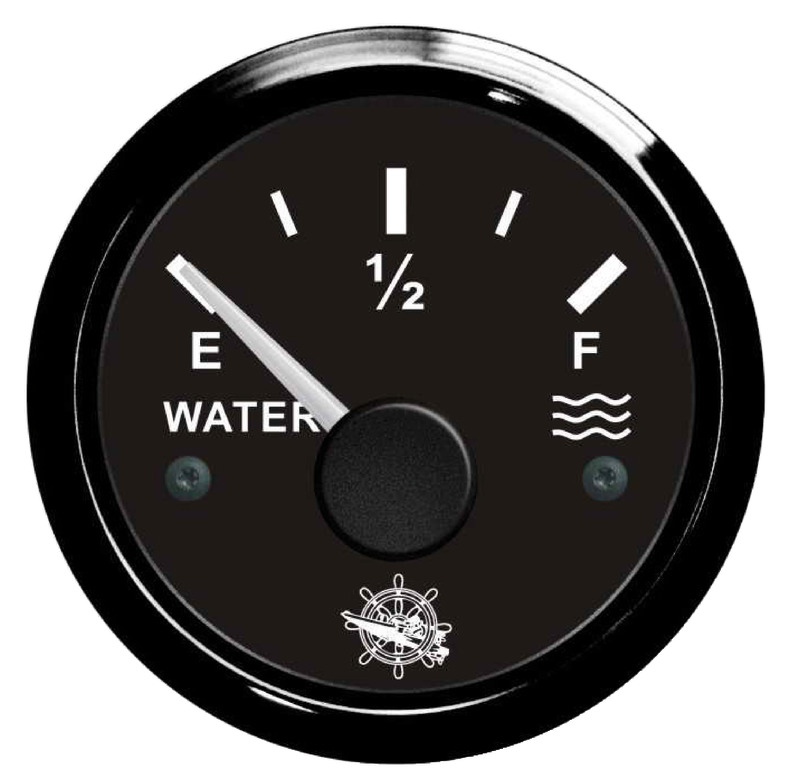

Osculati Fresh Water Level Gauges – 240–33 Ohm / 0–190 Ohm Marine Tank Gauge 12/24V, Ø57 mm
The Osculati Fresh Water Level Gauges are marine instruments designed to monitor the level of fresh water tanks onboard boats and marine vessels. These gauges are compatible with different sender resistance standards including 240–33 Ohm, 0–190 Ohm, and selectable 240–33 / 0–190 Ohm versions.
The instruments operate on 12V or 24V electrical systems and feature analog displays with red and yellow dial backlighting to ensure good readability during night navigation or in low-light conditions. The series includes several dial and bezel combinations designed to match different dashboard layouts while maintaining the same compact marine instrument size.
Key Features
- Fresh water tank level gauges for marine applications
- Compatible with 240–33 Ohm senders
- Compatible with 0–190 Ohm senders
- Selectable 240–33 / 0–190 Ohm version available
- Suitable for 12V and 24V electrical systems
- Red and yellow backlit dial
- Black or white dial options
- Black or glossy bezel finishes
- Standard Ø57 mm marine dashboard installation
Available Variants
Item Dial / Bezel Sender Signal Voltage Instrument Ø Hole Ø Depth (P) 27.320.03 Black dial, black bezel 240–33 Ω 12 / 24 V 57 mm 51 mm 45 mm 27.320.29 Black dial, black bezel 0–190 Ω 12 / 24 V 57 mm 51 mm 45 mm 27.320.04 Black dial, black bezel 240–33 / 0–190 Ω selectable 12 / 24 V 57 mm 51 mm 45 mm 27.321.03 Black dial, glossy bezel 240–33 Ω 12 / 24 V 57 mm 51 mm 45 mm 27.321.29 Black dial, glossy bezel 0–190 Ω 12 / 24 V 57 mm 51 mm 45 mm 27.321.04 Black dial, glossy bezel 240–33 / 0–190 Ω selectable 12 / 24 V 57 mm 51 mm 45 mm 27.322.03 White dial, glossy bezel 240–33 Ω 12 / 24 V 57 mm 51 mm 45 mm 27.322.29 White dial, glossy bezel 0–190 Ω 12 / 24 V 57 mm 51 mm 45 mm 27.322.04 White dial, glossy bezel 240–33 / 0–190 Ω selectable 12 / 24 V 57 mm 51 mm 45 mm
Installation Dimensions
- Instrument diameter: 57 mm
- Panel hole diameter: 51 mm
- Installation depth (P): 45 mm
-
