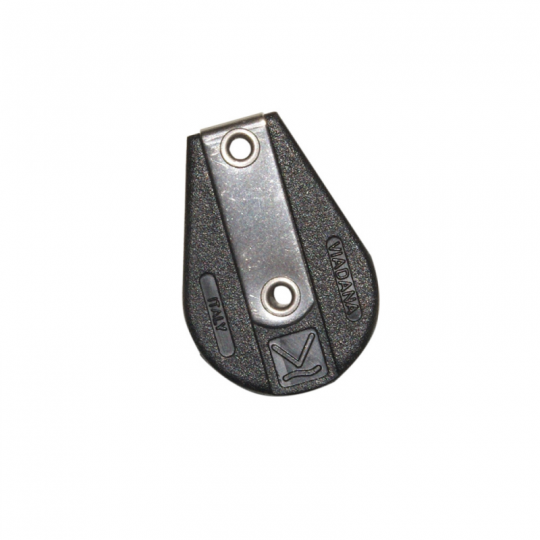

Viadana Wind Speed Ball Bearing Single Footblock for Rope up to 8-12 mm

ID 1391241

$ 34.71

1-2 weeks delivery time

Diameter, mm:

Viadana Wind Speed Ball Bearing Single Footblocks are designed for deck-mounted sailing and marine rigging applications requiring a compact single-sheave block with smooth ball-bearing operation. The range combines reinforced black nylon construction with stainless steel components and is available for ropes up to 8, 10 and 12 mm with 34, 45 and 56 mm sheaves. Breaking loads range from 800 to 1450 kg and working loads from 300 to 580 kg. Corresponding Viadana articles are 89.65, 90.66 and 91.63.

Description
Ask a Question

Viadana Wind Speed Ball Bearing Single Footblocks for Rope up to 8-12 mm, 34-56 mm Sheaves - Osculati 55.074.08 / 55.074.10 / 55.074.12

Viadana Wind Speed Ball Bearing Single Footblocks are designed for sailing and marine rigging systems where a compact deck-mounted single block is required to guide and redirect control lines. The footblock configuration allows the block to be installed directly on a suitable mounting surface while maintaining a controlled rope path.

The blocks belong to the Viadana Wind Speed range and combine reinforced black nylon construction with stainless steel components. The sheave runs on ball bearings to provide smooth rope movement and efficient operation during repeated trimming and load changes. Three sizes are available to suit different rope diameters and rigging requirements.

The 8 mm version uses a 34 mm sheave, the 10 mm version uses a 45 mm sheave and the 12 mm version uses a 56 mm sheave. Breaking loads range from 800 to 1450 kg, while working loads range from 300 to 580 kg. Viadana articles 89.65, 90.66 and 91.63 correspond to Osculati codes 55.074.08, 55.074.10 and 55.074.12 respectively.

Product Features

Brand: Viadana
Series: Wind Speed
Product type: Single footblock
Configuration: Single sheave
Mounting type: Footblock / surface-mounted block
Body: Reinforced black nylon
Metal components: Stainless steel
Bearing type: Ball bearings
Available rope capacities: Up to 8, 10 or 12 mm
Available sheave diameters: 34, 45 or 56 mm
Breaking load range: 800-1450 kg
Working load range: 300-580 kg

Available Variants

Max. Rope Diameter	Sheave Diameter	Breaking Load	Working Load	Viadana Article	Osculati Code	FNI Product Number
8 mm	34 mm	800 kg	300 kg	89.65	55.074.08	7878048
10 mm	45 mm	950 kg	370 kg	90.66	55.074.10	7878049
12 mm	56 mm	1450 kg	580 kg	91.63	55.074.12	7878050
