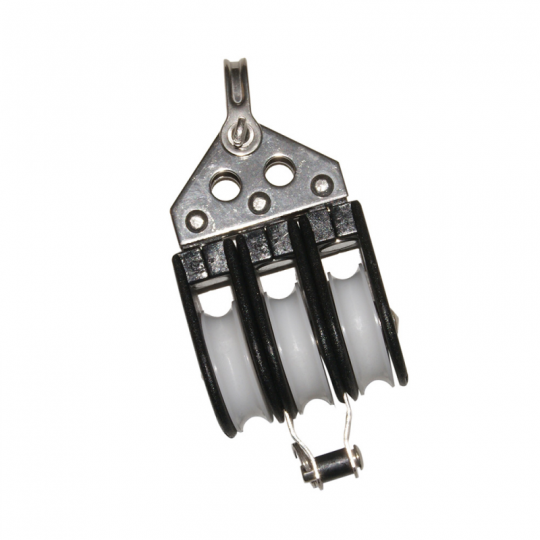

Viadana Wind Speed Ball Bearing Triple Block with Becket and Fixed Head for Rope up to 10-12 mm

ID 1391268

$ 111.35

1-2 weeks delivery time

Diameter, mm:

Viadana Wind Speed Ball Bearing Triple Blocks with Becket and Fixed Head are designed for multi-part sailing and marine rigging systems requiring three sheaves together with an additional becket attachment point. The range covers ropes from 8 to 12 mm and combines reinforced black nylon construction, stainless steel components and ball-bearing operation for smooth rope handling.

Description
Ask a Question

Viadana Wind Speed Ball Bearing Triple Blocks with Becket and Fixed Head for Rope up to 8-12 mm - Osculati 55.085.10 / 55.085.12

Viadana Wind Speed Ball Bearing Triple Blocks with Becket and Fixed Head are designed for sailing and marine rigging systems requiring a compact three-sheave arrangement with an additional becket attachment point. This configuration is suitable for multi-part rope systems where several rope passes and an attachment point for the standing end of the line are required.

The blocks belong to the Viadana Wind Speed range and combine reinforced black nylon construction with stainless steel components. The sheaves operate on ball bearings to support smooth rope movement during trimming and repeated load changes, while the fixed-head design keeps the block in a stable orientation within the rigging system.

The range covers rope capacities from 8 to 12 mm. Available models include Viadana article 89.64 for the 8 mm configuration and Viadana article 91.62 for the 12 mm configuration. Osculati versions include 55.085.10 for ropes up to 10 mm with a 45 mm sheave and 55.085.12 for ropes up to 12 mm with a 56 mm sheave.

Product Features

Brand: Viadana
Series: Wind Speed
Product type: Triple ball bearing block with becket
Head type: Fixed head
Configuration: Three sheaves with becket
Body: Reinforced black nylon
Metal components: Stainless steel
Bearing type: Ball bearings
Rope capacity range: 8-12 mm
Available sheave diameters: 45-56 mm for specified Osculati variants
Working load range: 150-580 kg across supplied references
Breaking load range: 750-1450 kg across supplied references

Available Variants

Max. Rope Diameter	Sheave Diameter	Working Load	Breaking Load	Viadana Article	Osculati Code	FNI Product Number
8 mm	-	150 kg	750 kg	89.64	-	7878045
10 mm	45 mm	370 kg	950 kg	-	55.085.10	-
12 mm	56 mm	580 kg	1450 kg	91.62	55.085.12	7878047
