ID
1391248
$ 60.02
1-2 weeks delivery time
Diameter, mm:
- 8
- 10
- 12
Viadana Wind Speed Double Fiddle Block combines two violin-style pulleys with a universal head and clamping device. Available for ropes up to 8-12 mm with 34-56 mm sheaves; the 10 and 12 mm variants feature ball bearing cleats.
- Description
- Ask a Question
-

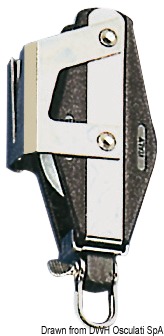

Viadana Wind Speed Ball Bearing Double Fiddle Block with Clamcleat and Universal Head for Rope up to 8-12 mm
Viadana Wind Speed double fiddle block features two violin-style pulleys, a universal head and clamping device. The reinforced block construction combines black nylon and stainless steel.
Available Variants
Max. Rope Diameter Sheave Diameter Breaking Load Working Load Cleat Osculati Code 8 mm 34 mm 800 kg 300 kg Standard 55.077.08 10 mm 45 mm 950 kg 370 kg Ball bearing 55.077.10 12 mm 56 mm 1450 kg 580 kg Ball bearing 55.077.12 -
