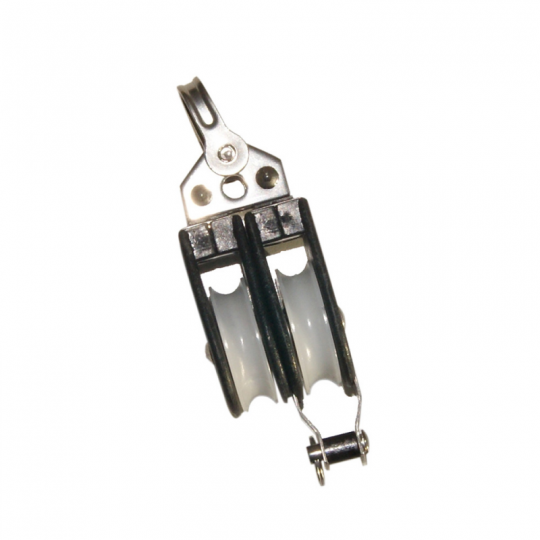

Viadana Wind Speed Ball Bearing Double Block with Becket and Fixed Head for Rope up to 8-12 mm

ID 1391237

$ 76.03

1-2 weeks delivery time

Diameter, mm:

Viadana Wind Speed Ball Bearing Double Blocks with Becket and Fixed Head are designed for sailing and marine rigging systems requiring a compact two-sheave block with an additional becket attachment point. The reinforced black nylon construction, stainless steel components and ball-bearing sheaves provide smooth rope movement and reliable operation under load. Available for ropes up to 8, 10 and 12 mm with 34, 45 and 56 mm sheaves, the range offers breaking loads from 800 to 1450 kg and working loads from 300 to 580 kg. Corresponding Viadana articles are 89.62, 90.63 and 91.60.

Description
Ask a Question

Viadana Wind Speed Ball Bearing Double Blocks with Becket and Fixed Head for Rope up to 8-12 mm, 34-56 mm Sheaves - Osculati 55.073.08 / 55.073.10 / 55.073.12

Viadana Wind Speed Ball Bearing Double Blocks with Becket and Fixed Head are designed for sailing and marine rigging applications where a two-sheave block with a stable fixed attachment and an additional becket is required. The double-sheave configuration is suitable for multi-part rope systems, while the becket provides an extra attachment point for the standing end of the line.

The blocks are manufactured from reinforced black nylon and incorporate stainless steel components for durable marine use. Their sheaves run on ball bearings to support smooth rope movement and efficient operation during trimming and repeated load changes. The fixed head keeps the block orientation stable within the rigging arrangement.

Three sizes are available for ropes up to 8, 10 and 12 mm, with corresponding sheave diameters of 34, 45 and 56 mm. Breaking loads range from 800 to 1450 kg and working loads from 300 to 580 kg. Viadana articles 89.62, 90.63 and 91.60 correspond to Osculati codes 55.073.08, 55.073.10 and 55.073.12 respectively.

Product Features

Brand: Viadana
Series: Wind Speed
Product type: Double ball bearing block with becket
Head type: Fixed head
Configuration: Two sheaves with becket
Body: Reinforced black nylon
Metal components: Stainless steel
Bearing type: Ball bearings
Available rope capacities: Up to 8, 10 or 12 mm
Available sheave diameters: 34, 45 or 56 mm
Breaking load range: 800-1450 kg
Working load range: 300-580 kg

Available Variants

Max. Rope Diameter	Sheave Diameter	Breaking Load	Working Load	Viadana Article	Osculati Code	FNI Product Number
8 mm	34 mm	800 kg	300 kg	89.62	55.073.08	7878039
10 mm	45 mm	950 kg	370 kg	90.63	55.073.10	7878040
12 mm	56 mm	1450 kg	580 kg	91.60	55.073.12	7878041
