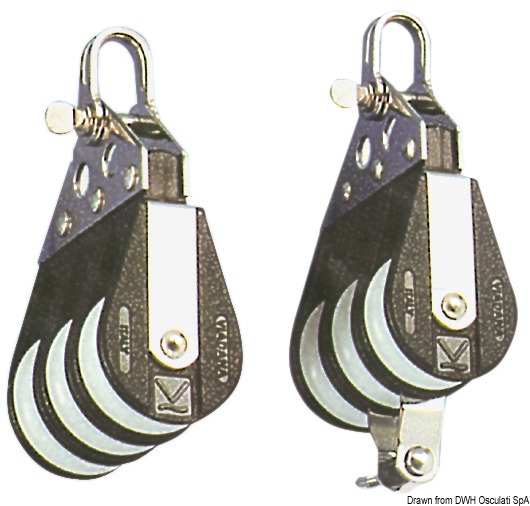

Viadana Wind Speed Ball Bearing Triple Block with Fixed Head for Rope up to 8-12 mm

ID 1391264

$ 107.49

1-2 weeks delivery time

Diameter, mm:

Viadana Wind Speed Ball Bearing Triple Blocks with Fixed Head are designed for sailing and marine rigging systems that require a compact three-sheave block with a stable fixed attachment. The blocks combine reinforced black nylon construction with stainless steel components and ball-bearing sheaves for smooth rope movement. Available for ropes up to 8, 10 and 12 mm with 34, 45 and 56 mm sheaves, the range offers breaking loads from 800 to 1450 kg and working loads from 300 to 580 kg. Corresponding Viadana articles are 89.63, 90.64 and 91.61.

Description
Ask a Question

Viadana Wind Speed Ball Bearing Triple Blocks with Fixed Head for Rope up to 8-12 mm, 34-56 mm Sheaves - Osculati 55.084.08 / 55.084.10 / 55.084.12

Viadana Wind Speed Ball Bearing Triple Blocks with Fixed Head are designed for sailing and marine rigging systems where a three-sheave block is required for multi-part rope arrangements. The triple-sheave configuration allows several rope passes to be incorporated into a compact assembly, while the fixed head keeps the block in a stable orientation within the rigging system.

The blocks are made of reinforced black nylon and incorporate stainless steel components for durable marine use. Their sheaves run on ball bearings to support smooth rope movement and efficient operation during repeated trimming and load changes. The range is available in three sizes, allowing the block to be matched to different rope diameters and load requirements.

The 8 mm version uses 34 mm sheaves, the 10 mm version uses 45 mm sheaves and the 12 mm version uses 56 mm sheaves. Breaking loads range from 800 to 1450 kg, while working loads range from 300 to 580 kg. Viadana articles 89.63, 90.64 and 91.61 correspond to Osculati codes 55.084.08, 55.084.10 and 55.084.12 respectively.

Product Features

Brand: Viadana
Series: Wind Speed
Product type: Triple ball bearing block
Head type: Fixed head
Configuration: Three sheaves
Body: Reinforced black nylon
Metal components: Stainless steel
Bearing type: Ball bearings
Available rope capacities: Up to 8, 10 or 12 mm
Available sheave diameters: 34, 45 or 56 mm
Breaking load range: 800-1450 kg
Working load range: 300-580 kg

Available Variants

Max. Rope Diameter	Sheave Diameter	Breaking Load	Working Load	Viadana Article	Osculati Code	FNI Product Number
8 mm	34 mm	800 kg	300 kg	89.63	55.084.08	7878042
10 mm	45 mm	950 kg	370 kg	90.64	55.084.10	7878043
12 mm	56 mm	1450 kg	580 kg	91.61	55.084.12	7878044
