ID
1304400
$ 10.86
1-2 weeks delivery time
-
+
The Wichard 1401 is a 4 mm captive pin D-shackle forged in 316L stainless steel, with a pin that stays attached during use, providing vibration resistance, single-handed operation, and CE-marked safety for industrial and standard shackle applications.
- Description
- Ask a Question
-

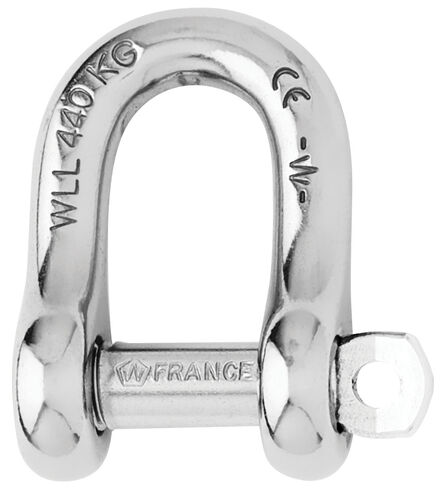

Wichard 1401 - Captive Pin D-Shackle 4 mm
Compact and efficient, this 4 mm captive pin D-shackle is forged from 316L stainless steel. The pin stays connected to the body even when opened, preventing loss and ensuring safe operation. Designed for vibration resistance and single-handed use, it is CE marked and suited for industrial lifting or standard shackle applications.
- Material: 316 stainless steel grade
- Working load (kg): 320
- WLL (kg): 200
- Breaking load (kg): 1000
- Weight (g): 9

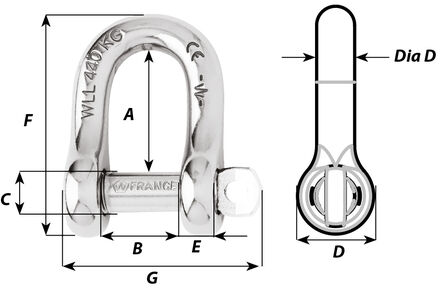

- A (mm): 13
- B (mm): 8
- C (mm): 5
- D (mm): 9
- D diameter (mm): 4
- E (mm): 4
- F (mm): 24
- G (mm): 22
- Item number: WR1401
-
