Clamcleat CL819 is a polypropylene tapered mounting pad supplied with a backplate for Mk2 Junior cleats. A single pad angles the cleat by 10°, while two pads can be stacked to create a 20° angle or reversed to form an approximately 11 mm riser. It is compatible with CL211 Mk2, CL211 Mk2/S2, CL217 Mk2, CL218 Mk2 and CL272 Mk2 Junior cleats, and can also be used with the CL815 Keeper and CL817 Cage.
- Description
- Ask a Question
-
Clamcleat CL819 Tapered Pad with Backplate for Mk2 Junior Cleats, 10° Angle

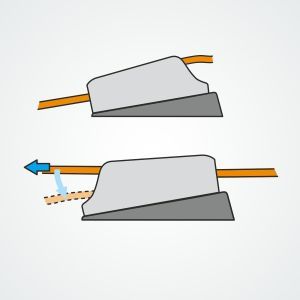

Clamcleat CL819 is a tapered mounting pad designed to improve rope and cleating alignment for Mk2 Junior cleats.

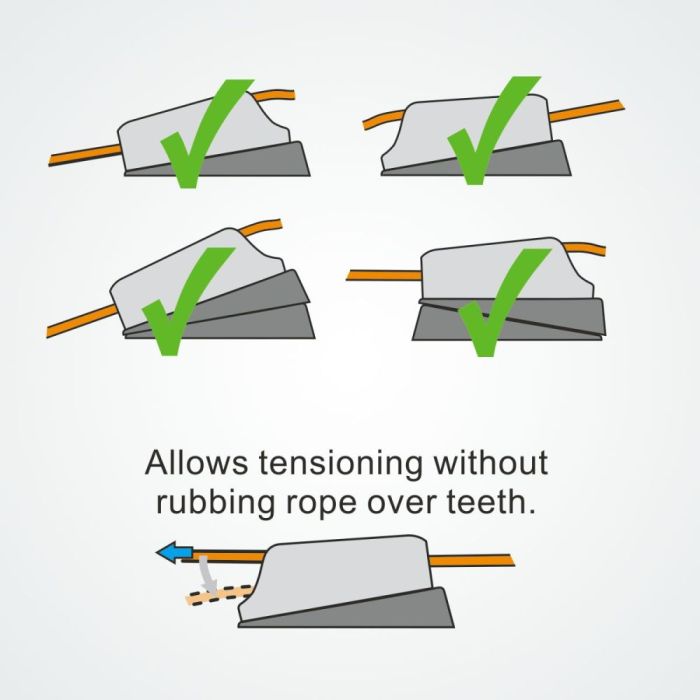

A single pad angles the cleat by 10°. Two pads can be stacked in the same direction to increase the angle to 20°, or reversed and stacked to create a riser that lifts the cleat by approximately 11 mm.

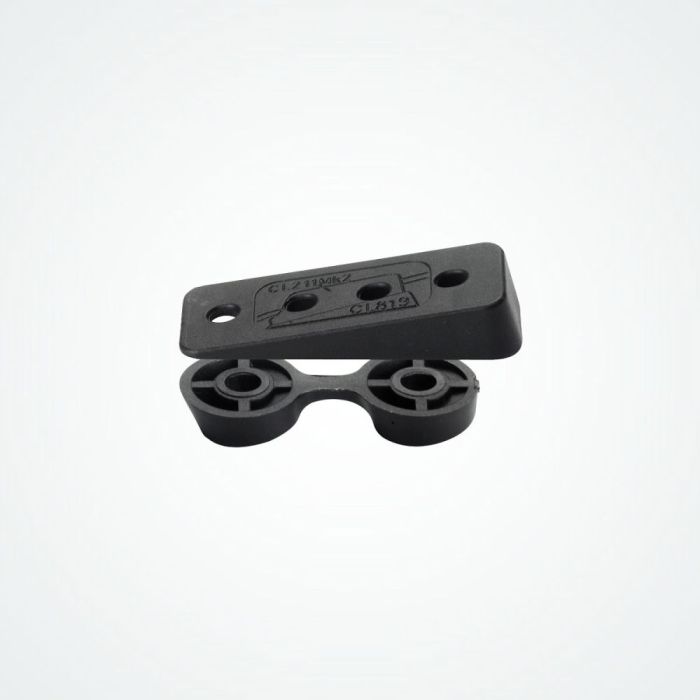

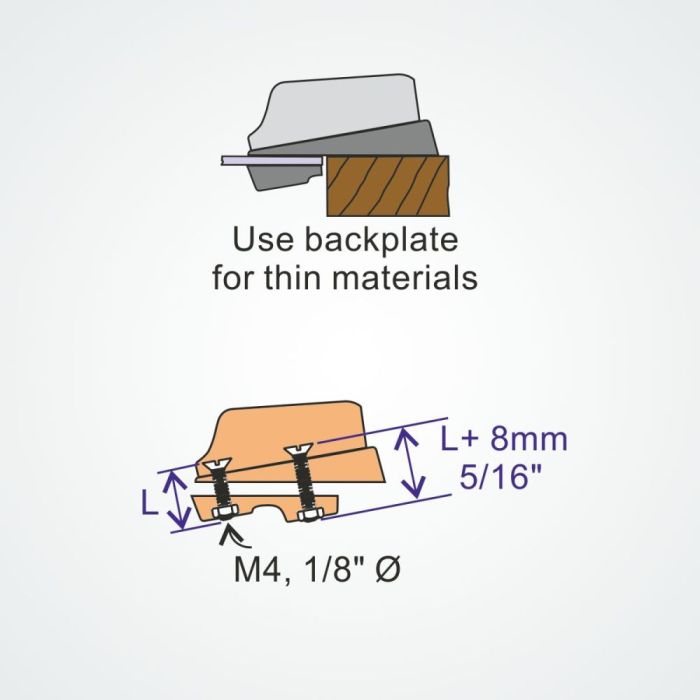

Each CL819 is supplied with a backplate that provides additional support when the cleat is bolted through thin sections.

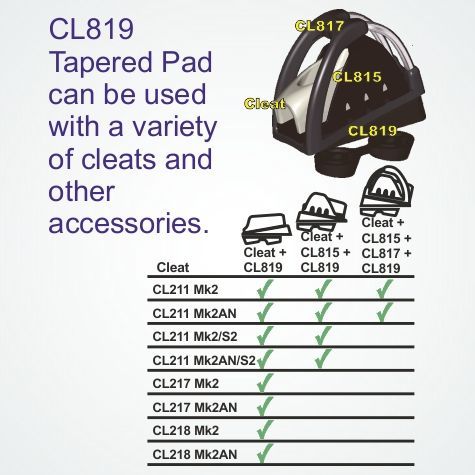

The pad is compatible with CL211 Mk2 Aluminium Racing Junior, CL211 Mk2/S2 with Becket, CL217 Mk2 Starboard, CL218 Mk2 Port and CL272 Nylon Mk2 Junior cleats. The CL815 Keeper can also be fitted to the CL819, while the CL817 Cage can be added for cleating at more extreme angles.
Product Features
- Brand: Clamcleat
- Model: CL819
- Product type: Tapered mounting pad with backplate
- Material: Polypropylene
- Single-pad angle: 10°
- Two pads can be stacked for a 20° angle
- Can be reversed and stacked as an approximately 11 mm riser
- Supplied with backplate
- Provides additional support through thin mounting sections
- Designed to improve rope and cleating alignment
- Compatible with multiple Mk2 Junior cleats
- Compatible with CL815 Keeper
- Compatible with CL817 Cage
Technical Specifications

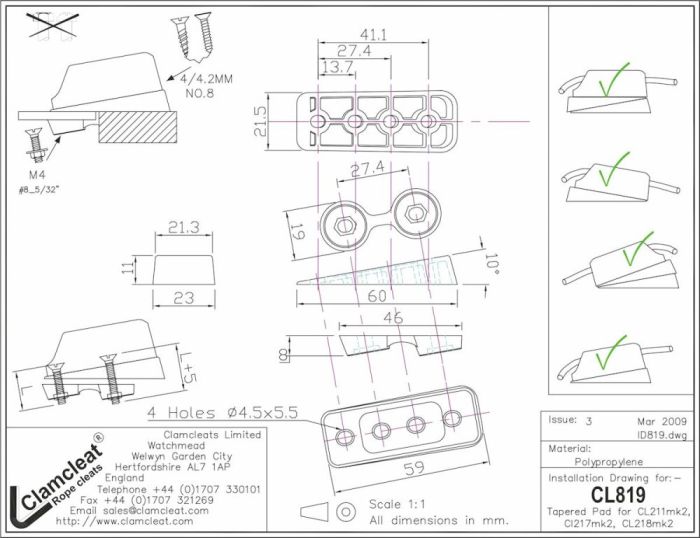

Parameter Specification Model CL819 Product Type Tapered mounting pad with backplate Material Polypropylene Hole Centres 27 mm Length 59 mm Width 22 mm Height 11 mm Single-Pad Angle 10° Double-Stack Angle 20° Riser Height Approx. 11 mm Bolt Size M4 Screw Size 4.2 mm / No. 8 Weight Approx. 8 g
Compatible Cleats
- CL211 Mk2 Aluminium Racing Junior
- CL211 Mk2/S2 Aluminium Racing Junior with Becket
- CL217 Mk2 Racing Junior, Starboard
- CL218 Mk2 Racing Junior, Port
- CL272 Nylon Mk2 Junior
-
