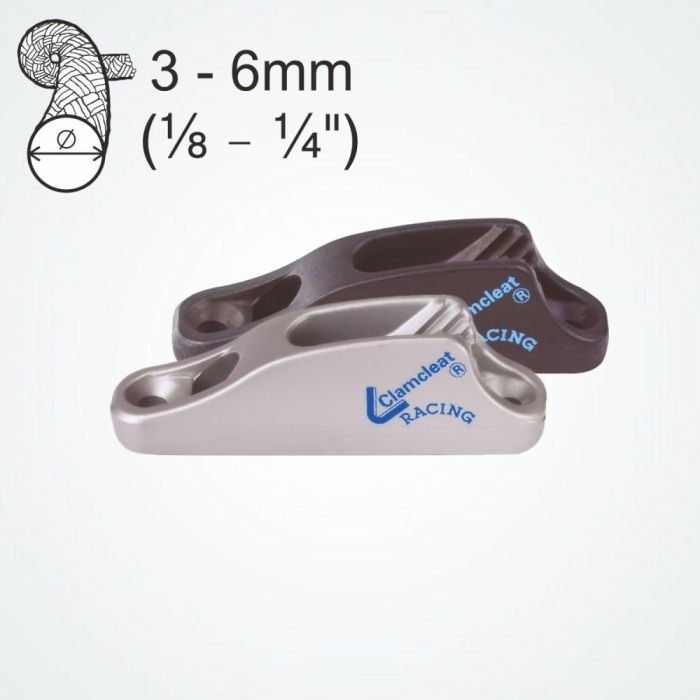

Clamcleat CL702 Aluminium Boom Cleats for 3–6 mm Rope and 29–32 mm Tubes

ID 1395044

$ 13.56

1-2 weeks delivery time

Color:

Silver
Hard Anodised

Clamcleat CL702 aluminium boom cleats are designed for 3–6 mm (1/8–1/4") ropes and tubes with a diameter of 29–32 mm (1 1/8–1 1/4"). Their curved base allows direct mounting to round tubes using screws or rivets. The range is available in silver stove-enamel or hard-anodised finishes and is suitable for boom and spar applications where a compact rope cleat is required.

Description
Ask a Question

Clamcleat CL702 Aluminium Boom Cleats for 3–6 mm Rope and 29–32 mm Tubes, Silver or Hard Anodised

Clamcleat CL702 is a lightweight aluminium boom cleat designed for ropes from 3 to 6 mm (1/8–1/4") and round tubes with a diameter of 29–32 mm (1 1/8–1 1/4").

The specially curved base allows the cleat to fit directly onto compatible tubes and spars. It can be installed using screws or rivets, providing a compact rope-control solution for boom and rigging applications.

The CL702 is manufactured from aluminium and is available in two finishes. CL702 has a silver stove-enamel coating, while CL702AN has a hard-anodised finish for a harder-wearing surface.

For best performance, 16-plait rope is recommended. Waxing the rope can help reduce sand-related wear, while heat-shrink tubing or electrical tape can be used around potential snag points in the installation.

Product Features

Brand: Clamcleat
Series: Aluminium Boom Cleat
Models: CL702 and CL702AN
Product type: Curved-base aluminium rope cleat
Material: Aluminium
Rope diameter: 3–6 mm (1/8–1/4")
Suitable tube diameter: 29–32 mm (1 1/8–1 1/4")
Curved base for direct mounting to round tubes
Can be mounted with screws or rivets
Suitable for booms, spars and other tubular rigging applications
16-plait rope recommended
Available in silver stove-enamel or hard-anodised finish

Technical Specifications

Parameter	Specification
Rope Diameter	3–6 mm (1/8–1/4")
Tube Diameter	29–32 mm (1 1/8–1 1/4")
Material	Aluminium
Hole Centres	66 mm
Length	82 mm
Width	18 mm
Height	25 mm
Bolt Size	M5
Screw Size	4.8 mm / No. 10
Weight	Approx. 36 g
Recommended Rope	16-plait rope

Available Variants

Model	Finish	Rope Diameter	Tube Diameter
CL702	Silver stove enamel	3–6 mm	29–32 mm
CL702AN	Hard anodised	3–6 mm	29–32 mm

Installation Notes

Waxing the rope can help protect it from sand-related wear.
Use heat-shrink tubing or electrical tape where necessary to cover potential snag points.
