ID
1395034
$ 23.67
1-2 weeks delivery time
-
+

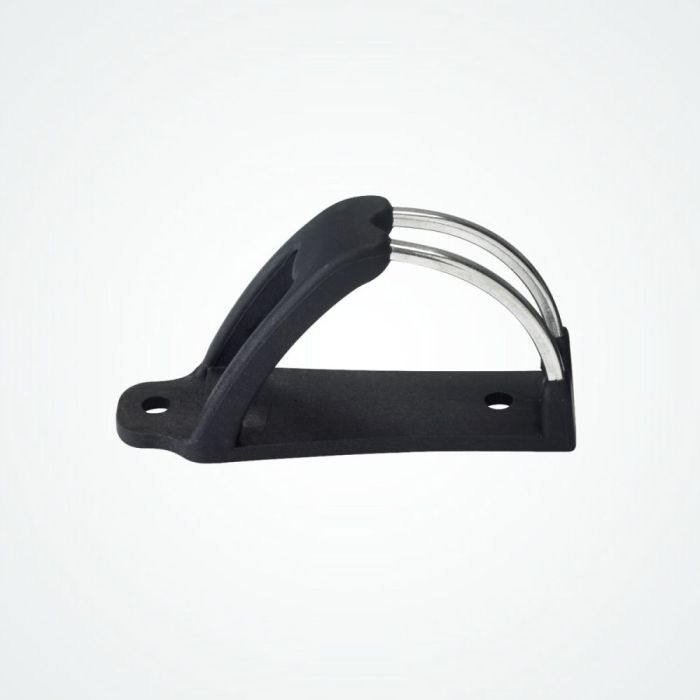

Clamcleat CL816 is a nylon and stainless steel cage designed for use with the CL814 Keeper and compatible Mk1 Junior cleats. It guides 3–6 mm (1/8–1/4") rope smoothly into the cleat teeth and allows cleating or uncleating at angles up to approximately 70°, giving the crew more freedom to adjust control lines from different positions. The stainless steel rear fairlead provides durable rope guidance under demanding sailing conditions.
- Description
- Ask a Question
-
Clamcleat CL816 Cage for CL814 Keeper & Mk1 Junior Cleats, 3–6 mm Rope
Clamcleat CL816 Cage is an accessory designed to improve rope guidance and angled operation when used with the CL814 Keeper and compatible Mk1 Junior cleats.

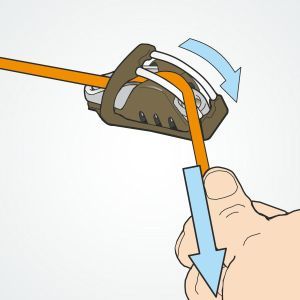

The cage allows a rope to be cleated or released at angles of up to approximately 70° from the normal line of pull. This enables control lines to be adjusted from different crew positions while maintaining reliable rope guidance into the cleat teeth.

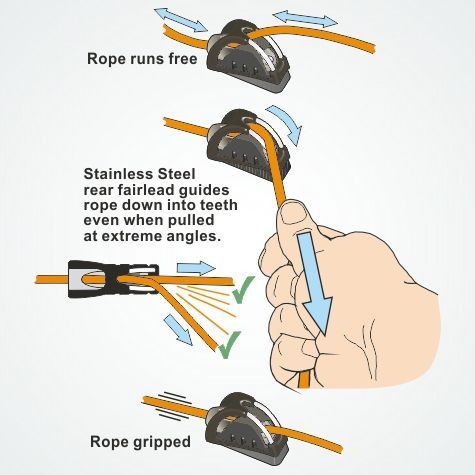

A stainless steel rear fairlead guides the rope through the cage and provides durable performance under racing and other demanding sailing conditions.

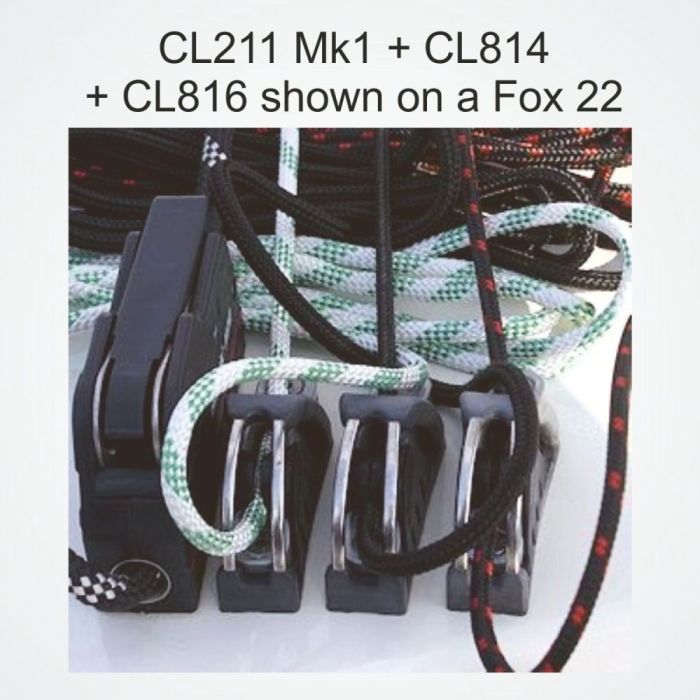

The CL816 is designed for 3–6 mm (1/8–1/4") rope and is compatible with CL203 Nylon Junior, CL236 Alloy Roller Fairlead Mk1 and CL211 Mk1 Alloy Racing Junior cleats when used with the CL814 Keeper.
Product Features
- Brand: Clamcleat
- Model: CL816
- Product type: Cleat cage / rope guide
- Material: Nylon and stainless steel
- Rope diameter: 3–6 mm (1/8–1/4")
- Allows cleating and uncleating at angles up to approximately 70°
- Guides rope smoothly into the cleat teeth
- Stainless steel rear fairlead
- Designed for use with CL814 Keeper
- Suitable for control lines adjusted from different positions
- Suitable for racing and demanding sailing applications

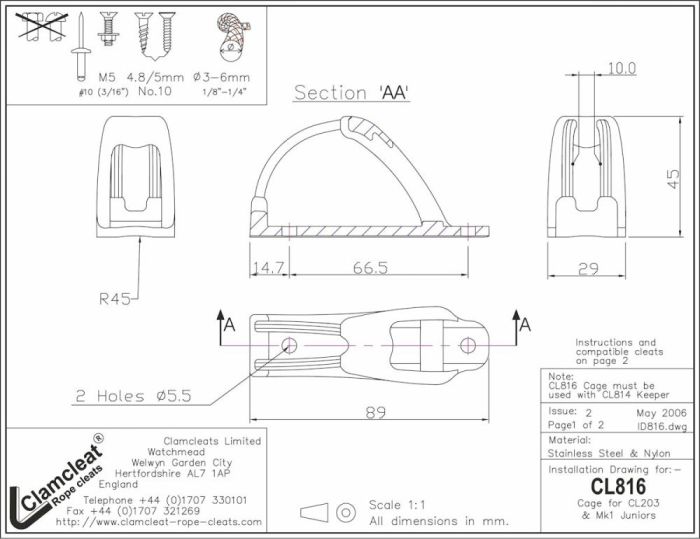

Technical Specifications
Parameter Specification Model CL816 Product Type Cage / rope guide Rope Diameter 3–6 mm (1/8–1/4") Material Nylon & Stainless Steel Hole Centres 66 mm Length 89 mm Width 28 mm Height 45 mm Bolt Size M5 Screw Size 4.8 mm / No. 10 Weight Approx. 31 g Maximum Cleating Angle Approx. 70°
Compatible Cleats
- CL203 Nylon Junior
- CL236 Alloy Roller Fairlead Mk1
- CL211 Mk1 Alloy Racing Junior
Compatible Accessories
- CL814 Keeper
- CL818 Tapered Pad for angled mounting and rope alignment
-
