ID
1395047
$ 13.56
1-2 weeks delivery time
Color:
- Silver
- Hard Anodised
Clamcleat CL704 Racing Junior Mk1 cleats are aluminium cleats with an integrated becket for 3–6 mm (1/8–1/4") rope. The becket secures the rope end beneath the cleat, allowing a 2:1 purchase without an additional fixing point, and can also hold shockcord or bungee. Suitable for decks, masts, booms and curved surfaces, the range is available with silver stove-enamel or hard-anodised finishes.
- Description
- Ask a Question
-
Clamcleat CL704 Racing Junior Mk1 Cleats with Becket for 3–6 mm Rope, Silver or Hard Anodised

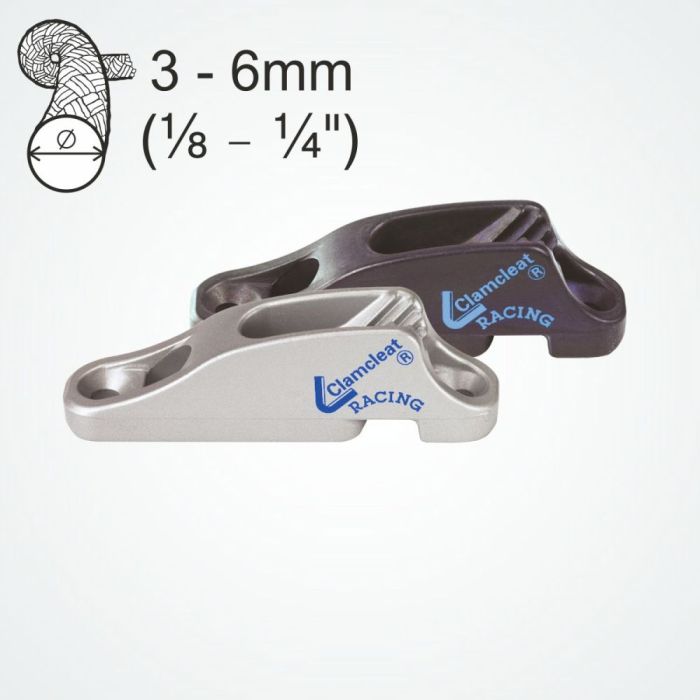

Clamcleat CL704 Racing Junior Mk1 is an aluminium rope cleat with an integrated becket, designed for ropes from 3 to 6 mm (1/8–1/4").
The becket holds the end of the rope underneath the cleat, allowing a 2:1 purchase to be rigged without an additional fixing point. Alternatively, the becket can be used to secure shockcord or bungee.
The cleat is suitable for decks, masts, booms and curved surfaces and is particularly useful for Cunningham adjustment and other sailing control-line applications.
The range is available in two finishes: CL704 with a silver stove-enamel finish and CL704AN with a hard-anodised finish for a harder-wearing surface.
Product Features
- Brand: Clamcleat
- Series: Racing Junior Mk1 with Becket
- Models: CL704 and CL704AN
- Product type: Aluminium rope cleat with integrated becket
- Material: Aluminium
- Rope diameter: 3–6 mm (1/8–1/4")
- Integrated becket secures the rope end
- Allows 2:1 rigging without an additional fixing point
- Can hold shockcord or bungee
- Suitable for decks, masts, booms and curved surfaces
- Suitable for Cunningham adjustment
- Available in silver stove-enamel or hard-anodised finish
Technical Specifications
Parameter Specification Rope Diameter 3–6 mm (1/8–1/4") Material Aluminium Hole Centres 66 mm Length 82 mm Width 18 mm Height 24 mm Bolt Size M5 Screw Size 4.8 mm / No. 10 Weight Approx. 34 g Rigging Advantage 2:1 via integrated becket
Available Variants
Model Finish Rope Diameter CL704 Silver stove enamel 3–6 mm CL704AN Hard anodised 3–6 mm
Compatible Accessories
- CL818 Tapered Pad for angled mounting and improved rope alignment
- PT422823 insulators for isolation between aluminium cleats and carbon spars
Installation Note
When fitting the cleat to a boom, use a suitable sealant between the cleat and boom to help prevent corrosion.
-
