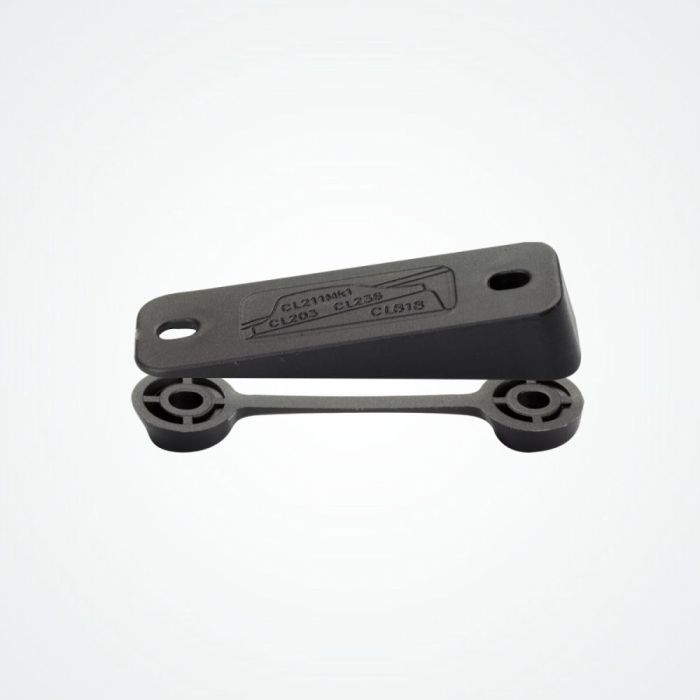

Clamcleat CL818 is a polypropylene tapered mounting pad designed to improve rope and cleating alignment for CL203 and Mk1 Junior cleats. A single pad angles the cleat by 10°, while two pads can be stacked for a 20° angle or reversed to form an approximately 15 mm riser. Each pad is supplied with a backplate for reinforcement when bolting through thin sections.
- Description
- Ask a Question
-
Clamcleat CL818 Tapered Pad with Backplate for CL203 & Mk1 Junior Cleats, 10° Angle
Clamcleat CL818 is a tapered mounting pad designed to improve rope alignment with compatible CL203 and Mk1 Junior cleats.

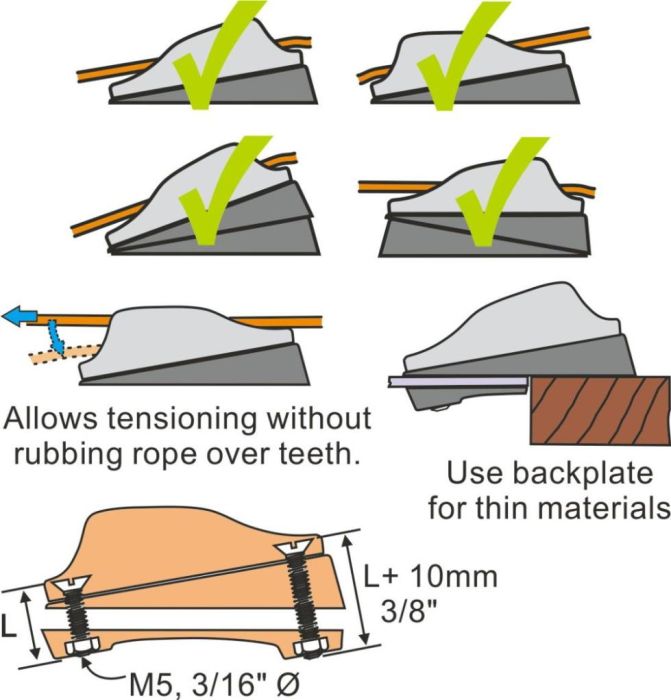

The pad can be mounted in either direction to suit the required rope angle. A single CL818 angles the cleat by 10°, while two pads can be stacked in the same direction to create a 20° angle.
Two pads can also be reversed and stacked to form a riser that lifts the cleat by approximately 15 mm. Each CL818 is supplied with a backplate that provides additional support when the cleat is bolted through thin mounting sections.

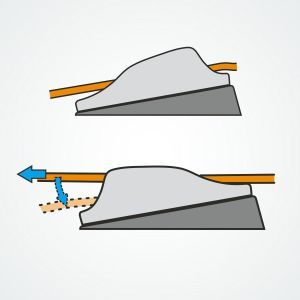

The tapered pad also helps reduce rope rubbing over the cleat teeth by improving the line of pull.
Product Features
- Brand: Clamcleat
- Model: CL818
- Product type: Tapered mounting pad with backplate
- Material: Polypropylene
- Designed to improve rope and cleating alignment
- Can be mounted in either direction
- Single-pad angle: 10°
- Two pads can be stacked for a 20° angle
- Can be reversed and stacked as an approximately 15 mm riser
- Supplied with backplate
- Provides additional support through thin mounting sections
- Helps reduce rope rubbing over the cleat teeth

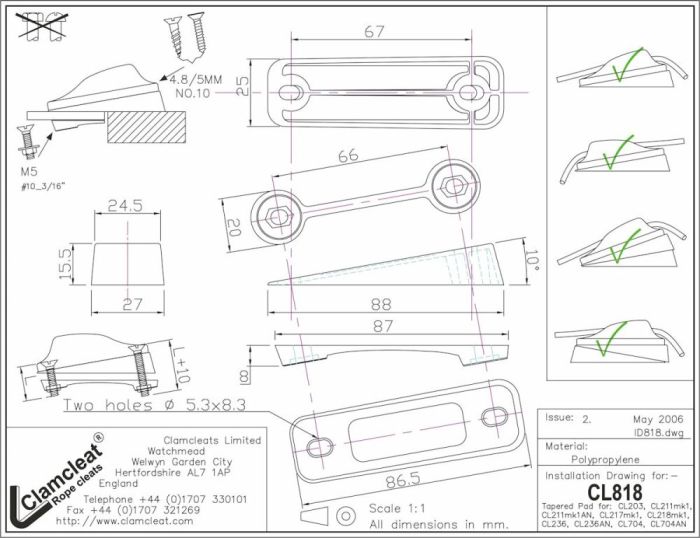

Technical Specifications
Parameter Specification Model CL818 Product Type Tapered mounting pad with backplate Material Polypropylene Hole Centres 67 mm Length 87 mm Width 27 mm Height 15 mm Single-Pad Angle 10° Double-Stack Angle 20° Riser Height Approx. 15 mm Bolt Size M5 / 4.8 mm Screw Size No. 10 Weight Approx. 14 g

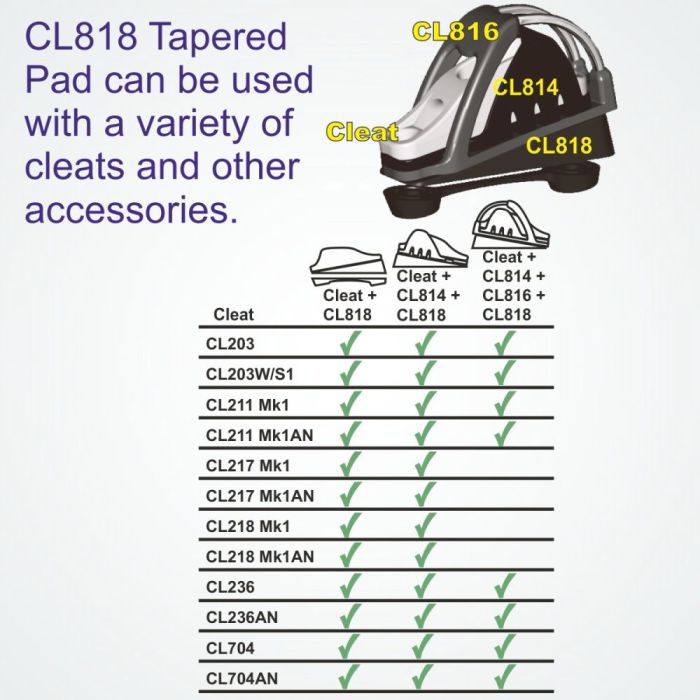

Compatible Cleats
- CL203 Nylon Junior
- CL211 Mk1 Aluminium Racing Junior
- CL217 Mk1 Racing Junior, Starboard
- CL218 Mk1 Racing Junior, Port
- CL236 Roller Fairlead Mk1 Racing Junior
- CL704 / CL704AN Racing Junior Mk1 with Becket
Compatible Accessories
- CL814 Keeper
- CL816 Cage
-
