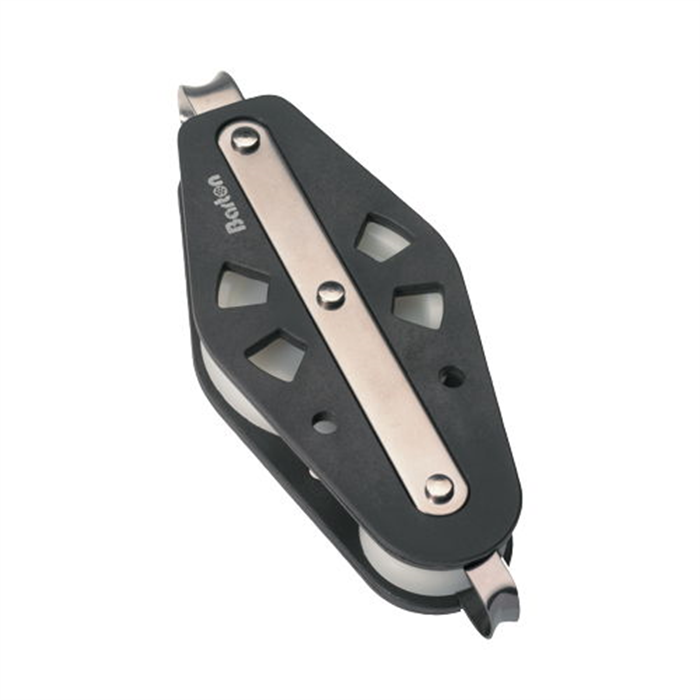

Barton N03411 - Fiddle Block Fixed Eye with Becket Size 3 30/58mm – Plain Bearing, Ø30/58mm Sheaves, Max Rope 10mm

ID 1360715

$ 48.29

1-2 weeks delivery time

- +

Add to cart

The Barton N03411 is a Size 3 fiddle block with fixed eye and becket, featuring plain bearing sheaves (30/58 mm) for ropes up to 10 mm. Weighing 138 g, it is designed for high static loads with a safe working load of 400 kg and break load of 800 kg. The integrated becket allows secure rope termination, making it ideal for compact multi-purchase systems on dinghies and small cruising yachts.

Description
Ask a Question

Barton N03411 - Fiddle Block Fixed Eye with Becket Size 3 30/58mm – Plain Bearing, Ø30/58mm Sheaves, Max Rope 10mm

The Barton N03411 Fiddle Block with Fixed Eye and Becket is part of the Size 3 (45 mm) block range, engineered for strength and efficient load handling. It features a plain bearing fiddle sheave configuration (30/58 mm), optimized for higher static loads in demanding sailing applications.

Manufactured using 30% glass fibre reinforced nylon side plates and an internal stainless steel frame, this block delivers excellent durability while maintaining low weight. The fixed eye attachment ensures secure mounting, while the integrated becket allows rope termination in multi-purchase systems.

Key Features

Fiddle block configuration with 30 mm and 58 mm sheaves
Plain bearing sheaves for high load applications
Fixed eye for secure and stable mounting
Integrated becket for rope termination
Lightweight and strong construction – 138 g

Technical Specifications

Part Number	N03411
Block Type	Fiddle Fixed Eye + Becket
Size	Size 3 (45 mm)
Sheave Diameter	30 mm / 58 mm
Sheave Size	30/58 × 13 mm (1 3/16" / 2 9/32" × 33/64")
Bearing Type	Plain Bearing
Number of Sheaves	Fiddle (Double)
Max Rope Diameter	10 mm (3/8")
Safe Working Load (SWL)	400 kg (881 lbs)
Break Load	800 kg (1763 lbs)
Weight	138 g
Dimensions	158 × 60 × 28 mm
Materials	30% glass fibre reinforced nylon cheeks, Acetal sheaves, stainless steel frame

Applications

Mainsheet and vang systems
Multi-purchase control systems
Dinghies and dayboats
Small cruising yacht rigging

The Barton Size 3 fiddle blocks with becket are engineered for efficient load distribution and durability, delivering reliable performance in compact sailing systems. :contentReference[oaicite:0]{index=0}
