ID
1360804
$ 38.49
1-2 weeks delivery time
-
+
The Barton N02131 is a Size 2 single swivel block with becket and a 35 mm plain bearing sheave, designed for ropes up to 8 mm. Weighing 60 g, it provides reliable load handling with a working load of 370 kg and break load of 740 kg, making it ideal for control systems requiring flexible alignment and rope termination.
- Description
- Ask a Question
-

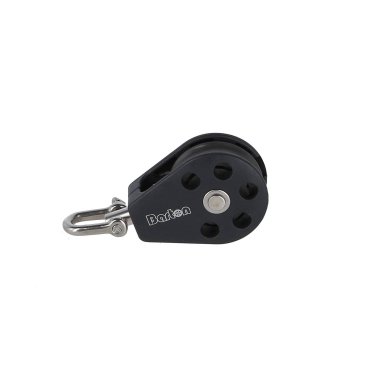

Barton N02131 - Single Swivel Block with Becket Size 2 35mm – Plain Bearing, Ø35mm Sheave, Max Rope 8mm
The Barton N02131 Single Swivel Block with Becket is part of the Size 2 (35 mm) range, featuring a plain bearing sheave and an internal stainless steel frame for enhanced strength and durability. The integrated becket allows secure rope termination in compact rigging systems.
The swivel attachment enables automatic alignment with the load direction, reducing line twist and improving efficiency. The plain bearing system is optimized for high load capacity and controlled line handling, making this block suitable for dinghies, dayboats, and yachts.
Key Features
- Single sheave block with swivel and integrated becket
- Internal stainless steel frame for increased strength and durability
- Plain bearing system for high load applications
- Swivel connection for flexible load alignment
- Becket for rope termination in purchase systems
- Lightweight construction – 60 g
Technical Specifications
Part Number N02131 Block Type Single Swivel + Becket Size Size 2 (35 mm) Sheave Diameter 35 mm x 11 mm (1 3/8"" x 15/32"") Bearing Type Plain Bearing Number of Sheaves Single Max Rope Diameter 8 mm (5/16"") Safe Working Load (SWL) 370 kg (815 lbs) Break Load 740 kg (1630 lbs) Weight 60 g Dimensions 93 × 38 × 24 mm
Applications
- Control systems with rope termination
- Rigging setups requiring flexible alignment
- General-purpose line guidance
- Dinghies, dayboats, and yachts
The Barton Size 2 plain bearing blocks with becket are engineered for strength, durability, and versatile performance, delivering efficient load handling across a wide range of sailing applications.
-
