ID
1360665
$ 31.27
1-2 weeks delivery time
-
+
The Barton N12130 is a Size 2 single swivel block with a 35 mm ball bearing sheave, designed for ropes up to 8 mm. Weighing 47 g, it delivers low-friction performance with a working load of 370 kg, break load of 740 kg, and a maximum rolling load of 260 kg, making it ideal for dynamic control systems requiring flexible alignment.
- Description
- Ask a Question
-

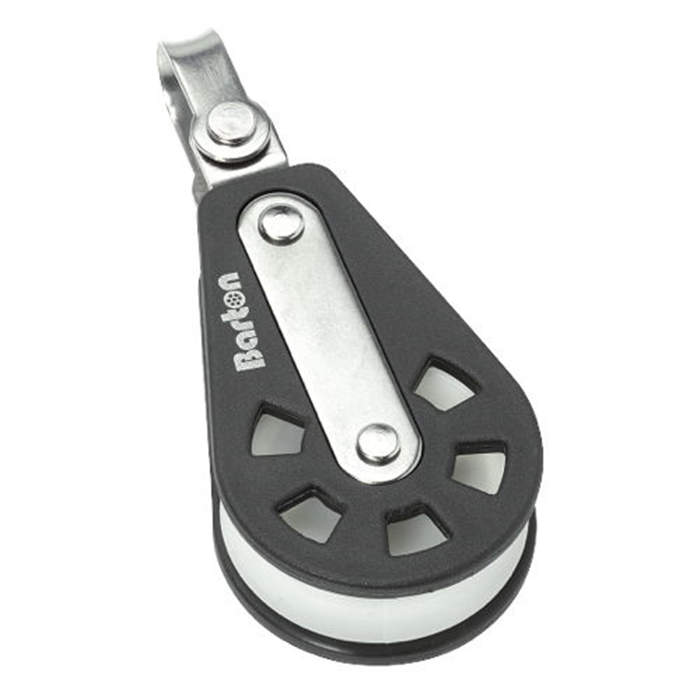

Barton N12130 - Single Swivel Block Size 2 35mm – Ball Bearing, Ø35mm Sheave, Max Rope 8mm
The Barton N12130 Single Swivel Block is part of the Size 2 (35 mm) range, featuring a ball bearing sheave and an internal stainless steel frame for enhanced strength and durability. This configuration ensures smooth and efficient operation in demanding sailing conditions.
The swivel attachment allows automatic alignment with the load direction, reducing line twist and improving efficiency. The ball bearing system provides low-friction performance for dynamic and frequently adjusted lines, making this block ideal for dinghies, racing boats, and performance yachts.
Key Features
- Single sheave block with swivel attachment
- Ball bearing system for smooth, low-friction operation
- Internal stainless steel frame for increased strength and durability
- Swivel connection for flexible load alignment
- Lightweight construction – 47 g
Technical Specifications
Part Number N12130 Block Type Single Swivel Size Size 2 (35 mm) Sheave Diameter 35 mm x 11 mm (1 3/8"" x 15/32"") Bearing Type Ball Bearing Number of Sheaves Single Max Rope Diameter 8 mm (5/16"") Safe Working Load (SWL) 370 kg (815 lbs) Break Load 740 kg (1630 lbs) Max Rolling Load 260 kg (573 lbs) Weight 47 g Dimensions 77 × 38 × 24 mm
Applications
- Dynamic control and trimming systems
- Rigging setups requiring flexible alignment
- Low-friction line guidance
- Dinghies, dayboats, and performance yachts
The Barton Size 2 ball bearing blocks are engineered for maximum efficiency, durability, and smooth load handling, delivering reliable performance across a wide range of sailing applications.
-
