The Barton N12160 is a Size 2 single cheek block with back plate and a 35 mm ball bearing sheave, designed for ropes up to 8 mm. Weighing 72 g, it delivers low-friction performance with a working load of 370 kg, break load of 740 kg, and a maximum rolling load of 260 kg, making it ideal for fixed mounting with smooth line control.
- Description
- Ask a Question
-

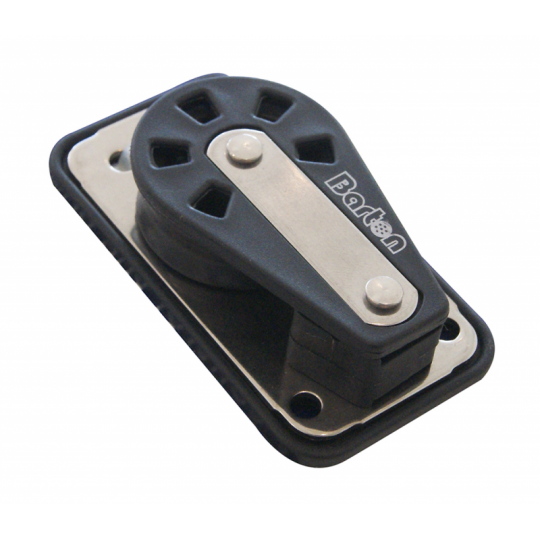

Barton N12160 - Single Cheek Block with Back Plate Size 2 35mm – Ball Bearing, Ø35mm Sheave, Max Rope 8mm
The Barton N12160 Single Cheek Block with Back Plate is part of the Size 2 (35 mm) range, featuring a ball bearing sheave and an internal stainless steel frame for enhanced strength and durability. The integrated back plate allows secure mounting to flat surfaces such as decks, masts, or booms.
Designed for fixed-position installations, this cheek block provides efficient line guidance while maintaining minimal friction. The ball bearing system ensures smooth operation for dynamic and frequently adjusted lines, making it suitable for both cruising and performance applications.
Key Features
- Single sheave cheek block with integrated back plate
- Ball bearing system for smooth, low-friction operation
- Internal stainless steel frame for increased strength and durability
- Designed for secure fixed mounting
- Optimized for precise and efficient line routing
- Lightweight construction – 72 g
Technical Specifications

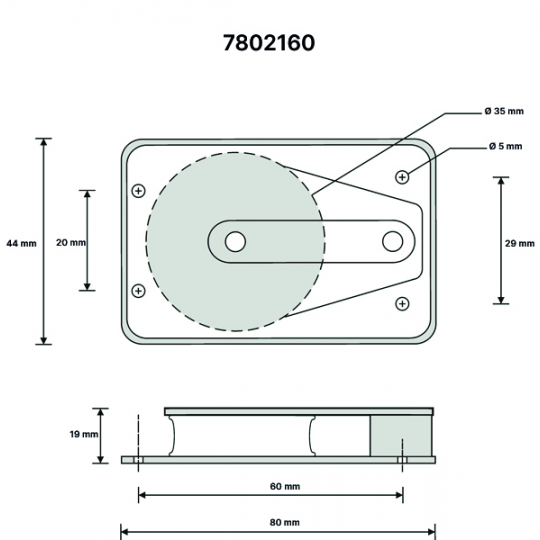

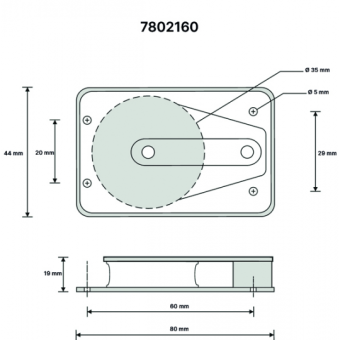

Part Number N12160 Block Type Single Cheek Block with Back Plate Size Size 2 (35 mm) Sheave Diameter 35 mm x 11 mm (1 3/8"" x 15/32"") Bearing Type Ball Bearing Number of Sheaves Single Max Rope Diameter 8 mm (5/16"") Safe Working Load (SWL) 370 kg (815 lbs) Break Load 740 kg (1630 lbs) Max Rolling Load 260 kg (573 lbs) Weight 72 g Dimensions 80 × 44 × 21 mm
Applications
- Deck-mounted line routing
- Mast and boom installations
- Fixed-position control systems
- Dinghies, dayboats, and yachts
The Barton Size 2 ball bearing cheek blocks are engineered for maximum efficiency, durability, and precise line control, delivering smooth and reliable performance in fixed mounting applications.
-
