ID
1360806
$ 127.63
1-2 weeks delivery time
-
+
The Barton N02141 is a Size 2 single block with snap shackle and becket, featuring a 35 mm plain bearing sheave for ropes up to 8 mm. Weighing 97 g, it provides reliable load handling with a working load of 370 kg and break load of 740 kg, making it ideal for compact purchase systems with quick-release functionality.
- Description
- Ask a Question
-

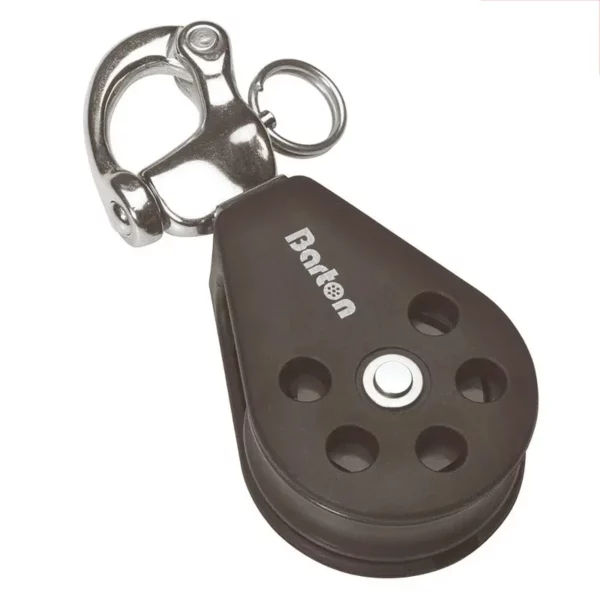

Barton N02141 - Single Snap Shackle Block with Becket Size 2 35mm – Plain Bearing, Ø35mm Sheave, Max Rope 8mm
The Barton N02141 Single Snap Shackle Block with Becket is part of the Size 2 (35 mm) range, featuring a plain bearing sheave and an internal stainless steel frame for enhanced strength and durability. The combination of snap shackle and becket enables both quick attachment and secure rope termination in compact rigging systems.
The snap shackle connection allows rapid installation and removal, while the plain bearing system is optimized for high load capacity and controlled line handling. This makes the block suitable for dinghies, dayboats, and yachts where flexibility and reliability are required.
Key Features
- Single sheave block with snap shackle and integrated becket
- Quick-release snap shackle for fast rigging adjustments
- Becket for rope termination in purchase systems
- Internal stainless steel frame for increased strength and durability
- Plain bearing system for high load applications
- Robust construction – 97 g
Technical Specifications
Part Number N02141 Block Type Single Snap Shackle + Becket Size Size 2 (35 mm) Sheave Diameter 35 mm x 11 mm (1 3/8"" x 15/32"") Bearing Type Plain Bearing Number of Sheaves Single Max Rope Diameter 8 mm (5/16"") Safe Working Load (SWL) 370 kg (815 lbs) Break Load 740 kg (1630 lbs) Weight 97 g Dimensions 109 × 38 × 24 mm
Applications
- Compact purchase systems with rope termination
- Quick-release rigging setups
- Control and trimming systems
- Dinghies, dayboats, and yachts
The Barton Size 2 plain bearing blocks are engineered for strength, durability, and versatile performance, delivering reliable load handling across a wide range of sailing applications.
-
