ID
1360669
$ 38.35
1-2 weeks delivery time
-
+

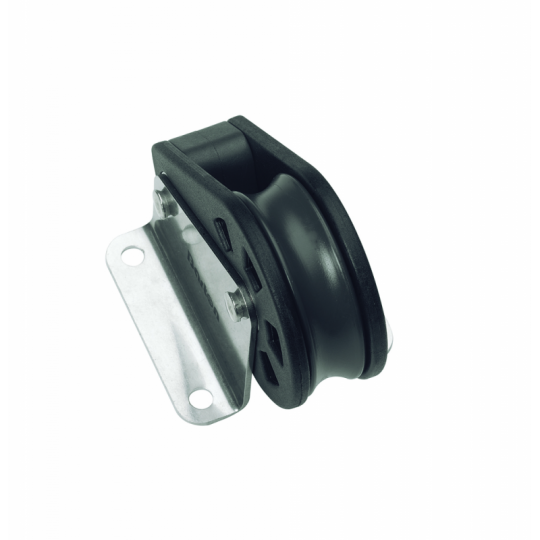

The Barton N02160 is a Size 2 single cheek block with back plate and a 35 mm plain bearing sheave, designed for ropes up to 8 mm. Weighing 73 g, it provides reliable load handling with a working load of 370 kg and break load of 740 kg, making it ideal for fixed mounting and controlled line guidance.
- Description
- Ask a Question
-

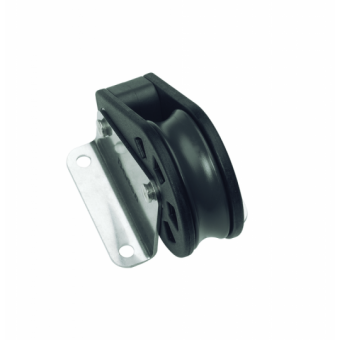

Barton N02160 - Single Cheek Block with Back Plate Size 2 35mm – Plain Bearing, Ø35mm Sheave, Max Rope 8mm
The Barton N02160 Single Cheek Block with Back Plate is part of the Size 2 (35 mm) range, featuring a plain bearing sheave and an internal stainless steel frame for enhanced strength and durability. The integrated back plate allows secure mounting to flat surfaces such as decks, masts, or booms.
Designed for fixed-position installations, the cheek block ensures efficient line guidance while minimizing movement. The plain bearing system provides high load capacity and consistent performance, making it suitable for a wide range of rigging applications.
Key Features
- Single sheave cheek block with integrated back plate
- Designed for secure fixed mounting
- Internal stainless steel frame for increased strength and durability
- Plain bearing system for high load applications
- Optimized for controlled line routing
- Robust construction – 73 g
Technical Specifications
Part Number N02160 Block Type Single Cheek Block with Back Plate Size Size 2 (35 mm) Sheave Diameter 35 mm x 11 mm (1 3/8"" x 15/32"") Bearing Type Plain Bearing Number of Sheaves Single Max Rope Diameter 8 mm (5/16"") Safe Working Load (SWL) 370 kg (815 lbs) Break Load 740 kg (1630 lbs) Weight 73 g Dimensions 80 × 44 × 21 mm
Applications
- Deck-mounted line routing
- Mast and boom installations
- Fixed-position control systems
- General-purpose rigging guidance
The Barton Size 2 cheek blocks are engineered for strength, durability, and precise line control, delivering reliable performance in fixed mounting applications.
-
