The Barton N02140 is a Size 2 single block with snap shackle attachment and a 35 mm plain bearing sheave, designed for ropes up to 8 mm. Weighing 84 g, it provides reliable load handling with a working load of 370 kg and break load of 740 kg, making it ideal for quick-release rigging systems on dinghies and yachts.
- Description
- Ask a Question
-

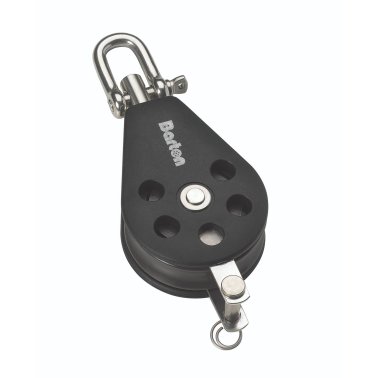

Barton N02140 - Single Snap Shackle Block Size 2 35mm – Plain Bearing, Ø35mm Sheave, Max Rope 8mm
The Barton N02140 Single Snap Shackle Block is part of the Size 2 (35 mm) range, featuring a plain bearing sheave and an internal stainless steel frame for enhanced strength and durability. The integrated snap shackle allows fast and secure attachment and removal, ideal for adjustable rigging setups.
Designed for high load applications, the plain bearing system ensures dependable performance and controlled line handling. The snap shackle connection provides quick-release functionality, making this block particularly useful in dynamic sailing environments where flexibility and rapid adjustment are required.
Key Features
- Single sheave block with snap shackle attachment
- Quick-release snap shackle for fast rigging adjustments
- Internal stainless steel frame for increased strength and durability
- Plain bearing system for high load applications
- Lightweight construction – 84 g
Technical Specifications
Part Number N02140 Block Type Single Snap Shackle Size Size 2 (35 mm) Sheave Diameter 35 mm x 11 mm (1 3/8"" x 15/32"") Bearing Type Plain Bearing Number of Sheaves Single Max Rope Diameter 8 mm (5/16"") Safe Working Load (SWL) 370 kg (815 lbs) Break Load 740 kg (1630 lbs) Weight 84 g Dimensions 93 × 38 × 24 mm
Applications
- Quick-release rigging systems
- Control and trimming lines
- Temporary or adjustable rigging setups
- Dinghies, dayboats, and yachts
The Barton Size 2 plain bearing blocks are engineered for high strength, durability, and versatility, delivering reliable performance across a wide range of sailing applications.
-
