The Barton N10210 is a Size 0 double fixed eye block with two 20 mm ball bearing sheaves, designed for ropes up to 6 mm. Weighing 33 g, it delivers low-friction performance with a working load of 275 kg and break load of 550 kg, ideal for dynamic purchase systems and efficient load handling.
- Description
- Ask a Question
-

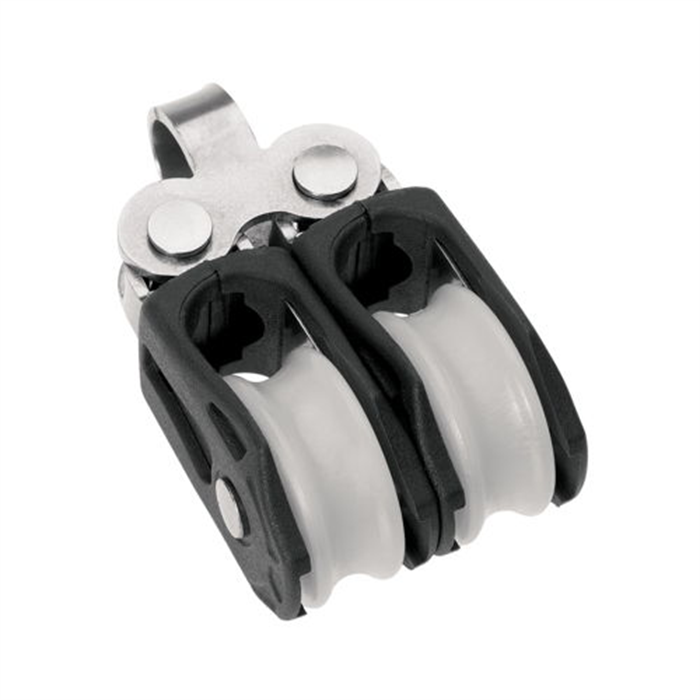

Barton N10210 – Double Fixed Eye Block Size 0 20mm, Ball Bearing, 2x Ø20mm Sheaves, Max Rope 6mm
The Barton N10210 Double Fixed Eye Block is part of the Size 0 (20 mm) range and features two ball bearing sheaves for smooth and efficient operation under load. Designed for performance-oriented applications, it ensures minimal friction and reliable load handling.
With a fixed eye attachment, this block provides a secure and stable mounting point, making it ideal for dynamic purchase systems and frequently adjusted control lines. The ball bearing system enhances efficiency, especially in dinghies, racing boats, and small craft.
Key Features
- Double sheave configuration for increased mechanical advantage
- Ball bearing system for low-friction, high-efficiency operation
- Fixed eye for secure and stable mounting
- Lightweight construction – 33 g
- Designed for dynamic and frequently adjusted systems
Technical Specifications
Part Number N10210 Block Type Double Fixed Eye Block Size Size 0 (20 mm) Sheave Diameter 2 × 20 mm x 8 mm (25/32" x 5/16") Bearing Type Ball Bearing Number of Sheaves Double Max Rope Diameter 6 mm (1/4") Safe Working Load (SWL) 275 kg (606 lbs) Break Load 550 kg (1210 lbs) Max Rolling Load 130 kg (286 lbs) Weight 33 g Dimensions 50 × 30 × 21 mm
Applications
- Dynamic purchase systems
- Control and trimming systems
- Dinghies and performance sailing boats
- Compact multi-line setups
The Barton Size 0 ball bearing double blocks are designed for high-performance sailing applications, delivering smooth operation and improved efficiency in compact rigging systems.
-
