ID
1360634
$ 54.09
1-2 weeks delivery time
-
+
The Barton N00230 is a Size 0 double swivel block with two 20 mm plain bearing sheaves, designed for ropes up to 6 mm. Weighing 46 g, it delivers reliable load handling with a working load of 275 kg and break load of 550 kg, making it suitable for compact rigging systems where durability under static load is required.
- Description
- Ask a Question
-

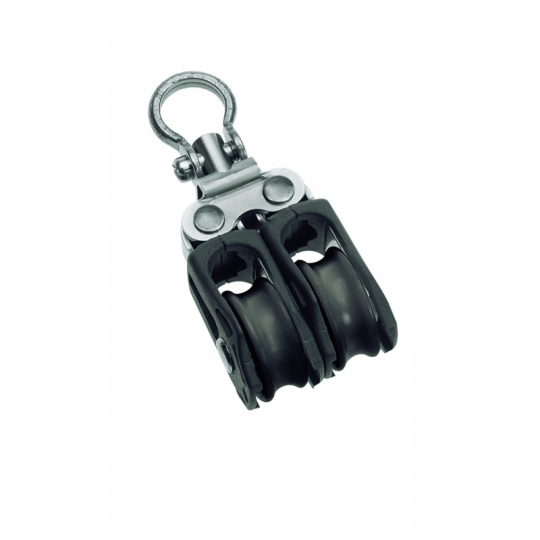

Barton N00230 - Double Swivel Block Size 0 20mm – Plain Bearing, 2x Ø20mm Sheaves, Max Rope 6mm
The Barton N00230 Double Swivel Block is part of the Size 0 (20 mm) range, featuring two plain bearing sheaves engineered for strength and durability under load. The swivel attachment allows flexible alignment with the load direction, improving efficiency in various rigging setups.
Designed for high static load applications, the plain bearing system provides dependable performance where adjustments are less frequent. This block is ideal for dinghies, dayboats, and small craft, as well as for lead lines and auxiliary control systems on larger yachts.
Key Features
- Double sheave block with swivel attachment
- Plain bearing system for strength and durability under load
- Designed for static and semi-static rigging applications
- Compact and lightweight construction – 46 g
- Flexible alignment thanks to swivel connection
Technical Specifications
Part Number N00230 Block Type Double Swivel Size Size 0 (20 mm) Sheave Diameter 2 × 20 mm x 8 mm (25/32"" x 5/16"") Bearing Type Plain Bearing Number of Sheaves Double Max Rope Diameter 6 mm (1/4"") Safe Working Load (SWL) 275 kg (606 lbs) Break Load 550 kg (1210 lbs) Weight 46 g Dimensions 68 × 30 × 21 mm
Applications
- Static and semi-static purchase systems
- Control and lead line applications
- Dinghies and small sailing boats
- Auxiliary rigging on larger yachts
The Barton Size 0 plain bearing double swivel blocks are designed for robust load handling and long service life, providing dependable performance in compact and lightweight sailing systems.
-
