The Barton N00311 is a Size 0 triple fixed eye block with becket and three 20 mm plain bearing sheaves, designed for ropes up to 6 mm. Weighing 58 g, it provides reliable load handling with a working load of 275 kg and break load of 550 kg, making it suitable for compact multi-purchase systems with integrated rope termination.
- Description
- Ask a Question
-

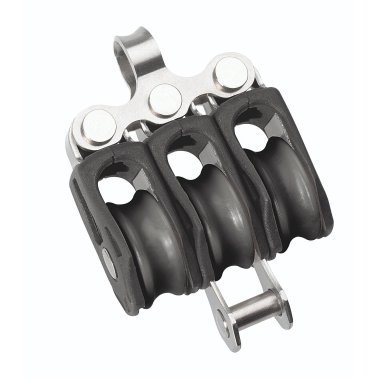

Barton N00311 - Triple Fixed Eye Block with Becket Size 0 20mm – Plain Bearing, 3x Ø20mm Sheaves, Max Rope 6mm
The Barton N00311 Triple Fixed Eye Block with Becket is part of the Size 0 (20 mm) range, featuring three plain bearing sheaves designed for strength and durability under load. The integrated becket enables secure rope termination, making it ideal for compact multi-purchase systems.
The fixed eye attachment ensures stable and secure mounting, while the plain bearing system is optimized for high static loads and controlled adjustment. This configuration is particularly suitable for dinghies, dayboats, and small craft, as well as auxiliary rigging systems on larger yachts.
Key Features
- Triple sheave block with integrated becket for multi-purchase systems
- Plain bearing system for strength and durability under load
- Fixed eye for secure and stable mounting
- Becket for rope termination
- Compact and lightweight construction – 58 g
Technical Specifications
Part Number N00311 Block Type Triple Fixed Eye + Becket Size Size 0 (20 mm) Sheave Diameter 3 × 20 mm x 8 mm (25/32"" x 5/16"") Bearing Type Plain Bearing Number of Sheaves Triple Max Rope Diameter 6 mm (1/4"") Safe Working Load (SWL) 275 kg (606 lbs) Break Load 550 kg (1210 lbs) Weight 58 g Dimensions 63 × 43 × 21 mm
Applications
- Multi-purchase systems with rope termination
- Static and semi-static control systems
- Dinghies and small sailing boats
- Compact rigging requiring increased mechanical advantage
The Barton Size 0 plain bearing triple blocks with becket are engineered for reliable performance and efficient load distribution, making them ideal for compact, high-strength sailing systems.
-
