The Barton N10310 is a Size 0 triple fixed eye block with three 20 mm ball bearing sheaves, designed for ropes up to 6 mm. Weighing 47 g, it delivers low-friction performance with a working load of 275 kg, break load of 550 kg, and a maximum rolling load of 130 kg, making it ideal for dynamic multi-purchase systems.
- Description
- Ask a Question
-

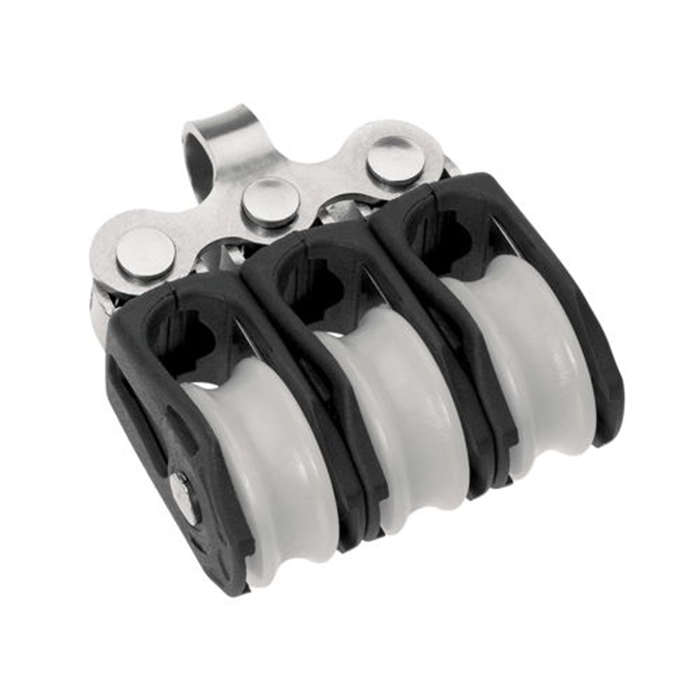

Barton N10310 - Triple Fixed Eye Block Size 0 20mm – Ball Bearing, 3x Ø20mm Sheaves, Max Rope 6mm
The Barton N10310 Triple Fixed Eye Block is part of the Size 0 (20 mm) range, featuring three ball bearing sheaves designed for smooth and efficient line handling. This configuration provides increased mechanical advantage while maintaining compact dimensions.
The fixed eye attachment ensures secure and stable mounting, while the ball bearing system minimizes friction, making it ideal for dynamic and frequently adjusted rigging systems. This block is particularly suited for dinghies, racing boats, and small craft where responsive control is essential.
Key Features
- Triple sheave block for higher purchase ratios
- Ball bearing system for low-friction, high-efficiency operation
- Designed for dynamic and frequently adjusted systems
- Fixed eye for secure mounting
- Lightweight construction – 47 g
Technical Specifications
Part Number N10310 Block Type Triple Fixed Eye Size Size 0 (20 mm) Sheave Diameter 3 × 20 mm x 8 mm (25/32"" x 5/16"") Bearing Type Ball Bearing Number of Sheaves Triple Max Rope Diameter 6 mm (1/4"") Safe Working Load (SWL) 275 kg (606 lbs) Break Load 550 kg (1210 lbs) Max Rolling Load 130 kg (286 lbs) Weight 47 g Dimensions 50 × 43 × 21 mm
Applications
- Dynamic multi-purchase systems
- Control and trimming systems
- Dinghies and performance sailing boats
- Compact rigging setups requiring low friction
The Barton Size 0 ball bearing triple blocks are engineered for maximum efficiency and smooth operation, delivering precise control and reduced friction in demanding sailing applications.
-
