The Barton N00231 is a Size 0 double swivel block with becket and two 20 mm plain bearing sheaves, designed for ropes up to 6 mm. Weighing 50 g, it delivers reliable load handling with a working load of 275 kg and break load of 550 kg, making it suitable for compact purchase systems with integrated rope termination.
- Description
- Ask a Question
-

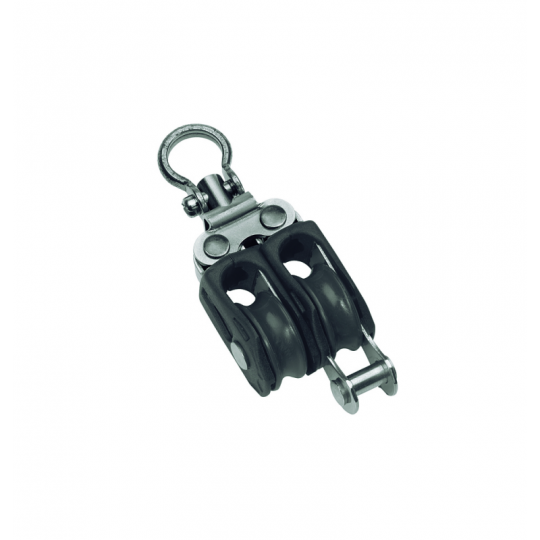

Barton N00231 - Double Swivel Block with Becket Size 0 20mm – Plain Bearing, 2x Ø20mm Sheaves, Max Rope 6mm
The Barton N00231 Double Swivel Block with Becket is part of the Size 0 (20 mm) range, featuring two plain bearing sheaves designed for strength and durability under load. The integrated becket enables secure rope termination, making this block suitable for compact multi-purchase systems.
The swivel attachment allows automatic alignment with the load direction, improving efficiency and reducing line twist in operation. The plain bearing system is optimized for high static loads and intermittent adjustment, making it ideal for dinghies, dayboats, and small craft, as well as auxiliary systems on larger yachts.
Key Features
- Double sheave block with swivel and integrated becket
- Plain bearing system for strength and durability under load
- Becket for secure rope termination in purchase systems
- Swivel connection for flexible load alignment
- Compact and lightweight construction – 50 g
Technical Specifications
Part Number N00231 Block Type Double Swivel + Becket Size Size 0 (20 mm) Sheave Diameter 2 × 20 mm x 8 mm (25/32"" x 5/16"") Bearing Type Plain Bearing Number of Sheaves Double Max Rope Diameter 6 mm (1/4"") Safe Working Load (SWL) 275 kg (606 lbs) Break Load 550 kg (1210 lbs) Weight 50 g Dimensions 80 × 30 × 21 mm
Applications
- Compact purchase systems with rope termination
- Static and semi-static control systems
- Dinghies and small sailing boats
- Lead lines and auxiliary rigging on larger yachts
The Barton Size 0 plain bearing double swivel blocks with becket are engineered for reliable load handling and long service life, providing consistent performance in compact and efficient sailing systems.
-
