Barton N00170 – Single Sprung Stand-Up Block Size 0 20mm, Plain Bearing, Ø20mm Sheave, Max Rope 6mm

ID 1360631

$ 27.08

1-2 weeks delivery time

- +

Add to cart

The Barton N00170 is a Size 0 single sprung stand-up block with a 20 mm plain bearing sheave, designed for ropes up to 6 mm. Weighing 20 g, it features a spring base for upright positioning, with a working load of 275 kg and break load of 550 kg, ideal for deck-mounted control systems.

Description
Ask a Question

Barton N00170 – Single Sprung Stand-Up Block Size 0 20mm, Plain Bearing, Ø20mm Sheave, Max Rope 6mm

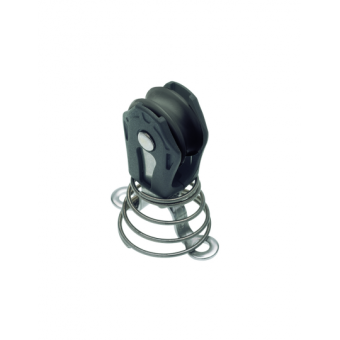

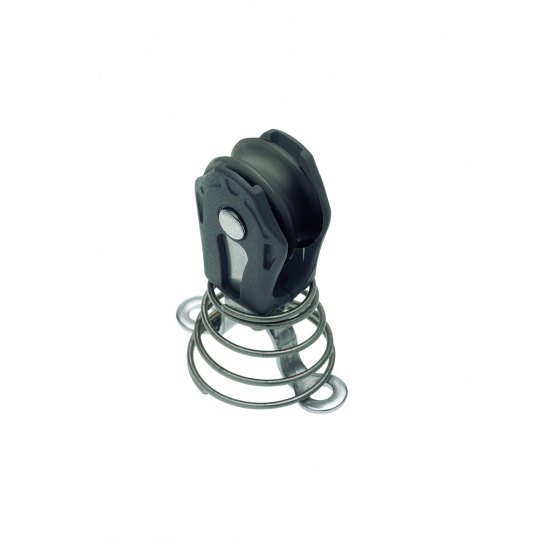

The Barton N00170 Single Sprung Stand-Up Block is a Size 0 (20 mm) deck-mounted block designed for efficient line control in fixed positions. Equipped with a spring stand base, it keeps the block upright and ready for use, improving handling and reducing line slack.

The plain bearing sheave ensures reliable performance under load, while the stand-up design makes it particularly suitable for control lines on decks, cockpits, and small craft rigging systems. This block is ideal for dinghies, day boats, and performance sailing applications.

Key Features

Single stand-up block with integrated spring base
Maintains upright position for easier line handling
Plain bearing for durability and consistent load performance
Lightweight construction – 20 g
Optimized for deck-mounted control systems

Technical Specifications

Part Number	N00170
Block Type	Single Sprung Stand-Up Block
Size	Size 0 (20 mm)
Sheave Diameter	20 mm x 8 mm (25/32" x 5/16")
Bearing Type	Plain Bearing
Number of Sheaves	Single
Max Rope Diameter	6 mm (1/4")
Safe Working Load (SWL)	275 kg (606 lbs)
Break Load	550 kg (1210 lbs)
Weight	20 g
Dimensions	48 × 38 × 26 mm

Applications

Deck-mounted control lines
Dinghies and small sailing boats
Cockpit rigging systems
Performance sailing setups

The Barton Size 0 stand-up block range provides efficient line management and improved usability, ensuring that control lines remain accessible and correctly aligned during operation.
