ID
1360636
$ 49.46
1-2 weeks delivery time
-
+
The Barton N00310 is a Size 0 triple fixed eye block with three 20 mm plain bearing sheaves, designed for ropes up to 6 mm. Weighing 53 g, it provides reliable load handling with a working load of 275 kg and break load of 550 kg, making it suitable for compact multi-purchase systems requiring higher mechanical advantage.
- Description
- Ask a Question
-

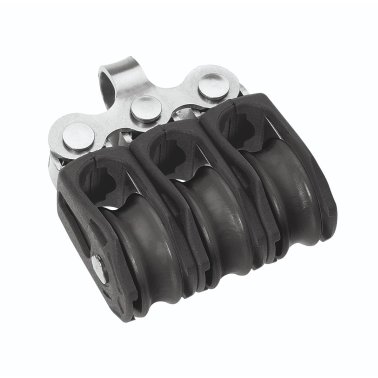

Barton N00310 - Triple Fixed Eye Block Size 0 20mm – Plain Bearing, 3x Ø20mm Sheaves, Max Rope 6mm
The Barton N00310 Triple Fixed Eye Block is part of the Size 0 (20 mm) range, featuring three plain bearing sheaves designed for strength and durability under load. This configuration enables increased mechanical advantage in compact rigging systems.
The fixed eye attachment ensures stable and secure mounting, making it suitable for fixed installations. The plain bearing system is optimized for high static loads and controlled adjustments, making this block ideal for dinghies, dayboats, and small craft, as well as for auxiliary systems on larger yachts.
Key Features
- Triple sheave block for increased purchase ratios
- Plain bearing system for strength and durability under load
- Fixed eye for secure and stable mounting
- Compact and lightweight construction – 53 g
- Optimized for static and semi-static rigging applications
Technical Specifications
Part Number N00310 Block Type Triple Fixed Eye Size Size 0 (20 mm) Sheave Diameter 3 × 20 mm x 8 mm (25/32"" x 5/16"") Bearing Type Plain Bearing Number of Sheaves Triple Max Rope Diameter 6 mm (1/4"") Safe Working Load (SWL) 275 kg (606 lbs) Break Load 550 kg (1210 lbs) Weight 53 g Dimensions 50 × 43 × 21 mm
Applications
- Multi-purchase systems requiring higher mechanical advantage
- Static and semi-static control systems
- Dinghies and small sailing boats
- Compact rigging and auxiliary line systems
The Barton Size 0 plain bearing triple blocks are engineered for efficient load distribution and reliable performance, making them ideal for compact, high-efficiency sailing systems.
-
