ID
1360780
$ 40.24
1-2 weeks delivery time
-
+
The Barton N10130 is a Size 0 single swivel block with a 20 mm ball bearing sheave, designed for ropes up to 6 mm. Weighing 22 g, it provides smooth low-friction operation with a working load of 275 kg and break load of 550 kg, ensuring efficient performance in dynamic rigging systems.
- Description
- Ask a Question
-

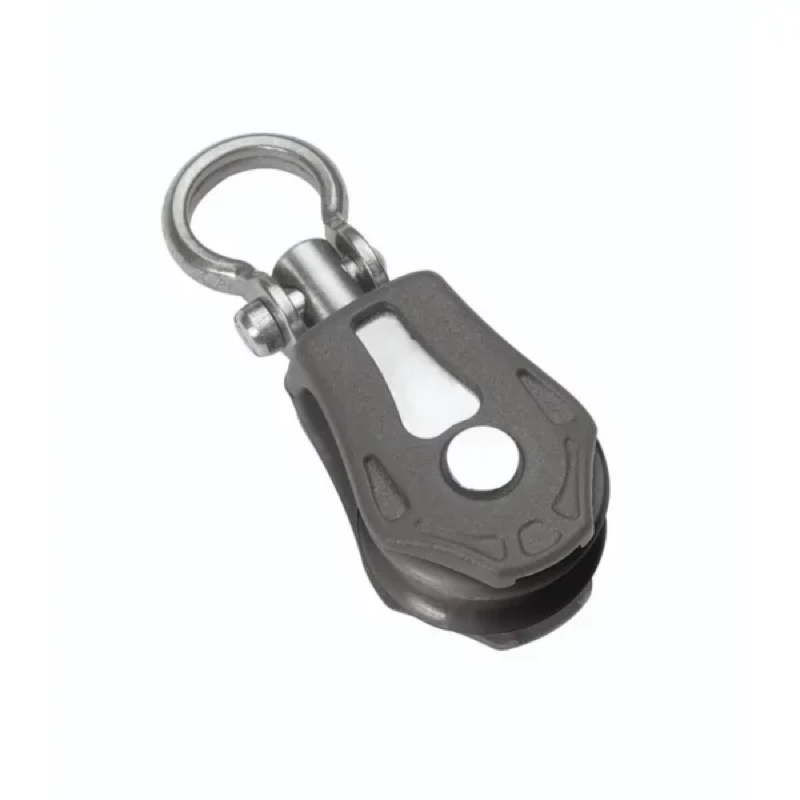

Barton N10130 – Single Swivel Block Size 0 20mm, Ball Bearing, Ø20mm Sheave, Max Rope 6mm
The Barton N10130 Single Swivel Block is part of the Size 0 (20 mm) range and is designed for smooth, efficient operation in dynamic sailing applications. Featuring a ball bearing sheave, this block minimizes friction and allows for fast and responsive line handling.
The integrated swivel head enables free rotation, ensuring optimal alignment with the load direction and reducing line wear. This makes it particularly suitable for frequently adjusted systems on dinghies, day boats, and small craft.
Key Features
- Single sheave block with swivel head for flexible alignment
- Ball bearing system for smooth, low-friction performance
- Lightweight construction – 22 g
- Optimized for dynamic and frequently adjusted lines
- Compact and durable marine-grade design
Technical Specifications
Part Number N10130 Block Type Single Swivel Size Size 0 (20 mm) Sheave Diameter 20 mm x 8 mm (25/32" x 5/16") Bearing Type Ball Bearing Number of Sheaves Single Max Rope Diameter 6 mm (1/4") Safe Working Load (SWL) 275 kg (606 lbs) Break Load 550 kg (1210 lbs) Max Rolling Load 130 kg (286 lbs) Weight 22 g Dimensions 55 × 24 × 16 mm
Applications
- Dinghies and racing day boats
- Mainsheet and trimming systems
- Control lines with changing load direction
- General-purpose light rigging
The Barton Size 0 ball bearing block range is designed for fast, repeated adjustments, delivering reduced friction and improved handling efficiency in demanding sailing conditions.
-
