The Barton N00131 is a Size 0 single swivel block with becket and a 20 mm plain bearing sheave, designed for ropes up to 6 mm. Weighing 28 g, it offers a working load of 275 kg and break load of 550 kg, providing flexible alignment and secure rope termination for compact rigging systems.
- Description
- Ask a Question
-

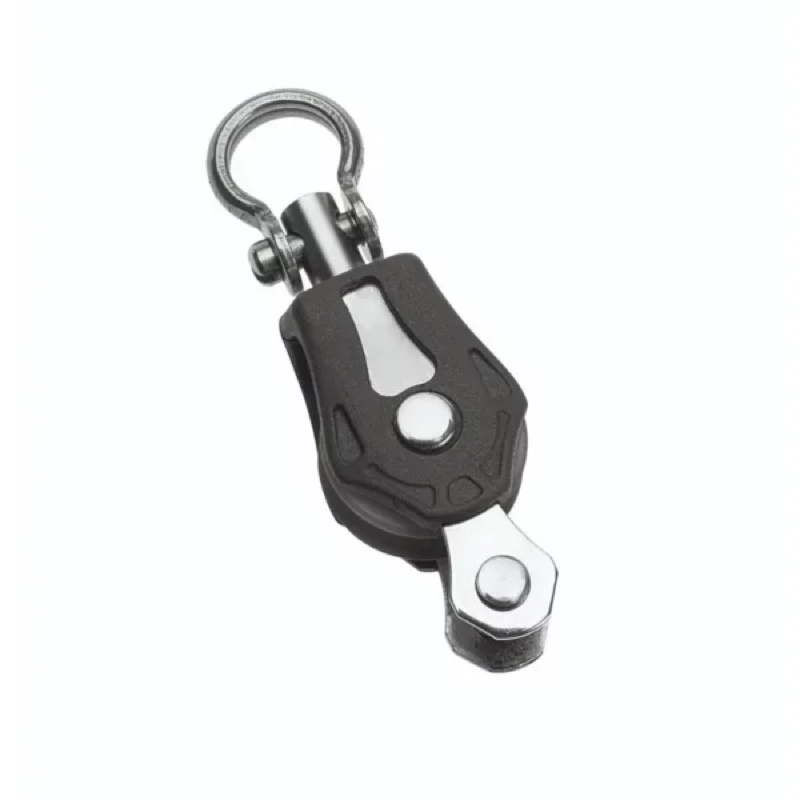

Barton N00131 – Single Swivel Block with Becket Size 0 20mm, Plain Bearing, Ø20mm Sheave, Max Rope 6mm
The Barton N00131 Single Swivel Block with Becket is part of the Size 0 (20 mm) block range, combining flexible swivel alignment with an integrated becket for secure rope attachment. Designed with a plain bearing sheave, this block provides reliable performance under load.
The swivel head allows the block to rotate freely, ensuring correct alignment with the load direction and reducing line wear. The becket enables efficient use in simple purchase systems, making this block ideal for dinghies, day boats, and small craft, as well as auxiliary rigging on larger yachts.
Key Features
- Single sheave block with swivel head and integrated becket
- Plain bearing for dependable load performance
- Allows flexible alignment with changing load directions
- Lightweight construction – 28 g
- Suitable for compact purchase and control systems
Technical Specifications
Part Number N00131 Block Type Single Swivel + Becket Size Size 0 (20 mm) Sheave Diameter 20 mm x 8 mm (25/32" x 5/16") Bearing Type Plain Bearing Number of Sheaves Single Max Rope Diameter 6 mm (1/4") Safe Working Load (SWL) 275 kg (606 lbs) Break Load 550 kg (1210 lbs) Weight 28 g Dimensions 69 × 24 × 16 mm
Applications
- Dinghies and small sailing boats
- Purchase systems requiring fixed rope termination
- Control lines with changing load direction
- General-purpose light rigging
The Barton Size 0 block range offers a combination of strength, compact size, and versatility, making it suitable for efficient and reliable small-scale marine rigging systems.
-
