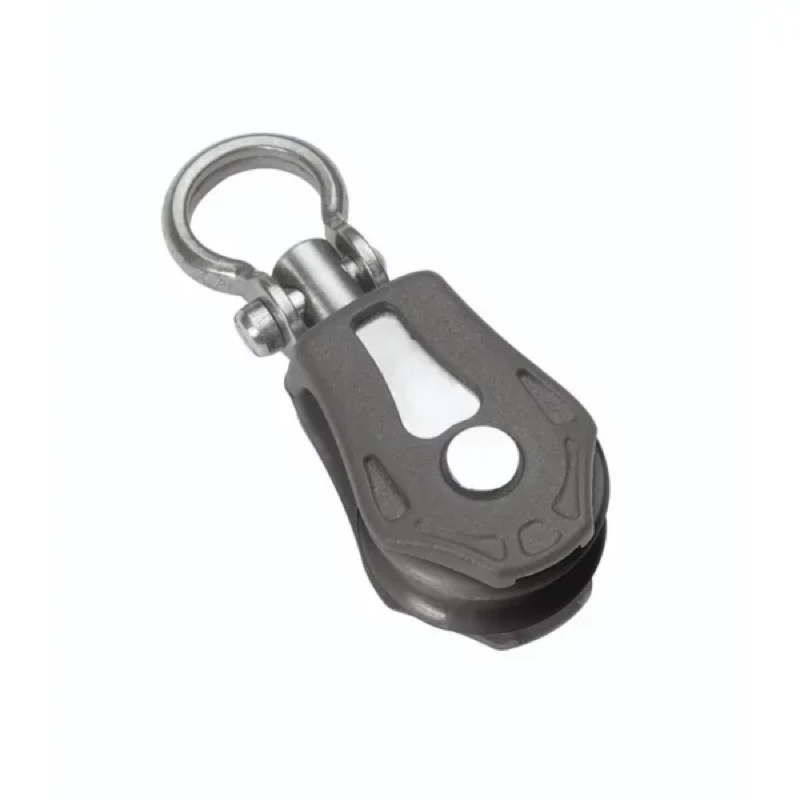

Barton N00130 – Single Swivel Block Size 0 20mm, Plain Bearing, Ø20mm Sheave, Max Rope 6mm

ID 1360628

$ 33.33

1-2 weeks delivery time

- +

Add to cart

The Barton N00130 is a Size 0 single swivel block with a 20 mm plain bearing sheave, designed for ropes up to 6 mm. With a weight of 24 g, it offers a working load of 275 kg and break load of 550 kg, allowing flexible alignment for dinghies and light-duty rigging systems.

Description
Ask a Question

Barton N00130 – Single Swivel Block Size 0 20mm, Plain Bearing, Ø20mm Sheave, Max Rope 6mm

The Barton N00130 Single Swivel Block is part of the Size 0 (20 mm) block range, designed to provide reliable performance and flexibility in compact rigging systems. Featuring a plain bearing sheave, this block ensures dependable operation under load.

The integrated swivel head allows the block to rotate freely, ensuring optimal alignment with the load direction and reducing line wear. This makes it particularly suitable for dynamic setups on dinghies, day boats, and small craft.

Key Features

Single sheave block with swivel head for flexible alignment
Plain bearing for reliable load handling
Compact and lightweight design – 24 g
Reduces line twist and improves load distribution
Durable construction for marine environments

Technical Specifications

Part Number	N00130
Block Type	Single Swivel
Size	Size 0 (20 mm)
Sheave Diameter	20 mm x 8 mm (25/32" x 5/16")
Bearing Type	Plain Bearing
Number of Sheaves	Single
Max Rope Diameter	6 mm (1/4")
Safe Working Load (SWL)	275 kg (606 lbs)
Break Load	550 kg (1210 lbs)
Weight	24 g
Dimensions	55 × 24 × 16 mm

Applications

Dinghies and small sailing boats
Control lines with changing load direction
Sheet and trimming systems
General-purpose light rigging

The Barton Size 0 block range is engineered to provide a balance of lightweight construction, strength, and versatility, making it suitable for a wide range of small boat applications.
