ID
1360786
$ 72.04
1-2 weeks delivery time
-
+
The Barton N10311 is a Size 0 triple fixed eye block with becket and three 20 mm ball bearing sheaves, designed for ropes up to 6 mm. Weighing 52 g, it delivers low-friction performance with a working load of 275 kg, break load of 550 kg, and a maximum rolling load of 130 kg, making it ideal for dynamic multi-purchase systems with integrated rope termination.
- Description
- Ask a Question
-

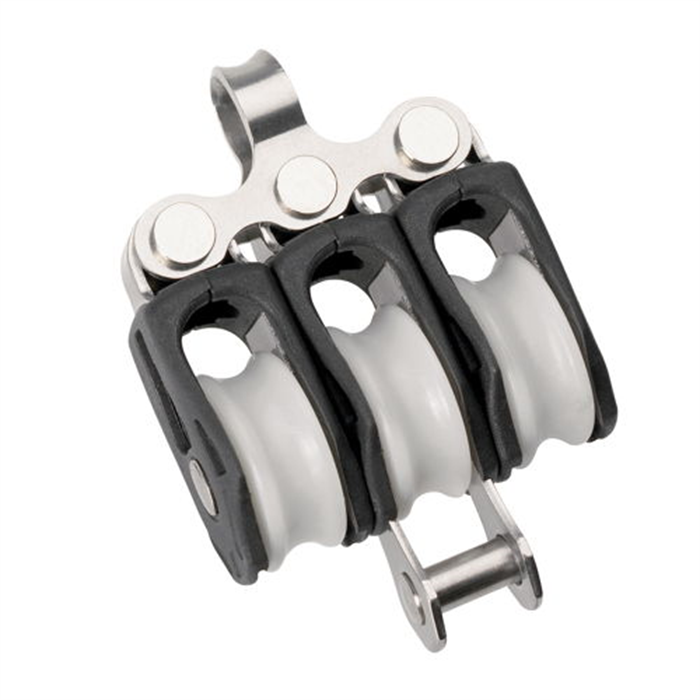

Barton N10311 - Triple Fixed Eye Block with Becket Size 0 20mm – Ball Bearing, 3x Ø20mm Sheaves, Max Rope 6mm
The Barton N10311 Triple Fixed Eye Block with Becket is part of the Size 0 (20 mm) range, featuring three ball bearing sheaves designed for smooth and efficient line handling. The integrated becket allows secure rope termination, making it suitable for compact multi-purchase systems.
The fixed eye attachment ensures stable and secure mounting, while the ball bearing system minimizes friction, making this block ideal for dynamic and frequently adjusted rigging systems. It is particularly suited for dinghies, racing boats, and small craft requiring responsive control.
Key Features
- Triple sheave block with integrated becket for multi-purchase systems
- Ball bearing system for low-friction, high-efficiency operation
- Designed for dynamic and frequently adjusted systems
- Fixed eye for secure mounting
- Lightweight construction – 52 g
Technical Specifications
Part Number N10311 Block Type Triple Fixed Eye + Becket Size Size 0 (20 mm) Sheave Diameter 3 × 20 mm x 8 mm (25/32"" x 5/16"") Bearing Type Ball Bearing Number of Sheaves Triple Max Rope Diameter 6 mm (1/4"") Safe Working Load (SWL) 275 kg (606 lbs) Break Load 550 kg (1210 lbs) Max Rolling Load 130 kg (286 lbs) Weight 52 g Dimensions 63 × 43 × 21 mm
Applications
- Dynamic multi-purchase systems with rope termination
- Control and trimming systems
- Dinghies and performance sailing boats
- Compact rigging requiring high efficiency and low friction
The Barton Size 0 ball bearing triple blocks with becket are engineered for maximum efficiency and smooth operation, delivering precise control and reduced friction in compact sailing systems.
-
