ID
1406003
$ 31.07
1-2 weeks delivery time
-
+
The Tecnoseal 02100TP is a brass mounting plug designed for the Tecnoseal 02100 zinc pencil anode in compatible Nanni Diesel marine engine cooling systems. It features an M16x1.5 external mounting thread, an 8 mm internal connection dimension and a 17 mm head diameter. Weighing 0.03 kg (0.07 lbs), the plug uses the Tecnoseal 4TP configuration and provides a separate replacement mounting component for the sacrificial anode. It is supplied individually without the zinc pencil anode.
- Description
- Ask a Question
-

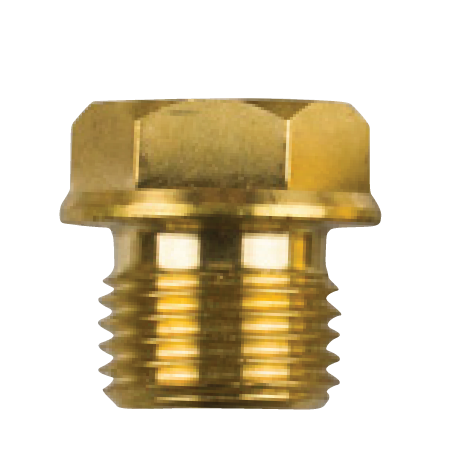

Tecnoseal 02100TP Nanni Diesel Brass Plug M16x1.5 for Pencil Anode 02100
The Tecnoseal 02100TP is a brass mounting plug designed for the Tecnoseal 02100 zinc pencil anode used in compatible Nanni Diesel marine engine cooling systems. It provides the threaded mounting connection between the sacrificial anode and the engine cooling system fitting, allowing the brass plug to be replaced independently of the zinc element.
The plug features an M16x1.5 external mounting thread and an 8 mm (0.31 in) internal connection dimension for the pencil anode. Its round head measures 17 mm (0.67 in) in diameter, providing a compact mounting configuration for compatible installations.
Weighing 0.03 kg (0.07 lbs), the Tecnoseal 02100TP uses the manufacturer's 4TP brass plug configuration. It is supplied individually without a zinc anode and is intended for use with the corresponding Tecnoseal 02100 pencil anode.
Key Features
- Manufacturer: Tecnoseal
- Product Code: 02100TP
- Compatible Brand: Nanni Diesel
- Product Type: Brass mounting plug for pencil anode
- Material: Brass
- Compatible Tecnoseal Anode: 02100
- External Mounting Thread: M16x1.5
- Internal Connection Dimension: 8 mm
- Head Diameter: 17 mm
- Brass Plug Type: 4TP
- Configuration: Brass Plug Only
- Weight: 0.03 kg
Technical Specifications
Specification Value Product Code 02100TP Material Brass External Thread (a) M16x1.5 Internal Connection Dimension (b) 8 mm (0.31 in) Head Diameter (c) 17 mm (0.67 in) Weight 0.03 kg (0.07 lbs) Plug Type 4TP Compatible Anode Tecnoseal 02100 EAN 8033837067603 Supply Brass plug only, without zinc anode
Compatible Pencil Anode
The Tecnoseal 02100TP is designed for use with the Tecnoseal 02100 zinc pencil anode, which has the following dimensions:
- Anode Code: Tecnoseal 02100
- Anode Material: Zinc
- Body Diameter: 10 mm
- Body Length: 17 mm
- Mounting Extension: 9 mm
- Connection Dimension: 8 mm
Application and Compatibility
- Nanni Diesel marine engine cooling systems
- Compatible marine engine heat exchangers
- Replacement brass mounting plug for Tecnoseal 02100 pencil anode
- Cooling system fittings requiring an M16x1.5 external mounting thread
Installation and Replacement
The Tecnoseal 02100TP provides an M16x1.5 threaded connection for installation into a compatible engine cooling system fitting. Its 8 mm internal connection dimension accommodates the corresponding Tecnoseal 02100 zinc pencil anode.
Before ordering, verify the existing external mounting thread, internal connection and 17 mm head diameter against the original plug. The brass mounting plug and zinc sacrificial anode are separate replacement components.
Supply: One brass mounting plug without zinc pencil anode.
-
