ID
1405998
$ 47.86
1-2 weeks delivery time
-
+
The Tecnoseal 02111 is a zinc sacrificial pencil anode designed for compatible Mitsubishi marine engine cooling systems and heat exchangers. It features a cylindrical zinc body measuring 35 mm (1.38 in) in diameter and 31 mm (1.22 in) in length, with a 25 mm (0.98 in) threaded mounting extension and an M8 connection. Weighing 0.21 kg (0.46 lbs), this anode helps protect metallic cooling system components against galvanic corrosion. It uses the T1 pencil configuration and is supplied individually without a brass mounting plug.
- Description
- Ask a Question
-

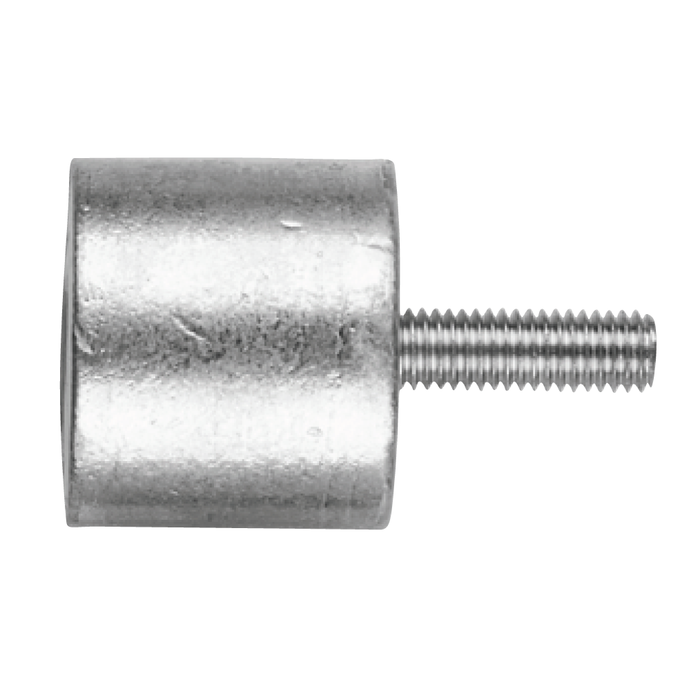

Tecnoseal 02111 Mitsubishi Zinc Pencil Anode Ø35x31 mm M8
The Tecnoseal 02111 is a zinc sacrificial pencil anode designed for Mitsubishi marine engine applications. It provides corrosion protection for metallic components exposed to cooling water by acting as a replaceable sacrificial zinc element.
The anode features a cylindrical zinc body measuring 35 mm (1.38 in) in diameter and 31 mm (1.22 in) in length. Its integrated threaded mounting extension measures 25 mm (0.98 in) and features an M8 connection, allowing installation into a compatible existing mounting fitting.
Weighing 0.21 kg (0.46 lbs), the Tecnoseal 02111 uses the T1 pencil configuration. Its relatively wide cylindrical body and extended mounting section distinguish it from smaller pencil anodes used in marine cooling systems.
The anode is supplied individually without a brass mounting plug, making it suitable for replacing the consumed zinc element while retaining the existing compatible fitting.
Key Features
- Manufacturer: Tecnoseal
- Product Code: 02111
- Compatible Brand: Mitsubishi
- Product Type: Sacrificial pencil anode
- Material: Zinc
- Configuration: Anode Only
- Body Diameter: 35 mm
- Body Length: 31 mm
- Threaded Extension: 25 mm
- Mounting Thread: M8
- Pencil Type: T1
- Weight: 0.21 kg
Technical Specifications
Specification Value Product Code 02111 Material Zinc Diameter (Ø) 35 mm / 1.38 in Body Length (l) 31 mm / 1.22 in Threaded Extension (l1) 25 mm / 0.98 in Mounting Thread (b) M8 Weight 0.21 kg / 0.46 lbs Pencil Type T1 EAN 8033837067634 Supply Zinc anode only, without brass plug
Application and Compatibility
The Tecnoseal 02111 is listed in the Mitsubishi section of the Tecnoseal engine anode catalogue. It is intended for compatible marine engine installations requiring a zinc pencil anode with a 35 mm diameter body, 31 mm body length and M8 threaded mounting connection.
- Mitsubishi marine engine applications
- Compatible marine engine cooling systems
- Replacement of sacrificial zinc pencil anodes
- Existing mounting fittings with a matching M8 connection
Installation and Replacement
Before ordering, compare the existing pencil anode with the Tecnoseal 02111 dimensions. The zinc body measures 35 mm in diameter and 31 mm in length, while the threaded extension measures 25 mm and uses an M8 connection.
The zinc element should be inspected periodically and replaced when sufficiently consumed by corrosion. Confirm the available installation space and mounting thread compatibility before fitting.
Supply: One zinc pencil anode without brass mounting plug.
-
