The Tecnoseal 02130 is a zinc sacrificial pencil anode designed for MAN Diesel D2842LE433 and V12-1550 marine engines, providing corrosion protection for metallic components in engine cooling systems. It features a cylindrical zinc body measuring 10 mm (0.39 in) in diameter and 30 mm (1.18 in) in length, with a 10 mm (0.39 in) threaded mounting extension and an M8 connection. Weighing 0.03 kg (0.07 lbs), the anode uses the T1 pencil configuration and is supplied individually without a brass mounting plug, allowing replacement of the sacrificial zinc element while retaining a compatible existing fitting.
- Description
- Ask a Question
-

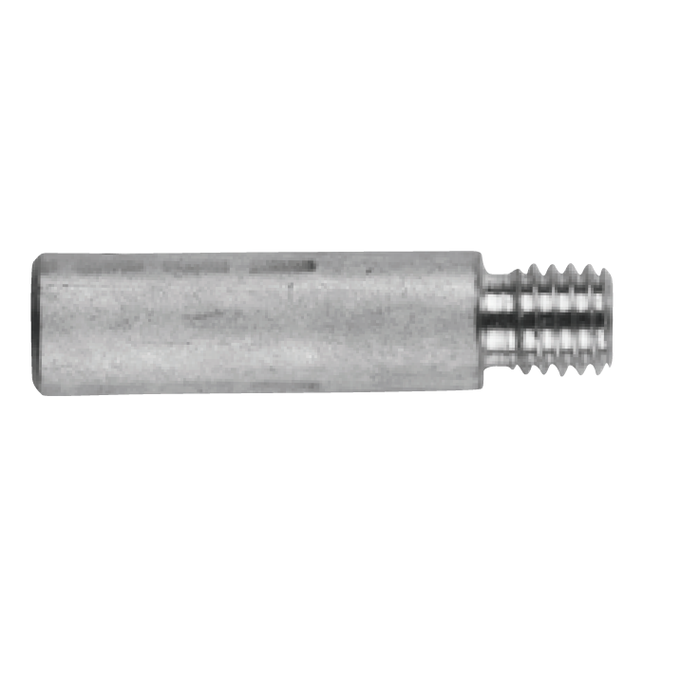

Tecnoseal 02130 MAN Diesel Zinc Pencil Anode Ø10x30 mm M8 for D2842LE433 / V12-1550
The Tecnoseal 02130 is a zinc sacrificial pencil anode designed for MAN Diesel marine engines, including the D2842LE433 and V12-1550 models. It provides corrosion protection for metallic components in marine engine cooling systems by acting as a replaceable sacrificial zinc element.
The anode features a cylindrical zinc body measuring 10 mm (0.39 in) in diameter and 30 mm (1.18 in) in length. Its integrated threaded mounting extension measures 10 mm (0.39 in) and uses an M8 connection for installation into a compatible existing mounting fitting.
Weighing 0.03 kg (0.07 lbs), the Tecnoseal 02130 uses the T1 pencil configuration. It is supplied as a zinc anode only, without a brass mounting plug, making it suitable for replacing the consumed sacrificial element while retaining the existing compatible fitting.
Key Features
- Manufacturer: Tecnoseal
- Product Code: 02130
- Compatible Brand: MAN Diesel
- Compatible Engines: D2842LE433, V12-1550
- Product Type: Sacrificial pencil anode
- Material: Zinc
- Configuration: Anode Only
- Body Diameter: 10 mm
- Body Length: 30 mm
- Mounting Thread: M8
- Pencil Type: T1
Technical Specifications
Specification Value Product Code 02130 Material Zinc Diameter (Ø) 10 mm / 0.39 in Body Length (l) 30 mm / 1.18 in Threaded Extension (l1) 10 mm / 0.39 in Mounting Thread (b) M8 Weight 0.03 kg / 0.07 lbs Pencil Type T1 EAN 8058774838789 Supply Zinc anode only, without brass plug
Engine Compatibility
The Tecnoseal 02130 is listed for the following MAN Diesel marine engine models:
- MAN D2842LE433
- MAN V12-1550
It is intended for compatible engine cooling system installations requiring a zinc pencil anode with a 10 mm body diameter, 30 mm body length and M8 threaded mounting extension.
Installation and Replacement
The Tecnoseal 02130 is designed to fit into a compatible existing mounting plug. Its 10 mm diameter zinc body has a length of 30 mm, while the M8 threaded extension measures 10 mm.
Before ordering, check the existing anode dimensions, mounting thread and MAN engine model. The sacrificial zinc element should be inspected periodically and replaced when sufficiently consumed by corrosion.
Supply: One zinc pencil anode without brass mounting plug.
-
