Tecnoseal Martec Zinc Pencil Anodes with Brass Plugs

Tecnoseal Martec Zinc Pencil Anodes with Brass Plugs – 1/4" & 3/8" BSPT

Tecnoseal Martec zinc pencil anodes are complete sacrificial anode assemblies designed for compatible marine cooling systems and heat exchangers. Each model combines a cylindrical zinc anode with a brass mounting plug, providing a replaceable component that helps protect metallic cooling system parts against galvanic corrosion.

The range includes four models with zinc rod diameters of 10 and 12 mm and lengths from 15 to 40 mm. The Tecnoseal 02150T, 02151T and 02152T feature 1/4" BSPT tapered mounting threads, while the larger 02153T uses a 3/8" BSPT connection. All versions have a 17 mm brass plug head and use the 2T pencil configuration.

The zinc rod dimensions differ between models, allowing replacement according to the existing Martec installation. The 02150T measures 10 x 15 mm, the 02151T measures 10 x 26 mm, the 02152T measures 10 x 40 mm, and the 02153T measures 12 x 40 mm. Complete assembly weights range from 0.02 to 0.06 kg.

These Tecnoseal anodes correspond to Martec original part numbers 950-7300, 950-7301, 950-7302 and 950-7304. All four models are supplied complete with brass mounting plugs.

Key Features

• Manufacturer: Tecnoseal
• Compatible Brand: Martec
• Product Type: Sacrificial pencil anode with brass plug
• Anode Material: Zinc
• Plug Material: Brass
• Configuration: Complete with Brass Plug
• Available Models: 02150T, 02151T, 02152T, 02153T
• Zinc Rod Diameters: 10 and 12 mm
• Zinc Rod Lengths: 15, 26 and 40 mm
• Mounting Threads: 1/4" and 3/8" BSPT
• Brass Plug Head: 17 mm
• Pencil Type: 2T
• Weight Range: 0.02–0.06 kg

Available Models and Technical Specifications

Individual Model Specifications

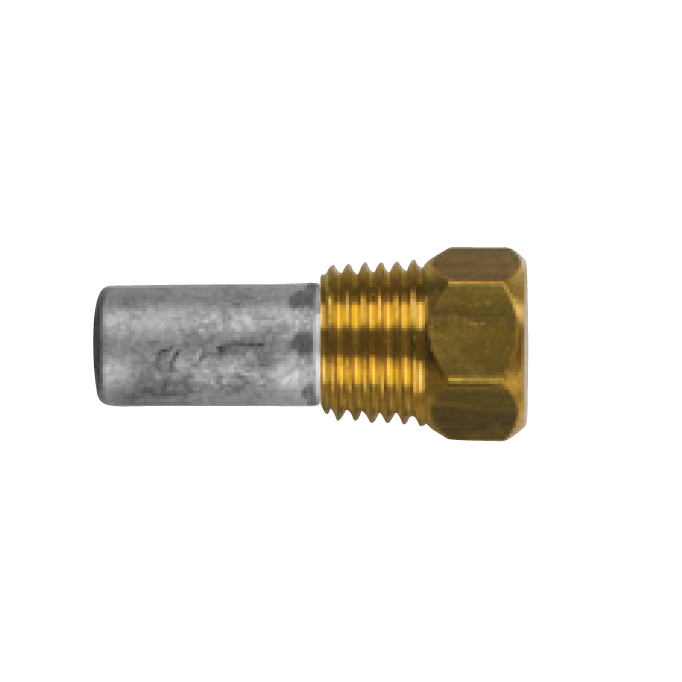

Tecnoseal 02150T – Martec Zinc Pencil Anode Ø10 x 15 mm with 1/4" BSPT Brass Plug

The Tecnoseal 02150T features a compact zinc pencil anode measuring 10 mm (0.39 in) in diameter and 15 mm (0.59 in) in length. It is supplied with a brass mounting plug featuring a 1/4" BSPT tapered external thread and a 17 mm (0.67 in) head.

The complete assembly weighs 0.03 kg (0.07 lbs) and corresponds to Martec original part number 950-7300. Its compact zinc element and 2T configuration make it suitable for compatible Martec cooling system installations requiring these dimensions.

• Product Code: 02150T
• Original Part Number: 950-7300
• Anode Material: Zinc
• Plug Material: Brass
• Diameter (Ø): 10 mm (0.39 in)
• Length (l): 15 mm (0.59 in)
• External Plug Thread (a): 1/4" BSPT (Gas Conico)
• Plug Head (c): 17 mm (0.67 in)
• Weight: 0.03 kg (0.07 lbs)
• Pencil Type: 2T
• EAN: 8058774838796
• Supply: Complete with brass plug

Tecnoseal 02151T – Martec Zinc Pencil Anode Ø10 x 26 mm with 1/4" BSPT Brass Plug

The Tecnoseal 02151T combines a 10 mm (0.39 in) diameter zinc rod measuring 26 mm (1.02 in) in length with a brass mounting plug. The plug has a 1/4" BSPT tapered external thread and a 17 mm (0.67 in) head, matching the mounting specifications of the shorter 02150T model.

This assembly weighs 0.02 kg (0.04 lbs) and corresponds to Martec original part number 950-7301. Its longer zinc element provides a different replacement size while retaining the same 1/4" BSPT mounting connection.

• Product Code: 02151T
• Original Part Number: 950-7301
• Anode Material: Zinc
• Plug Material: Brass
• Diameter (Ø): 10 mm (0.39 in)
• Length (l): 26 mm (1.02 in)
• External Plug Thread (a): 1/4" BSPT (Gas Conico)
• Plug Head (c): 17 mm (0.67 in)
• Weight: 0.02 kg (0.04 lbs)
• Pencil Type: 2T
• EAN: 8058774838802
• Supply: Complete with brass plug

Tecnoseal 02152T – Martec Zinc Pencil Anode Ø10 x 40 mm with 1/4" BSPT Brass Plug

The Tecnoseal 02152T is equipped with a cylindrical zinc rod measuring 10 mm (0.39 in) in diameter and 40 mm (1.57 in) in length. It includes a brass mounting plug with a 1/4" BSPT tapered external thread and a 17 mm (0.67 in) head.

The complete assembly weighs 0.04 kg (0.09 lbs) and corresponds to Martec original part number 950-7302. It offers the longest 10 mm diameter zinc rod among the three 1/4" BSPT models in this range.

• Product Code: 02152T
• Original Part Number: 950-7302
• Anode Material: Zinc
• Plug Material: Brass
• Diameter (Ø): 10 mm (0.39 in)
• Length (l): 40 mm (1.57 in)
• External Plug Thread (a): 1/4" BSPT (Gas Conico)
• Plug Head (c): 17 mm (0.67 in)
• Weight: 0.04 kg (0.09 lbs)
• Pencil Type: 2T
• EAN: 8058774838819
• Supply: Complete with brass plug

Tecnoseal 02153T – Martec Zinc Pencil Anode Ø12 x 40 mm with 3/8" BSPT Brass Plug

The Tecnoseal 02153T features a larger zinc pencil anode measuring 12 mm (0.47 in) in diameter and 40 mm (1.57 in) in length. Unlike the other models in this selection, its brass mounting plug has a 3/8" BSPT tapered external thread. The plug head measures 17 mm (0.67 in).

Weighing 0.06 kg (0.13 lbs), the complete assembly corresponds to Martec original part number 950-7304. Its larger zinc rod diameter and different mounting thread make it a separate replacement configuration for compatible Martec marine cooling systems.

• Product Code: 02153T
• Original Part Number: 950-7304
• Anode Material: Zinc
• Plug Material: Brass
• Diameter (Ø): 12 mm (0.47 in)
• Length (l): 40 mm (1.57 in)
• External Plug Thread (a): 3/8" BSPT (Gas Conico)
• Plug Head (c): 17 mm (0.67 in)
• Weight: 0.06 kg (0.13 lbs)
• Pencil Type: 2T
• EAN: 8058774838826
• Supply: Complete with brass plug

Original Part Numbers and Cross-References

Application and Compatibility

• Compatible Martec marine cooling systems
• Marine heat exchangers using replaceable sacrificial pencil anodes
• Replacement of complete zinc pencil anode and brass mounting plug assemblies

Model Selection

Select the correct Tecnoseal Martec pencil anode by matching the original Martec part number, zinc rod diameter, rod length and brass plug mounting thread.

The 02150T, 02151T and 02152T share a 10 mm zinc rod diameter and a 1/4" BSPT mounting connection, but have different rod lengths of 15, 26 and 40 mm respectively. The 02153T features a 12 x 40 mm zinc rod and requires a 3/8" BSPT connection.

Although all four models have 17 mm plug heads and the same 2T configuration, their mounting threads and zinc rod dimensions differ. Check the existing assembly before ordering.

Supply: Each model is supplied as one complete zinc pencil anode assembly with brass mounting plug.
