Tecnoseal 2629022 / 40M17601 Kamewa Zinc Small Collar Anode with Straps Ø340 mm

Name: Tecnoseal 2629022 / 40M17601 Kamewa Zinc Small Collar Anode with Straps Ø340 mm
SKU: Tecnoseal 02458BIS
Price: 656.95466487368 USD
Availability: InStock

ID 1405848

$ 656.95

1-2 weeks delivery time

- +

Add to cart

The Tecnoseal 02458BIS is a zinc sacrificial small collar anode with mounting straps, designed for Kamewa marine propulsion systems and corresponding to OEM references 2629022 and 40M17601. It features a circular ring-shaped body with an inner diameter (Ø) of 250 mm (9.84 in), an outer diameter (Ø1) of 340 mm (13.39 in) and a height (h) of 20 mm (0.79 in). The internal mounting dimension (i) is 225 mm (8.86 in), with mounting openings (c) measuring 12 x 18 mm (0.47 x 0.71 in). Weighing 4.65 kg (10.25 lbs), this zinc anode provides sacrificial corrosion protection for compatible Kamewa propulsion components.

Description
Ask a Question

Tecnoseal 2629022 / 40M17601 Kamewa Zinc Small Collar Anode with Straps Ø340 mm

The Tecnoseal 02458BIS is a zinc sacrificial small collar anode with integrated mounting straps, designed for Kamewa marine propulsion systems. Corresponding to OEM references 2629022 and 40M17601, this replacement anode provides sacrificial corrosion protection for compatible metallic propulsion components.

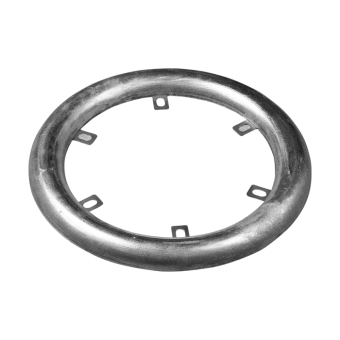

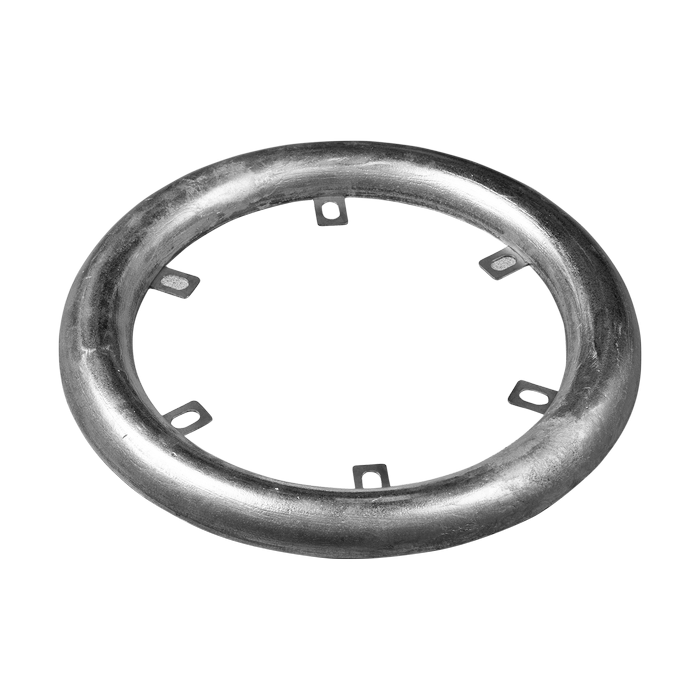

The anode features a circular ring-shaped body with multiple mounting straps positioned around its inner circumference. According to the Tecnoseal catalogue, it measures 340 mm (13.39 in) in outer diameter (Ø1), 250 mm (9.84 in) in inner diameter (Ø) and 20 mm (0.79 in) in height (h). The internal mounting dimension (i) measures 225 mm (8.86 in), while the mounting openings (c) measure 12 x 18 mm (0.47 x 0.71 in).

Manufactured from zinc, the Tecnoseal 02458BIS weighs 4.65 kg (10.25 lbs). Its ring-shaped construction with integrated mounting straps is intended for compatible Kamewa marine propulsion installations.

Technical Specifications

Manufacturer	Tecnoseal
Product Code	02458BIS
Product Type	Small Collar Sacrificial Anode with Straps
Compatible Brand	Kamewa / Rolls-Royce
OEM References	2629022, 40M17601
Material	Zinc
Weight	4.65 kg (10.25 lbs)
Inner Diameter (Ø)	250 mm (9.84 in)
Outer Diameter (Ø1)	340 mm (13.39 in)
Height (h)	20 mm (0.79 in)
Internal Mounting Dimension (i)	225 mm (8.86 in)
Mounting Opening (c)	12 x 18 mm (0.47 x 0.71 in)
EAN	8052744983264

Dimensions and Mounting

Inner Diameter (Ø): 250 mm (9.84 in)
Outer Diameter (Ø1): 340 mm (13.39 in)
Height (h): 20 mm (0.79 in)
Internal Mounting Dimension (i): 225 mm (8.86 in)
Mounting Opening (c): 12 x 18 mm (0.47 x 0.71 in)
Construction: Circular collar with multiple integrated internal mounting straps

Application

Kamewa marine propulsion systems

OEM and Product Cross-References

Kamewa OEM: 2629022
Kamewa OEM: 40M17601
Tecnoseal Zinc: 02458BIS

Key Features

Zinc sacrificial small collar anode for Kamewa marine propulsion equipment.
340 mm outer diameter and 250 mm inner diameter.
20 mm collar height.
Multiple internal mounting straps with 12 x 18 mm openings.
225 mm internal mounting dimension.
Corresponds to OEM references 2629022 and 40M17601.
Provides sacrificial corrosion protection for compatible metallic marine propulsion components.

Compatibility: Intended for Kamewa marine propulsion equipment corresponding to OEM references 2629022 and 40M17601. Verify the existing collar dimensions, mounting strap configuration and Tecnoseal product code 02458BIS before ordering.
