The Tecnoseal 02462-1 is a zinc sacrificial disc anode designed for Kamewa marine propulsion equipment, corresponding to OEM part number 10108228. It features a circular body measuring 105 mm (4.13 in) in outer diameter and 22 mm (0.87 in) in height, with a 40 mm (1.57 in) recessed mounting diameter and a 12.5 mm (0.49 in) central through-hole. Weighing 1.00 kg (2.20 lbs), this anode provides sacrificial corrosion protection for compatible metallic Kamewa propulsion components.
- Description
- Ask a Question
-

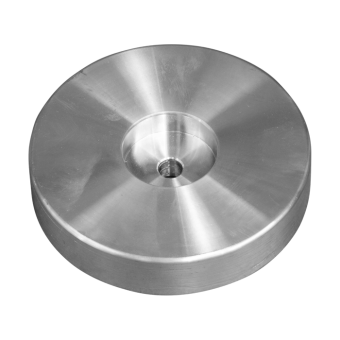

Tecnoseal 10108228 Kamewa Zinc Disc Anode Ø105 mm
The Tecnoseal 02462-1 is a zinc sacrificial disc anode designed for Kamewa marine propulsion equipment. Corresponding to Kamewa OEM part number 10108228, this replacement anode helps protect compatible metallic propulsion components against galvanic corrosion.

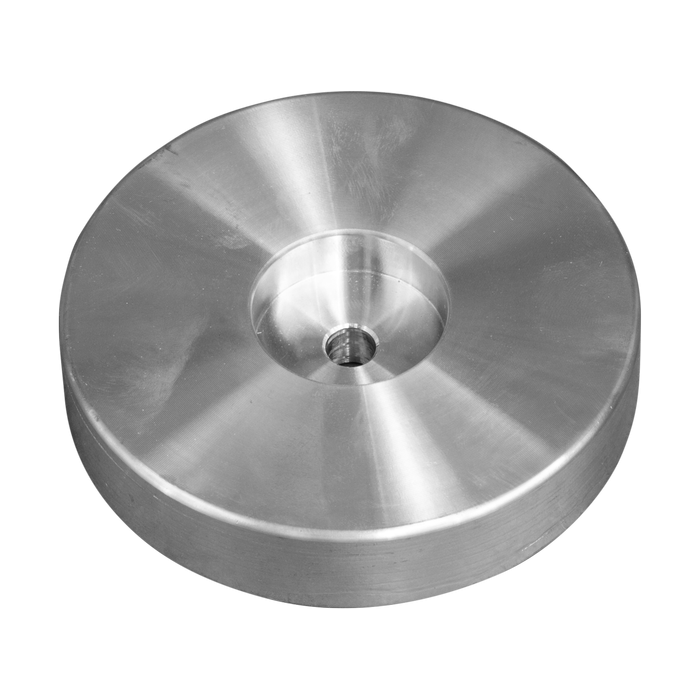

The anode features a circular disc-shaped body with a recessed central mounting hole. According to the Tecnoseal catalogue, it measures 105 mm (4.13 in) in outer diameter and 22 mm (0.87 in) in height. The mounting recess has a diameter of 40 mm (1.57 in), while the central through-hole measures 12.5 mm (0.49 in) in diameter.
Manufactured from zinc, the Tecnoseal 02462-1 weighs 1.00 kg (2.20 lbs). Its recessed disc configuration is intended for compatible Kamewa marine propulsion installations.
Technical Specifications
Manufacturer Tecnoseal Product Code 02462-1 Product Type Disc Sacrificial Anode Compatible Brand Kamewa OEM Reference 10108228 Material Zinc Weight 1.00 kg (2.20 lbs) Outer Diameter (Ø) 105 mm (4.13 in) Mounting Recess Diameter (Ø1) 40 mm (1.57 in) Central Through-Hole Diameter (Ø2) 12.5 mm (0.49 in) Height (h) 22 mm (0.87 in) EAN 8058774838680
Dimensions and Mounting
- Outer Diameter (Ø): 105 mm (4.13 in)
- Mounting Recess Diameter (Ø1): 40 mm (1.57 in)
- Central Through-Hole Diameter (Ø2): 12.5 mm (0.49 in)
- Height (h): 22 mm (0.87 in)
- Construction: Circular disc with recessed central mounting hole
Application
- Kamewa marine propulsion equipment
OEM and Product Cross-References
- Kamewa OEM: 10108228
- Tecnoseal Zinc: 02462-1
Key Features
- Zinc sacrificial disc anode for Kamewa marine propulsion applications.
- 105 mm outer diameter and 22 mm height.
- 40 mm recessed mounting diameter.
- 12.5 mm central through-hole.
- Corresponds to Kamewa OEM part number 10108228.
- Provides sacrificial corrosion protection for compatible metallic propulsion components.
Compatibility: Intended for Kamewa marine propulsion equipment corresponding to OEM reference 10108228. Verify the existing anode dimensions and mounting configuration before ordering.
-
