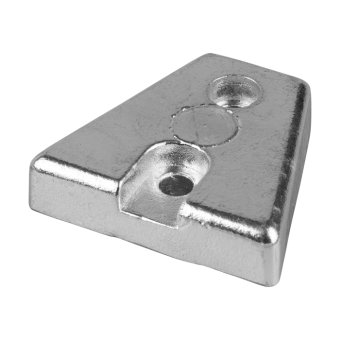

Tecnoseal 872175 Kamewa Jet FF550 Zinc Plate Anode 60x56x14 mm

Name: Tecnoseal 872175 Kamewa Jet FF550 Zinc Plate Anode 60x56x14 mm
SKU: Tecnoseal 02463
Price: 28.525892445806 USD
Availability: InStock

ID 1405852

$ 28.53

1-2 weeks delivery time

- +

Add to cart

The Tecnoseal 02463 is a zinc sacrificial plate anode designed for the Kamewa Jet FF550 waterjet propulsion system, corresponding to OEM part number 872175 and equivalent reference 00723. It features a trapezoidal body measuring 60 mm (2.36 in) in length, 56 mm (2.20 in) in width and 14 mm (0.55 in) in height, with a narrower end dimension of 26 mm (1.02 in). The mounting configuration includes a 28 mm (1.10 in) dimension, 7 mm (0.28 in) through-holes and 13 mm (0.51 in) mounting recesses. Weighing 0.22 kg (0.49 lbs), this zinc anode provides sacrificial corrosion protection for compatible Kamewa Jet FF550 components.

Description
Ask a Question

Tecnoseal 872175 Kamewa Jet FF550 Zinc Plate Anode 60x56x14 mm

The Tecnoseal 02463 is a zinc sacrificial plate anode designed for the Kamewa Jet FF550 waterjet propulsion system. Corresponding to Kamewa OEM part number 872175 and equivalent reference 00723, this replacement anode helps protect compatible metallic propulsion components against galvanic corrosion.

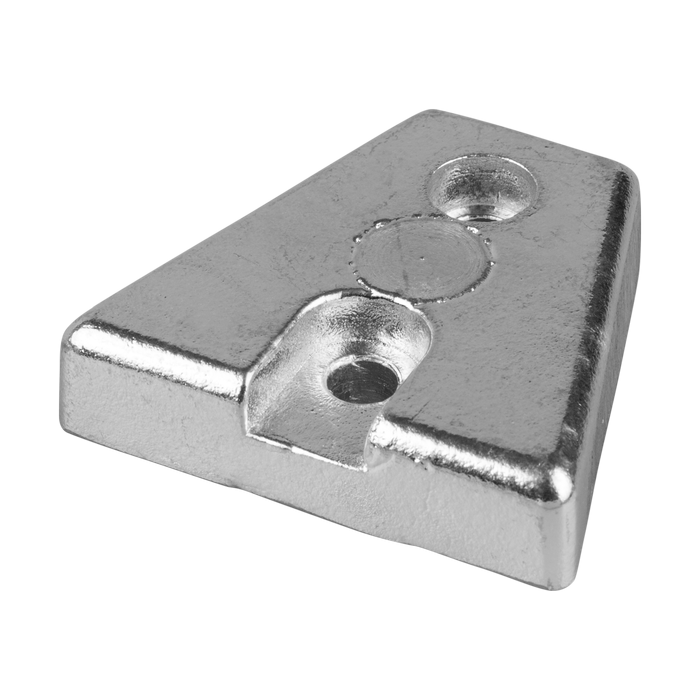

The anode features a trapezoidal plate-shaped body with two recessed mounting holes. According to the Tecnoseal catalogue, it measures 60 mm (2.36 in) in length, 56 mm (2.20 in) in width and 14 mm (0.55 in) in height. The narrower end measures 26 mm (1.02 in). Additional mounting dimensions include i = 28 mm (1.10 in), a through-hole diameter (Ø) of 7 mm (0.28 in) and a recess diameter (Ø1) of 13 mm (0.51 in).

Manufactured from zinc, the Tecnoseal 02463 weighs 0.22 kg (0.49 lbs). Its compact trapezoidal construction and two-hole mounting arrangement are intended for compatible Kamewa Jet FF550 installations.

Technical Specifications

Manufacturer	Tecnoseal
Product Code	02463
Product Type	Plate Sacrificial Anode
Compatible Brand	Kamewa / Rolls-Royce
Compatible Model	Kamewa Jet FF550
OEM Reference	872175
Equivalent Reference	00723
Material	Zinc
Weight	0.22 kg (0.49 lbs)
Length (l)	60 mm (2.36 in)
Narrow End Width (l1)	26 mm (1.02 in)
Width (a)	56 mm (2.20 in)
Height (h)	14 mm (0.55 in)
Mounting Dimension (i)	28 mm (1.10 in)
Through-Hole Diameter (Ø)	7 mm (0.28 in)
Recess Diameter (Ø1)	13 mm (0.51 in)
EAN	8058774838697

Dimensions and Mounting

Length (l): 60 mm (2.36 in)
Narrow End Width (l1): 26 mm (1.02 in)
Width (a): 56 mm (2.20 in)
Height (h): 14 mm (0.55 in)
Mounting Dimension (i): 28 mm (1.10 in)
Through-Hole Diameter (Ø): 7 mm (0.28 in)
Mounting Recess Diameter (Ø1): 13 mm (0.51 in)
Construction: Trapezoidal plate with two recessed mounting holes

Compatible Kamewa Jet Models

Kamewa Jet FF550

OEM and Product Cross-References

Kamewa OEM: 872175
Tecnoseal Zinc: 02463
Tecnoseal Equivalent: 00723

Key Features

Zinc sacrificial plate anode for Kamewa Jet FF550 propulsion equipment.
Compact trapezoidal body measuring 60 x 56 x 14 mm.
Two recessed mounting holes.
7 mm through-hole diameter and 13 mm mounting recess diameter.
28 mm mounting dimension.
Corresponds to Kamewa OEM part number 872175.
Cross-referenced with Tecnoseal product 00723.
Provides sacrificial corrosion protection for compatible metallic waterjet propulsion components.

Compatibility: Designed for Kamewa Jet FF550 waterjet propulsion systems, corresponding to OEM reference 872175. Verify the existing anode dimensions and mounting configuration before ordering.
