Tecnoseal 07-0430 Williams Jet Tender Zinc Bolt-On Plate Anode 98x38x13 mm

Name: Tecnoseal 07-0430 Williams Jet Tender Zinc Bolt-On Plate Anode 98x38x13 mm
SKU: Tecnoseal TEC-S-Z1
Price: 29.173359232005 USD
Availability: InStock

ID 1405863

$ 29.17

1-2 weeks delivery time

- +

Add to cart

The Tecnoseal TEC-S-Z1 is a zinc sacrificial bolt-on plate anode designed for Williams Jet Tender applications, corresponding to original part number 07-0430. Its rectangular body measures 98 mm (3.86 in) in length, 38 mm (1.50 in) in width and 13 mm (0.51 in) in height. Two countersunk mounting holes, each 8 mm (0.31 in) in diameter, are positioned 38 mm (1.50 in) apart. Weighing 0.26 kg (0.57 lbs), the anode provides corrosion protection for compatible metallic components of Williams jet tenders.

Description
Ask a Question

Tecnoseal 07-0430 Williams Jet Tender Zinc Bolt-On Plate Anode 98x38x13 mm

The Tecnoseal TEC-S-Z1 is a zinc sacrificial bolt-on plate anode designed for Williams Jet Tender applications. Corresponding to original part number 07-0430, it helps protect compatible metallic components against galvanic corrosion in marine environments.

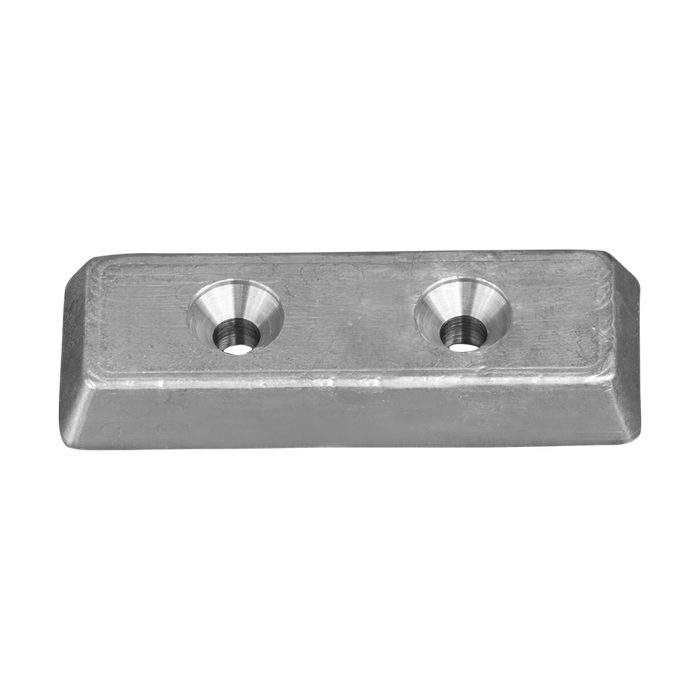

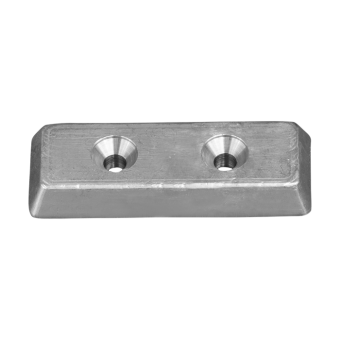

The anode has a rectangular body with chamfered edges and two countersunk mounting holes. It measures 98 mm (3.86 in) in length, 38 mm (1.50 in) in width and 13 mm (0.51 in) in height. The mounting holes measure 8 mm (0.31 in) in diameter and have a centre-to-centre spacing of 38 mm (1.50 in), allowing the anode to be secured to a compatible mounting surface.

Made from zinc, the Tecnoseal TEC-S-Z1 weighs 0.26 kg (0.57 lbs). Its compact bolt-on construction makes it suitable as a replacement sacrificial anode for Williams Jet Tender equipment using original part number 07-0430.

Technical Specifications

Manufacturer	Tecnoseal
Product Code	TEC-S-Z1
Product Type	Bolt-On Plate Sacrificial Anode
Compatible Brand	Williams Jet Tender
Original Part Number	07-0430
Material	Zinc
Weight	0.26 kg (0.57 lbs)
Length (l)	98 mm (3.86 in)
Width (a)	38 mm (1.50 in)
Height (h)	13 mm (0.51 in)
Hole Spacing (i)	38 mm (1.50 in)
Mounting Hole Diameter (Ø)	8 mm (0.31 in)
Mounting Holes	2 countersunk holes
EAN	8059617816780

Dimensions and Mounting

Length (l): 98 mm (3.86 in)
Width (a): 38 mm (1.50 in)
Height (h): 13 mm (0.51 in)
Mounting Hole Spacing (i): 38 mm (1.50 in)
Mounting Hole Diameter (Ø): 8 mm (0.31 in)
Construction: Rectangular plate with chamfered edges and two countersunk mounting holes

Application

Williams Jet Tender marine applications
Replacement for original part number 07-0430

OEM and Product Cross-References

Williams Original Part Number: 07-0430
Tecnoseal Zinc: TEC-S-Z1

Key Features

Zinc sacrificial bolt-on plate anode for Williams Jet Tender applications.
Compact rectangular body measuring 98 x 38 x 13 mm.
Two countersunk mounting holes with 8 mm diameter.
38 mm centre-to-centre mounting hole spacing.
Corresponds to Williams original part number 07-0430.
Provides sacrificial corrosion protection for compatible metallic marine components.

Compatibility: Intended for Williams Jet Tender equipment corresponding to original part number 07-0430. Verify the existing anode dimensions and mounting hole spacing before ordering.
