ID
1404458
$ 21.07
1-2 weeks delivery time
Type:
- Zinc
- Magnesium
Item:
- 270 g
- 70 g

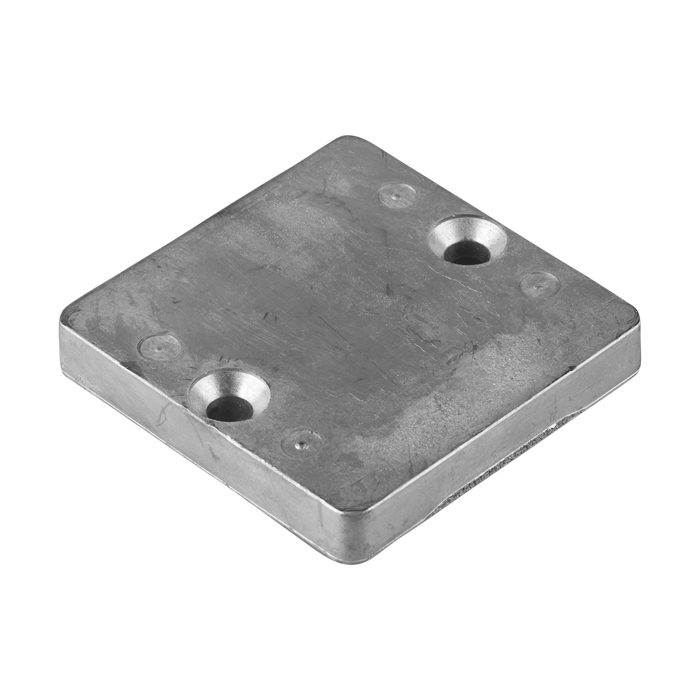

The Tecnoseal 00808 Series is a square plate anode designed for Mercruiser Alpha One and Bravo One outdrives, corresponding to OEM part number 34762 and additional catalogue reference 00210. Available in zinc (00808) and magnesium (00808MG), it provides sacrificial corrosion protection for compatible sterndrive components. The anode measures 64 × 64 × 10 mm (2.52 × 2.52 × 0.39 in), with a mounting hole centre distance of 50 mm (1.97 in) and a hole diameter of 7 mm (0.28 in). The zinc version weighs 0.27 kg (270 g / 0.60 lbs), while the magnesium version weighs 0.07 kg (70 g / 0.15 lbs). Both versions share identical dimensions and mounting specifications.
- Description
- Ask a Question
-

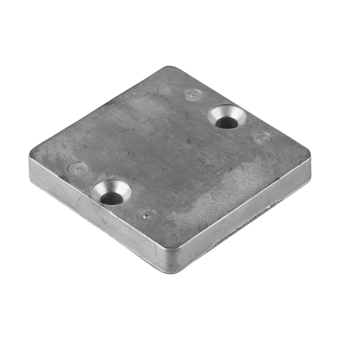

Tecnoseal 34762 Mercruiser Square Plate Anode 64×64×10 mm for Alpha One & Bravo One
The Tecnoseal 00808 Series consists of square plate anodes designed for Mercruiser Alpha One and Bravo One outdrives. These sacrificial anodes help protect compatible metallic sterndrive components against galvanic corrosion. According to the Tecnoseal catalogue, they correspond to original part number 34762 and are also listed under reference 00210.
The anode features a square body with two mounting holes. It measures 64 mm (2.52") in length, 64 mm (2.52") in width and 10 mm (0.39") in height. The mounting holes have a centre-to-centre distance of 50 mm (1.97") and a diameter of 7 mm (0.28"). Two material versions are available: zinc (00808) and magnesium (00808MG). Both have identical dimensions but different weights.
Technical Specifications
Manufacturer Tecnoseal Product Type Square Plate Anode Application Mercruiser Alpha One and Bravo One Outdrives OEM Part Number 34762 Additional Catalogue Reference 00210 Available Materials Zinc, Magnesium Mounting Two Holes, 50 mm Centre Distance
Available Versions
Tecnoseal Part Number Material Weight 00808 Zinc 0.27 kg (0.60 lbs) 00808MG Magnesium 0.07 kg (0.15 lbs)
Dimensions and Mounting
Catalogue Dimension Measurement Length (l) 64 mm (2.52") Width (a) 64 mm (2.52") Height (h) 10 mm (0.39") Mounting Hole Centre Distance (i) 50 mm (1.97") Mounting Hole Diameter (Ø) 7 mm (0.28")
Product Configurations
Tecnoseal 00808 – Zinc Mercruiser Square Plate Anode
- Material: Zinc
- Weight: 0.27 kg (0.60 lbs)
- Dimensions: 64 × 64 × 10 mm
- Mounting Hole Centre Distance: 50 mm
- Mounting Hole Diameter: 7 mm
- OEM Reference: 34762
Tecnoseal 00808MG – Magnesium Mercruiser Square Plate Anode
- Material: Magnesium
- Weight: 0.07 kg (0.15 lbs)
- Dimensions: 64 × 64 × 10 mm
- Mounting Hole Centre Distance: 50 mm
- Mounting Hole Diameter: 7 mm
- OEM Reference: 34762
OEM and Catalogue Cross-References
- Mercruiser OEM Part Number: 34762
- Additional Tecnoseal Reference: 00210
- Tecnoseal 00808: Zinc version
- Tecnoseal 00808MG: Magnesium version
Key Features
- Square plate anode for Mercruiser Alpha One and Bravo One outdrives.
- Corresponds to OEM part number 34762.
- Available in zinc and magnesium versions.
- Provides sacrificial corrosion protection for compatible sterndrive components.
- Square plate design with two mounting holes.
- Dimensions: 64 × 64 × 10 mm.
- Mounting hole centre distance: 50 mm.
- Mounting hole diameter: 7 mm.
- Identical dimensions for both material versions.
- Zinc version: Tecnoseal 00808, weight 270 g.
- Magnesium version: Tecnoseal 00808MG, weight 70 g.
-
