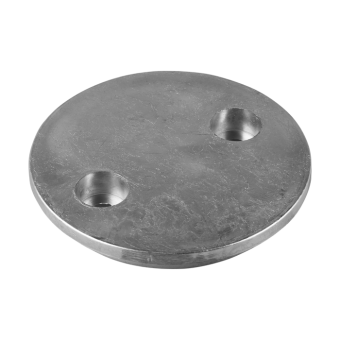

Tecnoseal 847635001 Mercury Racing Gearbox Anode

Name: Tecnoseal 847635001 Mercury Racing Gearbox Anode
SKU: Tecnoseal 00838

ID 1404562

$ 60.84

1-2 weeks delivery time

Type:

Zinc
Magnesium
Aluminium

Item:

250 g
1000 g
400 g

The Tecnoseal 00838 Series is a circular sacrificial gearbox anode designed for Mercury Racing marine applications, corresponding to OEM part number 847635001. Available in zinc (00838), aluminium (00838AL) and magnesium (00838MG), it helps protect compatible submerged gearbox components against galvanic corrosion. The anode features a round plate with two mounting holes and a recessed, ribbed mounting surface. Its dimensions are 129 mm (5.08") in outer diameter, 17 mm (0.67") in height, 112 mm (4.41") for Ø1 and 76 mm (2.99") for mounting hole spacing (i). The mounting holes have diameters Ø2 = 11 mm (0.43") and Ø3 = 24 mm (0.94"). The zinc version weighs 1.00 kg (2.20 lbs), aluminium 0.40 kg (0.88 lbs) and magnesium 0.25 kg (0.55 lbs). All three versions have identical dimensions.

Description
Ask a Question

Tecnoseal 847635001 Mercury Racing Gearbox Anode

The Tecnoseal 00838 Series consists of sacrificial gearbox anodes designed for Mercury Racing marine applications. These anodes help protect compatible submerged gearbox components against galvanic corrosion. The corresponding original part number is 847635001.

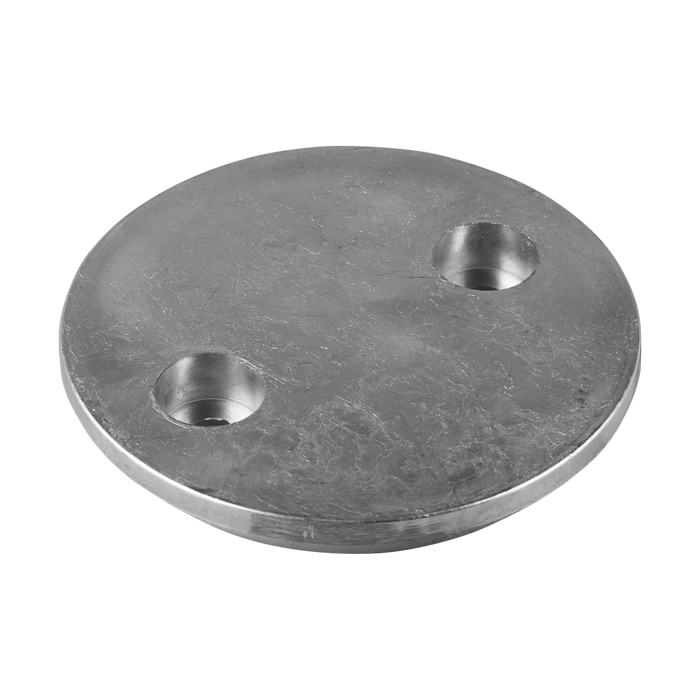

The anode features a circular plate with two mounting holes and a recessed, ribbed mounting surface. It measures 129 mm (5.08") in outer diameter and 17 mm (0.67") in height. Additional catalogue dimensions are Ø1 = 112 mm (4.41"), mounting hole spacing (i) = 76 mm (2.99"), Ø2 = 11 mm (0.43") and Ø3 = 24 mm (0.94"). Zinc, aluminium and magnesium versions are available with identical dimensions.

Technical Specifications

Manufacturer	Tecnoseal
Product Series	00838
Product Type	Gearbox Anode
Application	Mercury Racing
OEM Part Number	847635001
Available Materials	Zinc, Aluminium, Magnesium
Mounting	Two Mounting Holes

Available Versions and Osculati Cross-References

Tecnoseal Part Number	Material	Osculati Reference	Weight
00838	Zinc	Not specified	1.00 kg (2.20 lbs)
00838AL	Aluminium	43.424.41	0.40 kg (0.88 lbs)
00838MG	Magnesium	43.427.40	0.25 kg (0.55 lbs)

Dimensions and Mounting

Catalogue Dimension	Measurement
Height (h)	17 mm (0.67")
Mounting Hole Spacing (i)	76 mm (2.99")
Outer Diameter (Ø)	129 mm (5.08")
Diameter (Ø1)	112 mm (4.41")
Diameter (Ø2)	11 mm (0.43")
Diameter (Ø3)	24 mm (0.94")
