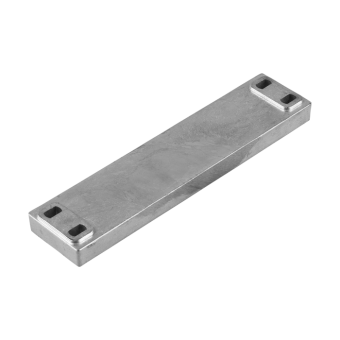

Tecnoseal 6AW-45251-00 Yamaha 200–300 HP Engine Bracket Bar Anode

ID 1405450

$ 54.26

1-2 weeks delivery time

Type:

Zinc
Magnesium
Aluminium

Item:

160 g
630 g
260 g

The Tecnoseal 01112-1 series consists of sacrificial engine bracket bar anodes designed for Yamaha 200–300 HP outboard motors, replacing OEM part number 6AW-45251-00. Each anode features a straight rectangular profile with longitudinal ribs on the upper surface and elongated mounting slots at both ends, providing sacrificial protection against galvanic corrosion of metallic outboard engine bracket components. The anode measures 201 mm in overall length, 47 mm in width and 17 mm in height, with 6.5 × 11 mm mounting slots and a mounting dimension (i) of 180 mm. Available in zinc (01112-1, 630 g), aluminium (01112-1AL, 260 g) and magnesium (01112-1MG, 160 g), all three versions share identical dimensions and mounting geometry for compatible Yamaha engine brackets.

Description
Ask a Question

Tecnoseal 6AW-45251-00 Yamaha 200–300 HP Engine Bracket Bar Anode

The Tecnoseal 01112-1 series consists of sacrificial engine bracket bar anodes designed for Yamaha 200–300 HP outboard motors. Compatible with Yamaha OEM part number 6AW-45251-00, these replacement anodes help protect metallic engine bracket components against galvanic corrosion by providing a replaceable sacrificial metal surface.

Each anode features a straight rectangular bar with longitudinal ribs across its upper surface and elongated mounting slots at both ends. Unlike curved engine bracket anodes, this model has a flat, elongated profile intended for compatible Yamaha mounting arrangements. Its sacrificial metal construction helps reduce corrosion of surrounding metallic components while allowing the anode to be replaced during routine maintenance.

The anode measures 201 mm (7.91 in) in overall length, 47 mm (1.85 in) in width and 17 mm (0.67 in) in height. The elongated mounting slots measure 6.5 × 11 mm (0.26 × 0.43 in), with a mounting dimension (i) of 180 mm (7.09 in).

Three material versions are available with identical dimensions and mounting geometry. The zinc version, Tecnoseal 01112-1, weighs 0.63 kg and corresponds to Osculati 43.254.04. The aluminium version, Tecnoseal 01112-1AL, weighs 0.26 kg and corresponds to Osculati 43.254.05. The magnesium version, Tecnoseal 01112-1MG, weighs 0.16 kg and corresponds to Osculati 43.254.06. These material options allow the appropriate anode to be selected according to the vessel's operating water conditions.

Technical Specifications

Manufacturer	Tecnoseal
Product Type	Engine Bracket Bar Anode
Compatible Manufacturer	Yamaha
Compatible Outboards	200–300 HP
Yamaha OEM Reference	6AW-45251-00
Available Materials	Zinc, Aluminium, Magnesium
Construction	Straight rectangular bar with longitudinal ribs
Mounting Configuration	Elongated slots at both ends

Available Versions and Cross-References

Tecnoseal Code	Material	Weight	Osculati Reference
01112-1	Zinc	0.63 kg (1.39 lbs)	43.254.04
01112-1AL	Aluminium	0.26 kg (0.57 lbs)	43.254.05
01112-1MG	Magnesium	0.16 kg (0.37 lbs)	43.254.06

Dimensions and Mounting Specifications

Overall Length (l)	201 mm (7.91 in)
Width (a)	47 mm (1.85 in)
Mounting Slot Dimensions (c)	6.5 × 11 mm (0.26 × 0.43 in)
Height (h)	17 mm (0.67 in)
Mounting Dimension (i)	180 mm (7.09 in)

Product Codes and EAN

Tecnoseal Code	EAN
01112-1	8059617818272
01112-1AL	8059617818289
01112-1MG	8059617818296

Compatibility and OEM References

Compatible Manufacturer: Yamaha
Outboard Power Range: 200–300 HP
Yamaha OEM Part Number: 6AW-45251-00
Zinc Version: Tecnoseal 01112-1 / Osculati 43.254.04
Aluminium Version: Tecnoseal 01112-1AL / Osculati 43.254.05
Magnesium Version: Tecnoseal 01112-1MG / Osculati 43.254.06

Key Features

Designed for compatible Yamaha 200–300 HP outboard motors.
Replacement for Yamaha OEM part number 6AW-45251-00.
Straight rectangular sacrificial bar anode with longitudinal ribs.
Elongated mounting slots at both ends.
Helps protect metallic engine bracket components against galvanic corrosion.
Available in zinc, aluminium and magnesium versions.
Overall dimensions: 201 × 47 × 17 mm.
Mounting slot dimensions: 6.5 × 11 mm.
Mounting dimension (i): 180 mm.
Zinc cross-reference: Osculati 43.254.04.
Aluminium cross-reference: Osculati 43.254.05.
Magnesium cross-reference: Osculati 43.254.06.

Compatibility Note: Before ordering, verify the Yamaha outboard model, OEM part number and existing anode dimensions. Compare the mounting slots and installation geometry with the original engine bracket anode, and select the appropriate sacrificial material for the vessel's operating water conditions.
