Tecnoseal 6E8-45251-02 Yamaha 9.9–15 HP Gear Case Anode

ID 1405462

$ 31.34

1-2 weeks delivery time

Type:

Zinc
Magnesium

Item:

150 g
40 g

The Tecnoseal 01116 series consists of sacrificial gear case anodes designed for Yamaha 9.9–15 HP outboard motors, replacing OEM part number 6E8-45251-02. Each anode features a shaped, triangular plate with a raised circular mounting section and a recessed central fastening hole, helping protect submerged metallic gear case components against galvanic corrosion. It measures 101 mm in length and 60 mm in overall width (a), with a 16 mm mounting recess diameter (Ø) and a 7 mm through-hole diameter (Ø1). Available in zinc (01116, 150 g) and magnesium (01116MG, 40 g), both versions share identical dimensions and mounting geometry, allowing the appropriate sacrificial material to be selected according to the vessel's operating water conditions.

Description
Ask a Question

Tecnoseal 6E8-45251-02 Yamaha 9.9–15 HP Gear Case Anode

The Tecnoseal 01116 series consists of sacrificial gear case anodes designed for Yamaha 9.9–15 HP outboard motors. Compatible with Yamaha OEM part number 6E8-45251-02, these replacement anodes help protect submerged metallic components of the outboard gear case against galvanic corrosion by providing a replaceable sacrificial metal surface.

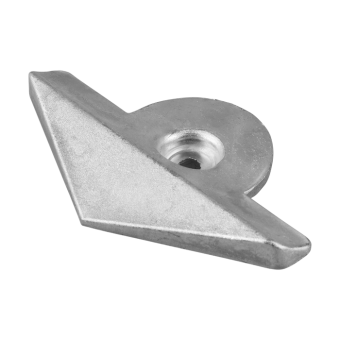

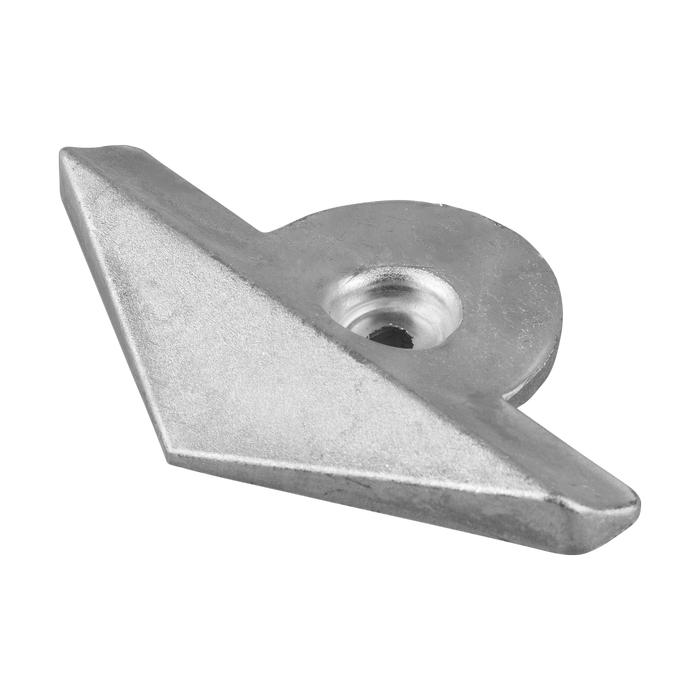

Unlike conventional round or rectangular anodes, this model features a shaped triangular plate with an extended lower section and a raised circular mounting area. A recessed central fastening hole allows the anode to be secured to the corresponding mounting position on compatible Yamaha gear case assemblies. Its distinctive profile and mounting dimensions should be matched to the existing anode before replacement.

The anode measures 101 mm (3.98 in) in overall length and 60 mm (2.36 in) in width. The circular mounting recess has a diameter of 16 mm (0.63 in), while the central through-hole measures 7 mm (0.28 in) in diameter.

Two material versions are available: zinc and magnesium. The zinc version, Tecnoseal 01116, weighs 0.15 kg, while the magnesium version, Tecnoseal 01116MG, weighs 0.04 kg. Both versions share the same dimensions and mounting configuration, allowing the appropriate sacrificial material to be selected for the vessel's operating water conditions.

Technical Specifications

Manufacturer	Tecnoseal
Product Type	Gear Case Anode
Compatible Manufacturer	Yamaha
Compatible Outboards	9.9–15 HP
Yamaha OEM Reference	6E8-45251-02
Available Materials	Zinc, Magnesium
Construction	Shaped triangular plate with raised circular mounting section
Mounting Configuration	Recessed central fastening hole

Available Versions

Tecnoseal Code	Material	Weight	EAN
01116 (Osculati 43.263.00)	Zinc	0.15 kg (0.33 lbs)	8033837065210
01116MG	Magnesium	0.04 kg (0.09 lbs)	8052744983615

Dimensions and Mounting Specifications

Overall Length (l)	101 mm (3.98 in)
Overall Width (a)	60 mm (2.36 in)
Mounting Recess Diameter (Ø)	16 mm (0.63 in)
Mounting Through-Hole Diameter (Ø1)	7 mm (0.28 in)

Compatibility and OEM References

Compatible Manufacturer: Yamaha
Outboard Power Range: 9.9–15 HP
Yamaha OEM Part Number: 6E8-45251-02
Zinc Version: Tecnoseal 01116
Magnesium Version: Tecnoseal 01116MG

Key Features

Designed for compatible Yamaha 9.9–15 HP outboard motors.
Replacement for Yamaha OEM part number 6E8-45251-02.
Shaped triangular sacrificial anode for gear case applications.
Raised circular mounting section with recessed central fastening hole.
Helps protect submerged metallic gear case components against galvanic corrosion.
Available in zinc and magnesium versions.
Overall length: 101 mm.
Overall width: 60 mm.
Mounting recess diameter: 16 mm.
Central through-hole diameter: 7 mm.
Identical dimensions and mounting configuration for both material versions.

Compatibility Note: Before ordering, verify the Yamaha outboard model, OEM part number and existing anode dimensions. Compare the mounting configuration and plate shape with the original gear case anode, and select the appropriate sacrificial material for the vessel's operating water conditions.
