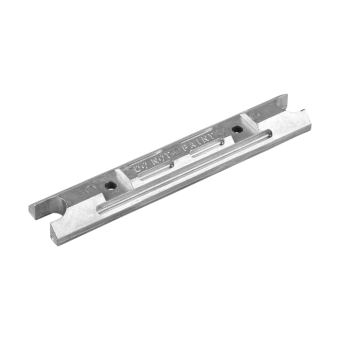

Tecnoseal 6H1-45251-02 Yamaha 40–100 HP Engine Bracket Bar Anode (1990–1999)

ID 1405458

$ 43.07

1-2 weeks delivery time

Type:

Zinc
Magnesium
Aluminium

Item:

510 g
120 g
180 g

The Tecnoseal 01115 series consists of sacrificial engine bracket bar anodes designed for Yamaha 40–100 HP outboard motors manufactured between 1990 and 1999, replacing OEM part number 6H1-45251-02. Each anode features an elongated bar with a longitudinal recessed channel and two mounting holes, helping protect metallic outboard engine bracket components against galvanic corrosion. It measures 203 mm in length, 36 mm in width and 16 mm in height, with a 101 mm mounting-hole spacing (i), 15 mm mounting recess diameter (Ø) and 7 mm through-hole diameter (Ø1). Three material versions are available: zinc (01115, 510 g), aluminium (01115AL, 180 g) and magnesium (01115MG, 120 g). All versions share the same dimensions and mounting configuration for compatible Yamaha outboard installations.

Description
Ask a Question

Tecnoseal 6H1-45251-02 Yamaha 40–100 HP Engine Bracket Bar Anode (1990–1999)

The Tecnoseal 01115 series consists of sacrificial engine bracket bar anodes designed for Yamaha 40–100 HP outboard motors manufactured between 1990 and 1999. Compatible with Yamaha OEM part number 6H1-45251-02, these replacement anodes help protect metallic engine bracket components against galvanic corrosion by providing a replaceable sacrificial metal surface.

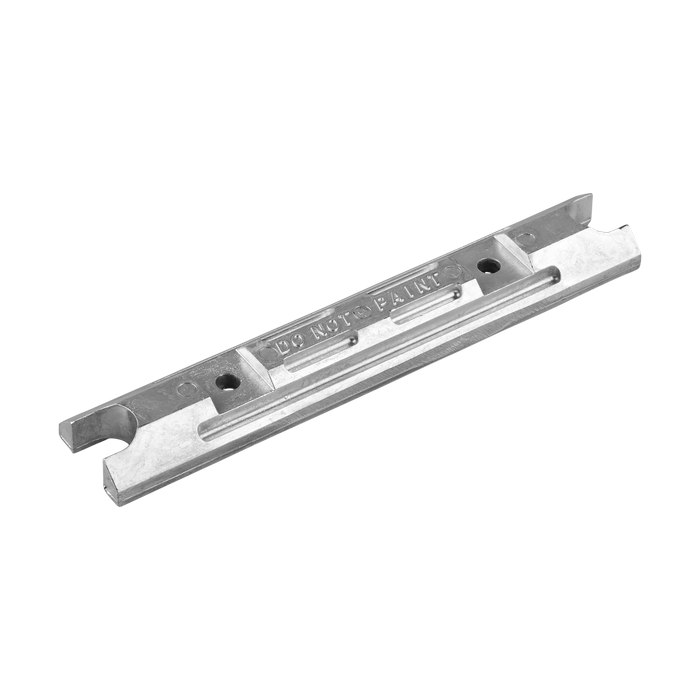

Each anode features an elongated bar with a longitudinal recessed channel and two mounting holes positioned along the body. Its straight profile and mounting arrangement are designed for compatible Yamaha engine brackets, while the sacrificial anode material helps reduce corrosion of surrounding metallic components.

The anode measures 203 mm (7.99 in) in overall length, 36 mm (1.42 in) in width and 16 mm (0.63 in) in height. It features 101 mm (3.98 in) mounting-hole spacing, with 15 mm (0.59 in) mounting recesses and 7 mm (0.28 in) through-holes.

Three material versions are available with identical dimensions and mounting geometry. The zinc version, Tecnoseal 01115, weighs 0.51 kg and corresponds to Osculati 43.254.10. The aluminium version, Tecnoseal 01115AL, weighs 0.18 kg and corresponds to Osculati 43.254.11. The magnesium version, Tecnoseal 01115MG, weighs 0.12 kg and corresponds to Osculati 43.254.12. These material options allow the appropriate sacrificial anode to be selected according to the vessel's operating water conditions.

Technical Specifications

Manufacturer	Tecnoseal
Product Type	Engine Bracket Bar Anode
Compatible Manufacturer	Yamaha
Compatible Outboards	40–100 HP
Production Years	1990–1999
Yamaha OEM Reference	6H1-45251-02
Available Materials	Zinc, Aluminium, Magnesium
Construction	Elongated bar with longitudinal recessed channel
Mounting Configuration	Two recessed mounting holes

Available Versions and Cross-References

Tecnoseal Code	Material	Weight	Osculati Reference
01115	Zinc	0.51 kg (1.12 lbs)	43.254.10
01115AL	Aluminium	0.18 kg (0.40 lbs)	43.254.11
01115MG	Magnesium	0.12 kg (0.26 lbs)	43.254.12

Dimensions and Mounting Specifications

Overall Length (l)	203 mm (7.99 in)
Width (a)	36 mm (1.42 in)
Height (h)	16 mm (0.63 in)
Mounting-Hole Spacing (i)	101 mm (3.98 in)
Mounting Recess Diameter (Ø)	15 mm (0.59 in)
Mounting Through-Hole Diameter (Ø1)	7 mm (0.28 in)

Product Codes and EAN

Tecnoseal Code	EAN
01115	8033837065203
01115AL	8059617815677
01115MG	8059617818302

Compatibility and OEM References

Compatible Manufacturer: Yamaha
Outboard Power Range: 40–100 HP
Production Period: 1990–1999
Yamaha OEM Part Number: 6H1-45251-02
Zinc Version: Tecnoseal 01115 / Osculati 43.254.10
Aluminium Version: Tecnoseal 01115AL / Osculati 43.254.11
Magnesium Version: Tecnoseal 01115MG / Osculati 43.254.12

Key Features

Designed for compatible Yamaha 40–100 HP outboard motors manufactured between 1990 and 1999.
Replacement for Yamaha OEM part number 6H1-45251-02.
Elongated sacrificial bar with a longitudinal recessed channel.
Two recessed mounting holes for compatible engine bracket installations.
Helps protect metallic outboard engine bracket components against galvanic corrosion.
Available in zinc, aluminium and magnesium versions.
Overall dimensions: 203 × 36 × 16 mm.
Mounting-hole spacing: 101 mm.
Mounting recess diameter: 15 mm.
Mounting through-hole diameter: 7 mm.
Zinc cross-reference: Osculati 43.254.10.
Aluminium cross-reference: Osculati 43.254.11.
Magnesium cross-reference: Osculati 43.254.12.

Compatibility Note: Before ordering, verify the Yamaha outboard model, production year, OEM part number and existing anode dimensions. Compare the mounting-hole spacing and installation geometry with the original engine bracket anode, and select the appropriate sacrificial material for the vessel's operating water conditions.
