The Tecnoseal 01119 is a zinc trim tab anode designed for Yamaha sterndrive units manufactured between 1989 and 1990, corresponding to OEM part number 6T5-45371-00. It features a circular sacrificial anode base with an integrated vertical fin and a recessed central mounting hole, helping protect submerged metallic drive components against galvanic corrosion. The anode measures 100 mm in base diameter and 70 mm in overall height, with additional profile dimensions of 8 mm (h1) and 9 mm (h2). The mounting configuration includes a 22 mm recess diameter (Ø1) and an 11 mm through-hole diameter (Ø2). Manufactured from zinc, the Tecnoseal 01119 weighs 0.54 kg (1.19 lbs) and is intended for compatible Yamaha sterndrive applications.
- Description
- Ask a Question
-

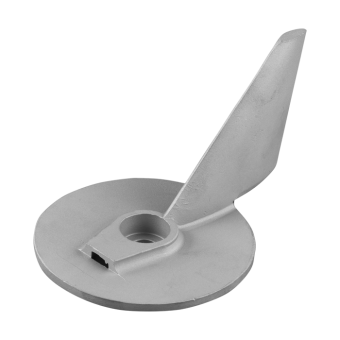

Tecnoseal 6T5-45371-00 Yamaha Sterndrive Trim Tab Anode (1989–1990) Ø100 mm
The Tecnoseal 01119 is a zinc trim tab anode designed for Yamaha sterndrive units manufactured between 1989 and 1990. Corresponding to Yamaha OEM part number 6T5-45371-00, this replacement anode provides sacrificial corrosion protection for submerged metallic components of compatible sterndrive assemblies.

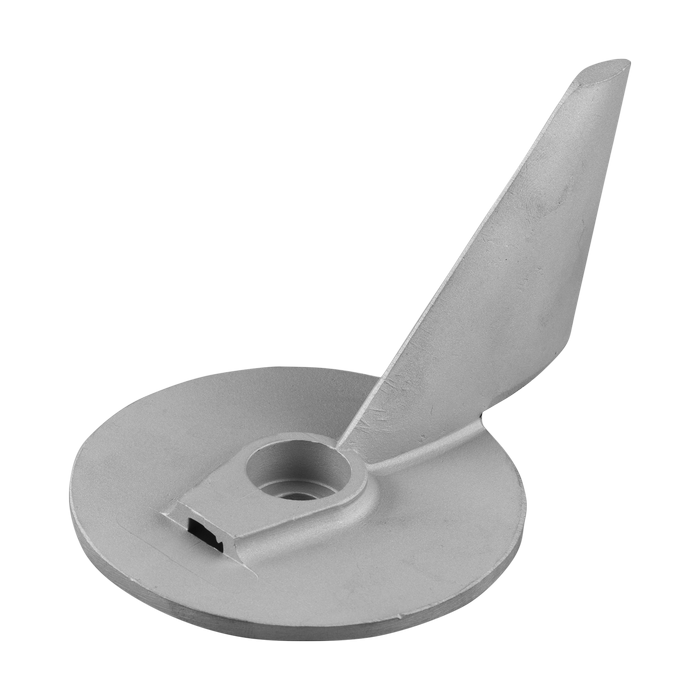

The anode features a circular base with an integrated vertical trim tab fin. This fin-shaped construction corresponds to the original Yamaha sterndrive trim tab configuration, while the zinc body helps protect surrounding metallic components against galvanic corrosion. The central recessed mounting hole allows the anode to be secured to its designated mounting position.
The circular base measures 100 mm (3.94 in) in diameter, while the overall height, including the vertical fin, is 70 mm (2.76 in). Additional profile dimensions are 8 mm (0.31 in) for h1 and 9 mm (0.35 in) for h2. The mounting recess measures 22 mm (0.87 in) in diameter, with an 11 mm (0.43 in) central through-hole. The anode weighs 0.54 kg (1.19 lbs).
Technical Specifications
Manufacturer Tecnoseal Product Code 01119 Product Type Sterndrive Trim Tab Anode Material Zinc Compatible Manufacturer Yamaha Compatible Drive Yamaha Sterndrive Production Years 1989–1990 Yamaha OEM Reference 6T5-45371-00 Weight 0.54 kg (1.19 lbs) EAN 8033837065241
Dimensions and Mounting Specifications
Overall Height (h) 70 mm (2.76 in) Dimension (h1) 8 mm (0.31 in) Dimension (h2) 9 mm (0.35 in) Base Diameter (Ø) 100 mm (3.94 in) Mounting Recess Diameter (Ø1) 22 mm (0.87 in) Mounting Through-Hole Diameter (Ø2) 11 mm (0.43 in)
Compatibility and OEM References
- Compatible Manufacturer: Yamaha
- Application: Yamaha Sterndrive Trim Tab
- Production Period: 1989–1990
- Yamaha OEM Part Number: 6T5-45371-00
- Tecnoseal Reference: 01119
- Material: Zinc
Key Features
- Designed for compatible Yamaha sterndrive units manufactured between 1989 and 1990.
- Replacement for Yamaha OEM part number 6T5-45371-00.
- Circular sacrificial zinc anode with an integrated vertical trim tab fin.
- Helps protect submerged metallic sterndrive components against galvanic corrosion.
- Recessed central mounting hole for compatible sterndrive installation.
- Base diameter: 100 mm.
- Overall height: 70 mm.
- Mounting recess diameter: 22 mm.
- Central through-hole diameter: 11 mm.
- Weight: 540 g.
Compatibility Note: Before ordering, verify the Yamaha sterndrive model, production year, OEM part number and existing trim tab dimensions. Compare the mounting hole configuration and fin profile with the original component to ensure compatibility.
-
