Tecnoseal 6G5-45251-01 / 6G5-45251-02 Yamaha 115–350 HP Engine Bracket Bar Anode

ID 1405446

$ 69.40

1-2 weeks delivery time

Type:

Zinc
Magnesium
Aluminium

Item:

360 g
230 g
920 g

The Tecnoseal 01112 series consists of sacrificial engine bracket bar anodes designed for Yamaha 115–350 HP outboard motors, replacing OEM part numbers 6G5-45251-01 and 6G5-45251-02. The anode features a raised, curved bar profile with ribbed surfaces and mounting points at both ends, helping protect metallic outboard engine bracket components against galvanic corrosion. It measures 202 mm in overall length and 47 mm in width, with a profile height of 52 mm and an 183 mm mounting dimension (i). Additional dimensions include b = 6.5 mm, c = 11 mm and h1 = 17 mm. Available in zinc (01112, 920 g), aluminium (01112AL, 360 g) and magnesium (01112MG, 230 g), all three versions share identical dimensions and mounting geometry for compatible Yamaha outboard installations.

Description
Ask a Question

Tecnoseal 6G5-45251-01 / 6G5-45251-02 Yamaha 115–350 HP Engine Bracket Bar Anode

The Tecnoseal 01112 series consists of sacrificial engine bracket bar anodes designed for Yamaha 115–350 HP outboard motors. Compatible with Yamaha OEM part numbers 6G5-45251-01 and 6G5-45251-02, these replacement anodes help protect metallic engine bracket components against galvanic corrosion by providing a sacrificial metal surface.

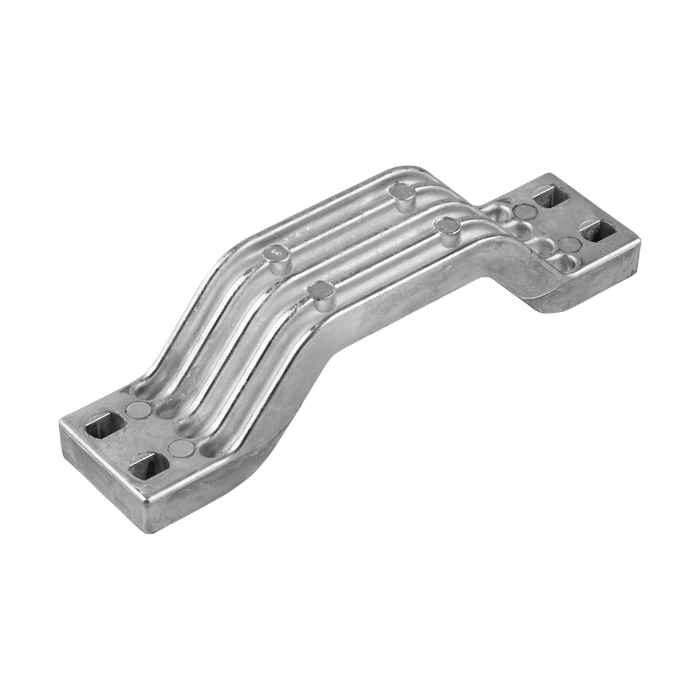

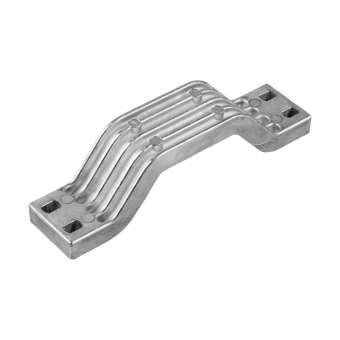

Each anode features an elongated, raised bar profile with a curved central section, ribbed upper surface and mounting points at both ends. The shaped construction follows the mounting profile of compatible Yamaha engine brackets, while the replaceable sacrificial metal helps reduce corrosion of surrounding metallic components. The anode measures 202 mm (7.95 in) in overall length, 47 mm (1.85 in) in width and 52 mm (2.05 in) in maximum profile height, with an additional mounting dimension of 183 mm (7.20 in).

Three material versions are available with identical dimensions and mounting geometry. The zinc version, Tecnoseal 01112, weighs 0.92 kg and corresponds to Osculati 43.254.00. The aluminium version, Tecnoseal 01112AL, weighs 0.36 kg and matches Osculati 43.254.01, while the magnesium version, Tecnoseal 01112MG, weighs 0.23 kg and corresponds to Osculati 43.254.02. These material options allow the appropriate anode to be selected according to the vessel's operating water conditions.

Technical Specifications

Manufacturer	Tecnoseal
Product Type	Engine Bracket Bar Anode
Compatible Manufacturer	Yamaha
Compatible Outboards	115–350 HP
Yamaha OEM References	6G5-45251-01 / 6G5-45251-02
Available Materials	Zinc, Aluminium, Magnesium
Construction	Raised curved bar with mounting points at both ends

Available Versions and Cross-References

Tecnoseal Code	Material	Weight	Osculati Reference
01112	Zinc	0.92 kg (2.03 lbs)	43.254.00
01112AL	Aluminium	0.36 kg (0.79 lbs)	43.254.01
01112MG	Magnesium	0.23 kg (0.51 lbs)	43.254.02

Dimensions and Mounting Specifications

Overall Length (l)	202 mm (7.95 in)
Width (a)	47 mm (1.85 in)
Dimension (b)	6.50 mm (0.26 in)
Dimension (c)	11 mm (0.43 in)
Profile Height (h)	52 mm (2.05 in)
Dimension (h1)	17 mm (0.67 in)
Mounting Dimension (i)	183 mm (7.20 in)

Product Codes and EAN

Tecnoseal Code	EAN
01112	8033837065173
01112AL	8059617815660
01112MG	8059617818265

Compatibility and OEM References

Compatible Manufacturer: Yamaha
Outboard Power Range: 115–350 HP
Yamaha OEM Part Number: 6G5-45251-01
Additional Yamaha OEM Part Number: 6G5-45251-02
Zinc Version: Tecnoseal 01112 / Osculati 43.254.00
Aluminium Version: Tecnoseal 01112AL / Osculati 43.254.01
Magnesium Version: Tecnoseal 01112MG / Osculati 43.254.02

Key Features

Designed for compatible Yamaha 115–350 HP outboard motors.
Replacement for Yamaha OEM references 6G5-45251-01 and 6G5-45251-02.
Elongated, raised bar with a curved central section and ribbed upper surface.
Mounting points at both ends for compatible engine bracket installations.
Helps protect metallic engine bracket components against galvanic corrosion.
Available in zinc, aluminium and magnesium versions.
Overall length: 202 mm; width: 47 mm; profile height: 52 mm.
Mounting dimension (i): 183 mm.
Zinc cross-reference: Osculati 43.254.00.
Aluminium cross-reference: Osculati 43.254.01.
Magnesium cross-reference: Osculati 43.254.02.

Compatibility Note: Before ordering, verify the Yamaha outboard model, OEM part number and existing anode dimensions. Compare the mounting geometry with the original engine bracket anode and select the appropriate sacrificial material for the vessel's operating water conditions.
