The Tecnoseal 01114 is a zinc pencil anode designed for compatible Yamaha marine engine applications, providing sacrificial corrosion protection for metallic components exposed to water. It features a cylindrical zinc body measuring 20 mm in diameter and 39 mm in length, with an M8 threaded mounting stud extending 10 mm from the body. The anode weighs 0.09 kg (0.20 lbs) and is supplied as an individual anode. Its compact cylindrical construction and threaded connection allow installation in compatible Yamaha assemblies requiring a Ø20 × 39 mm zinc anode with an M8 mounting thread.
- Description
- Ask a Question
-

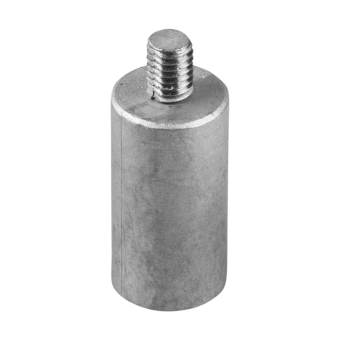

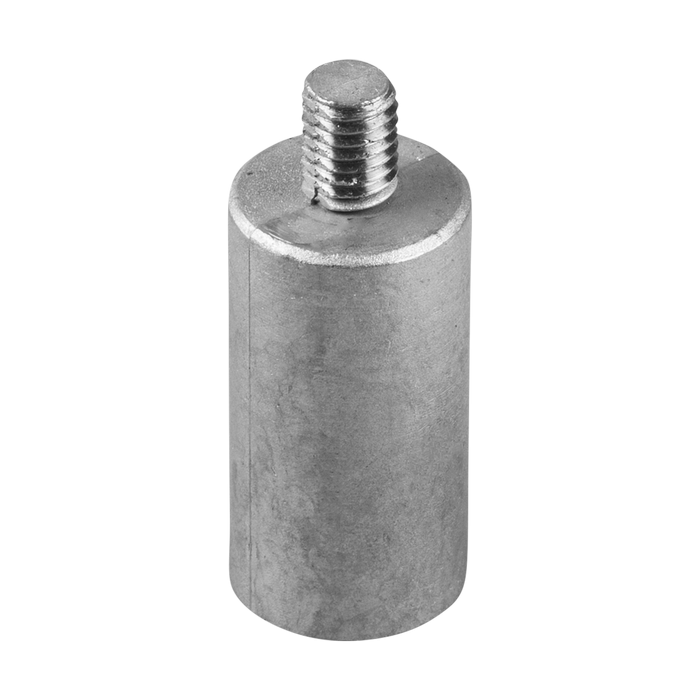

Tecnoseal 01114 Yamaha Zinc Pencil Anode Ø20 × 39 mm – M8 Thread
The Tecnoseal 01114 is a cylindrical zinc pencil anode designed for compatible Yamaha marine engine applications. Its sacrificial zinc construction helps protect metallic components exposed to water against galvanic corrosion, making it a replaceable component for engine corrosion protection and routine maintenance.
The anode features a solid cylindrical zinc body with an integrated threaded mounting stud. The body measures 20 mm (0.79 in) in diameter and 39 mm (1.54 in) in length. The M8 threaded stud extends 10 mm (0.39 in) beyond the anode body, providing a threaded connection for compatible Yamaha engine assemblies. The total weight is 0.09 kg (0.20 lbs).
This product is supplied as an individual zinc anode. Its dimensions and M8 thread specification should be checked against the existing component before installation to ensure compatibility with the intended Yamaha engine application.
Technical Specifications
Manufacturer Tecnoseal Product Code 01114 Product Type Pencil Anode Compatible Manufacturer Yamaha Material Zinc Body Shape Cylindrical Mounting Type Threaded Stud Quantity 1 Anode Weight 0.09 kg (0.20 lbs) EAN 8033837065197
Dimensions and Mounting Specifications
Body Diameter (Ø) 20 mm (0.79 in) Body Length (l) 39 mm (1.54 in) Threaded Stud Length (l1) 10 mm (0.39 in) Thread Size (m) M8
Key Features
- Zinc pencil anode for compatible Yamaha marine engine applications.
- Provides sacrificial protection against galvanic corrosion.
- Cylindrical zinc body measuring 20 mm in diameter and 39 mm in length.
- Integrated M8 threaded mounting stud.
- Threaded stud projection of 10 mm.
- Individual anode weighing 90 g.
- Designed as a replaceable corrosion protection component.
Compatibility and Installation
The Tecnoseal 01114 is intended for Yamaha engine applications requiring a zinc pencil anode with a 20 mm body diameter, 39 mm body length and M8 threaded stud. Verify the dimensions, thread size and mounting arrangement of the existing anode before ordering. The specific Yamaha engine models and OEM part numbers are not specified for this item.
-
