Tecnoseal Yamaha 70–85 HP & Mariner 40 HP Round Plate Anode Ø53 mm

Name: Tecnoseal Yamaha 70–85 HP & Mariner 40 HP Round Plate Anode Ø53 mm
SKU: Tecnoseal 01111

ID 1405442

$ 20.56

1-2 weeks delivery time

Type:

Zinc
Magnesium
Aluminium

Item:

80 g
50 g
210 g

The Tecnoseal 01111 series consists of sacrificial round plate anodes designed for Yamaha 70–85 HP and Mariner 40 HP outboard motors. Each anode features a cylindrical body with a central recessed mounting hole, helping protect submerged metallic components of compatible outboard engines against galvanic corrosion. The plate measures 53 mm in outside diameter, 15 mm in height and 8.5 mm in mounting hole diameter. Available in zinc (01111, 210 g), aluminium (01111AL, 80 g) and magnesium (01111MG, 50 g), all three versions share the same dimensions and mounting configuration. The design also corresponds to Tecnoseal catalogue reference 01302, providing an additional part number for identifying a suitable replacement.

Description
Ask a Question

Tecnoseal 01111 Yamaha 70–85 HP & Mariner 40 HP Round Plate Anode Ø53 mm

The Tecnoseal 01111 series consists of sacrificial round plate anodes designed for Yamaha 70–85 HP and Mariner 40 HP outboard motors. These replacement anodes help protect submerged metallic components of compatible outboard engines against galvanic corrosion by providing a sacrificial metal surface.

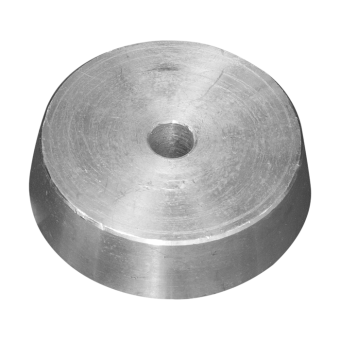

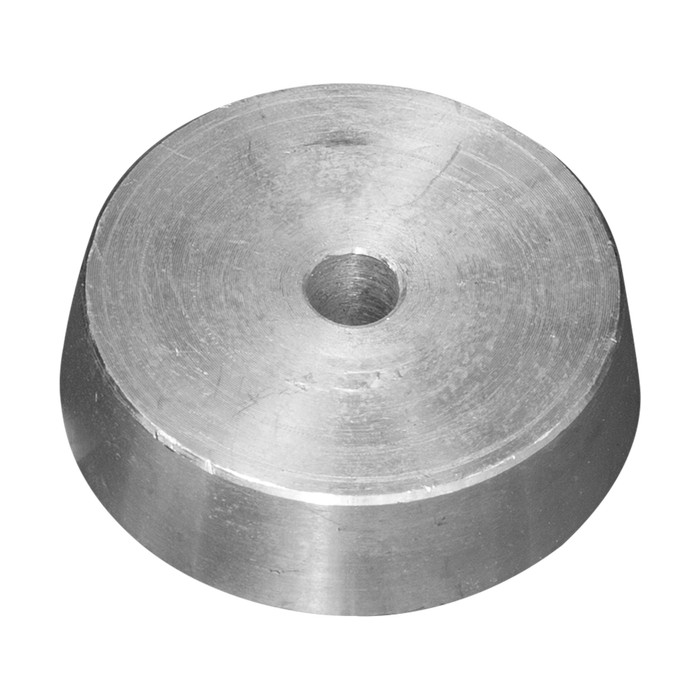

Each anode has a compact cylindrical shape with a central recessed mounting hole. The body measures 53 mm (2.09 in) in outside diameter and 15 mm (0.59 in) in height, with an 8.5 mm (0.33 in) central mounting hole. This round plate design allows the anode to be fitted to the corresponding mounting position on compatible outboard assemblies.

Three material versions are available: zinc, aluminium and magnesium. The zinc version, Tecnoseal 01111, weighs 210 g, the aluminium version 01111AL weighs 80 g, and the magnesium version 01111MG weighs 50 g. All three versions share identical dimensions and mounting geometry, allowing selection of the appropriate sacrificial material for the vessel's operating water conditions. The anode design is also catalogued under Tecnoseal reference 01302.

Technical Specifications

Manufacturer	Tecnoseal
Product Type	Round Plate Anode
Compatible Manufacturers	Yamaha, Mariner
Yamaha Compatibility	70–85 HP Outboards
Mariner Compatibility	40 HP Outboards
Available Materials	Zinc, Aluminium, Magnesium
Alternative Tecnoseal Reference	01302
Mounting Configuration	Central recessed mounting hole

Available Versions

Tecnoseal Code	Material	Weight	EAN
01111	Zinc	0.21 kg (0.46 lbs)	8033837065166
01111AL	Aluminium	0.08 kg (0.18 lbs)	8059617815646
01111MG	Magnesium	0.05 kg (0.11 lbs)	8059617815653

Dimensions and Mounting Specifications

Height (h)	15 mm (0.59 in)
Outside Diameter (Ø)	53 mm (2.09 in)
Mounting Hole Diameter (Ø1)	8.5 mm (0.33 in)

Compatibility and Cross-References

Yamaha Outboards: 70–85 HP
Mariner Outboards: 40 HP
Zinc Version: Tecnoseal 01111
Aluminium Version: Tecnoseal 01111AL
Magnesium Version: Tecnoseal 01111MG
Alternative Tecnoseal Reference: 01302

Key Features

Round sacrificial plate anode for compatible Yamaha and Mariner outboard motors.
Designed for Yamaha 70–85 HP and Mariner 40 HP applications.
Cylindrical body with a recessed central mounting hole.
Helps protect submerged metallic engine components against galvanic corrosion.
Available in zinc, aluminium and magnesium versions.
Outside diameter: 53 mm.
Overall height: 15 mm.
Mounting hole diameter: 8.5 mm.
Alternative Tecnoseal catalogue reference: 01302.

Compatibility Note: Before ordering, verify the outboard model, existing anode dimensions and mounting hole diameter. Select the appropriate anode material for the vessel's operating water conditions.
