ID
1404327
$ 147.41
1-2 weeks delivery time
Type:
- Zinc
- Magnesium
Item:
- 3 pcs

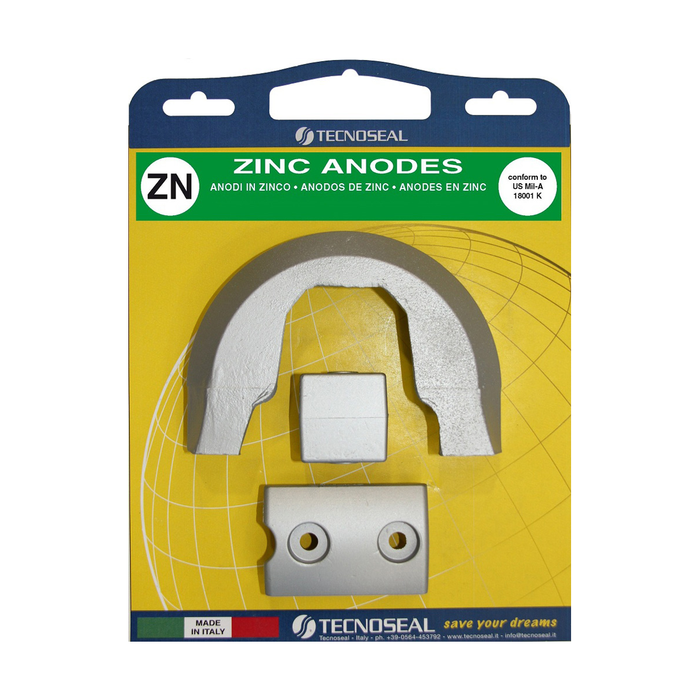

The Tecnoseal OMC Stringer Anode Kit is a three-piece sacrificial anode set designed for OMC Stringer marine drive applications. Available in zinc (KITOMCSTRINGER) and magnesium (KITOMCSTRINGERMG), each kit contains one horseshoe front gearcase anode (00906 or 00906MG), one gearcase block anode (00907 or 00907MG) and one propeller shaft housing anode (00917 or 00917MG). The components measure 145 × 104 × 25 mm, 25 × 40 × 41 mm and 75 × 50 × 22 mm, respectively. The zinc kit weighs 1.33 kg (2.93 lbs), while the magnesium kit weighs 0.44 kg (0.97 lbs). Standard branded box packaging is listed, with polybag or skin pack available upon request.
- Description
- Ask a Question
-
Tecnoseal OMC Stringer Anode Kit – 3-Piece Zinc or Magnesium Set
The Tecnoseal OMC Stringer Anode Kit is a three-piece sacrificial anode set designed for corrosion protection of compatible OMC Stringer marine drive components. It is available in two material versions: zinc (KITOMCSTRINGER) and magnesium (KITOMCSTRINGERMG). Each kit contains three different anodes for front gearcase, gearcase block and propeller shaft housing applications.
The zinc version contains Tecnoseal 00906, 00907 and 00917 and has a catalogue weight of 1.33 kg (2.93 lbs). The magnesium version contains Tecnoseal 00906MG, 00907MG and 00917MG and weighs 0.44 kg (0.97 lbs). Both kits include one piece of each specified component, for a total of three anodes per kit.
Technical Specifications
Manufacturer Tecnoseal Product Type OMC Stringer Anode Kit Application OMC Stringer Marine Drives Available Materials Zinc, Magnesium Kit Contents 3 Anodes Components Front Gearcase, Gearcase Block and Prop Shaft Housing Anodes
Available Kit Versions
Tecnoseal Kit Code Material Kit Weight KITOMCSTRINGER Zinc 1.33 kg (2.93 lbs) KITOMCSTRINGERMG Magnesium 0.44 kg (0.97 lbs)
Kit Contents
Component Zinc Kit Magnesium Kit Quantity Horseshoe Front Gearcase Anode Tecnoseal 00906 Tecnoseal 00906MG 1 pc Gearcase Block Anode Tecnoseal 00907 Tecnoseal 00907MG 1 pc Prop Shaft Housing Anode Tecnoseal 00917 Tecnoseal 00917MG 1 pc
Component Dimensions
Component Dimensions Mounting Specifications 00906 / 00906MG 145 × 104 × 25 mm Internal dimension (i): 113 mm; 1/4" UNC thread 00907 / 00907MG 25 × 40 × 41 mm Ø8 mm mounting hole 00917 / 00917MG 75 × 50 × 22 mm 40 mm mounting hole spacing; Ø18 mm and Ø7 mm
Component OEM References
- Tecnoseal 00906 / 00906MG: OMC 983494
- Tecnoseal 00907 / 00907MG: Johnson-Evinrude 393023 / 0436745
- Tecnoseal 00917 / 00917MG: Johnson-Evinrude 431708
Packaging Options
According to the Tecnoseal catalogue, the kit is available in branded box packaging. Polybag and skin pack formats are also available upon request.
- Branded box (standard packaging)
- Polybag (upon request)
- Skin pack for hanging display (upon request)
Key Features
- Three-piece sacrificial anode kit for OMC Stringer marine drive applications.
- Available in zinc and magnesium versions.
- Includes one front gearcase anode, one gearcase block anode and one prop shaft housing anode.
- Zinc kit components: Tecnoseal 00906, 00907 and 00917.
- Magnesium kit components: Tecnoseal 00906MG, 00907MG and 00917MG.
- Catalogue kit weight: 1.33 kg for zinc and 0.44 kg for magnesium.
- Polybag and skin pack packaging available upon request.
-
