Tecnoseal 338-60218-2 Tohatsu MFS 8-30HP Washer Anode Ø24x7 mm

ID 1405152

$ 15.96

1-2 weeks delivery time

Type:

Zinc
Magnesium
Aluminium

Item:

20 g
5 g
8 g

The Tecnoseal 01251 series includes sacrificial washer anodes designed for Tohatsu MFS 8-30HP four-stroke outboard engines, corresponding to Tohatsu OEM part number 338-60218-2. Each anode features a circular body with a countersunk central mounting hole, measuring 24 mm in outer diameter (Ø), 7 mm in height (h) and 7 mm in mounting hole diameter (Ø1). Available in zinc (01251, 20 g), aluminium (01251AL, 8 g) and magnesium (01251MG, 5 g), these anodes help protect compatible metallic outboard components against galvanic corrosion. Additional Tecnoseal references: 00824, 01109, 01128, 01258, 01400 and 01756.

Description
Ask a Question

Tecnoseal 338-60218-2 Tohatsu MFS 8-30HP Washer Anode Ø24x7 mm

The Tecnoseal 01251 series includes sacrificial washer anodes designed for Tohatsu MFS 8-30HP four-stroke outboard engines. These anodes correspond to Tohatsu OEM part number 338-60218-2 and help protect compatible metallic outboard components against galvanic corrosion.

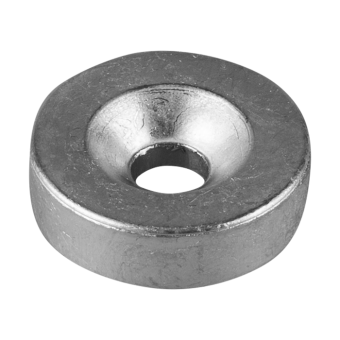

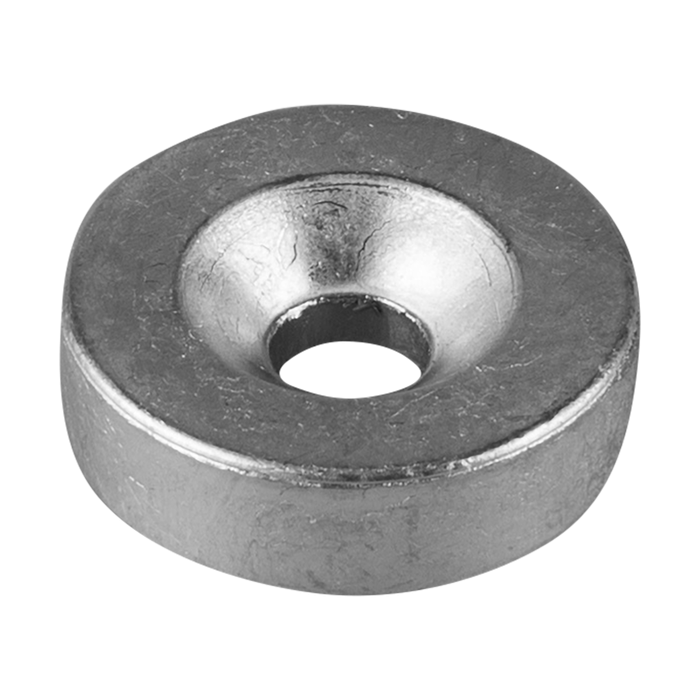

Each anode features a compact circular washer-shaped body with a countersunk central mounting hole. It measures 24 mm in outer diameter and 7 mm in height, with a 7 mm mounting hole diameter. Three material versions are available: zinc, aluminium and magnesium. All versions share identical dimensions but have different weights.

Technical Specifications

Manufacturer	Tecnoseal
Product Type	Washer Anode
Engine Manufacturer	Tohatsu
Compatible Engine Series	MFS 8-30HP Four-Stroke
Tohatsu OEM Part Number	338-60218-2
Available Materials	Zinc, Aluminium, Magnesium
Height (h)	7 mm (0.28 in)
Outer Diameter (Ø)	24 mm (0.94 in)
Mounting Hole Diameter (Ø1)	7 mm (0.28 in)

Available Variants

Tecnoseal Code	Material	Weight
01251	Zinc	0.020 kg (0.04 lbs)
01251AL	Aluminium	0.008 kg (0.02 lbs)
01251MG	Magnesium	0.005 kg (0.01 lbs)

Compatibility and References

Engine Manufacturer: Tohatsu
Compatible Engine Series: MFS 8-30HP Four-Stroke Outboards
Application: Outboard Engine Corrosion Protection
Tohatsu OEM Reference: 338-60218-2
Zinc Version: Tecnoseal 01251
Aluminium Version: Tecnoseal 01251AL
Magnesium Version: Tecnoseal 01251MG
Additional Tecnoseal References: 00824, 01109, 01128, 01258, 01400, 01756

Key Features

Sacrificial washer anode for Tohatsu MFS 8-30HP four-stroke outboard engines.
Available in zinc, aluminium and magnesium.
Helps protect compatible metallic outboard components against galvanic corrosion.
Compact circular body with a countersunk central mounting hole.
Outer diameter: 24 mm.
Height: 7 mm.
Mounting hole diameter: 7 mm.
Identical dimensions across all three material versions.
Corresponds to Tohatsu OEM part number 338-60218-2.
