Tecnoseal Technodrive Sea Prop 60 Saildrive Anode Ø102 mm

Name: Tecnoseal Technodrive Sea Prop 60 Saildrive Anode Ø102 mm
SKU: Tecnoseal 02516

ID 1405144

$ 74.61

1-2 weeks delivery time

Type:

Zinc
Magnesium
Aluminium

Item:

150 g
240 g
610 g

The Tecnoseal 02516 series includes sacrificial collar anodes for Technodrive Sea Prop 60 saildrives, also listed for Beta Marine, Solé Diesel and Nanni Diesel saildrive installations. Each anode features a circular body with mounting lugs and fastening holes, measuring 140 mm in overall length (l), 24 mm in height (h), 80 mm in dimension i, 102 mm in outer diameter (Ø) and 60 mm in inner diameter (Ø1). Available in zinc (02516, 0.61 kg), aluminium (02516AL, 0.24 kg) and magnesium (02516MG, 0.15 kg), these anodes provide sacrificial corrosion protection for compatible saildrive components.

Description
Ask a Question

Tecnoseal Technodrive Sea Prop 60 Saildrive Anode Ø102 mm

The Tecnoseal 02516 series includes sacrificial collar anodes designed for Technodrive Sea Prop 60 saildrives. According to the Tecnoseal catalogue, these anodes are also listed for Beta Marine, Solé Diesel and Nanni Diesel saildrive installations. They help protect compatible submerged metallic saildrive components against galvanic corrosion.

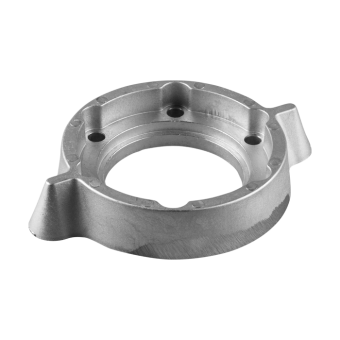

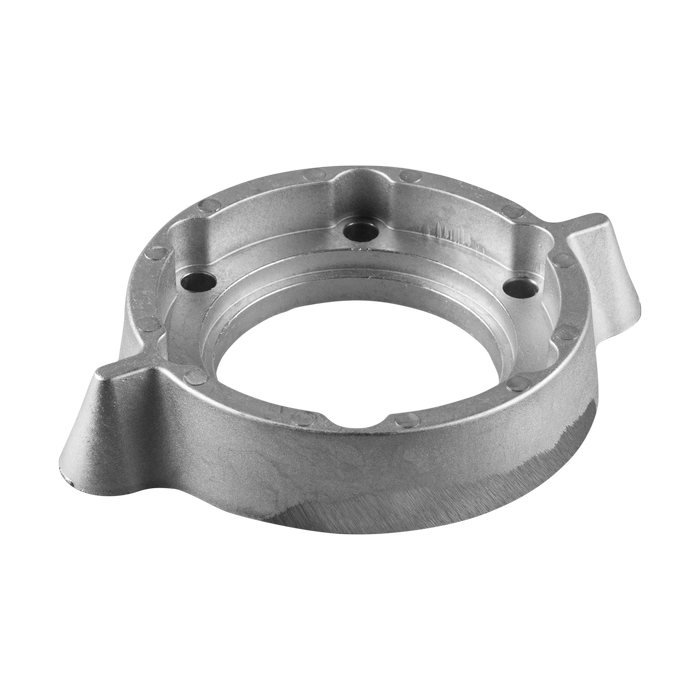

The anode features a circular collar-shaped body with mounting lugs and fastening holes. It measures 140 mm in overall length, 24 mm in height, 102 mm in outer diameter and 60 mm in inner diameter. The additional dimension i is 80 mm. Three material versions are available: zinc, aluminium and magnesium, all sharing the same dimensions.

Technical Specifications

Manufacturer	Tecnoseal
Product Type	Saildrive Collar Anode
Saildrive Manufacturer	Technodrive
Compatible Saildrive	Sea Prop 60
Other Listed Applications	Beta Marine, Solé Diesel, Nanni Diesel saildrives
Available Materials	Zinc, Aluminium, Magnesium
Overall Length (l)	140 mm (5.51 in)
Height (h)	24 mm (0.94 in)
Dimension (i)	80 mm (3.15 in)
Outer Diameter (Ø)	102 mm (4.02 in)
Inner Diameter (Ø1)	60 mm (2.36 in)

Available Variants

Tecnoseal Code	Material	Weight
02516	Zinc	0.61 kg (1.34 lbs)
02516AL	Aluminium	0.24 kg (0.53 lbs)
02516MG	Magnesium	0.15 kg (0.33 lbs)

Compatibility and References

Primary Application: Technodrive Sea Prop 60 Saildrive
Other Listed Applications: Beta Marine, Solé Diesel and Nanni Diesel saildrives
Zinc Version: Tecnoseal 02516
Aluminium Version: Tecnoseal 02516AL
Magnesium Version: Tecnoseal 02516MG

Key Features

Sacrificial collar anode for Technodrive Sea Prop 60 saildrives.
Also listed for compatible Beta Marine, Solé Diesel and Nanni Diesel saildrive installations.
Available in zinc, aluminium and magnesium.
Helps protect submerged metallic saildrive components against galvanic corrosion.
Circular collar-shaped body with mounting lugs and fastening holes.
Overall length: 140 mm.
Height: 24 mm.
Outer diameter: 102 mm.
Inner diameter: 60 mm.
Additional dimension i: 80 mm.
Identical dimensions across all three material versions.
